Артикул: 163366

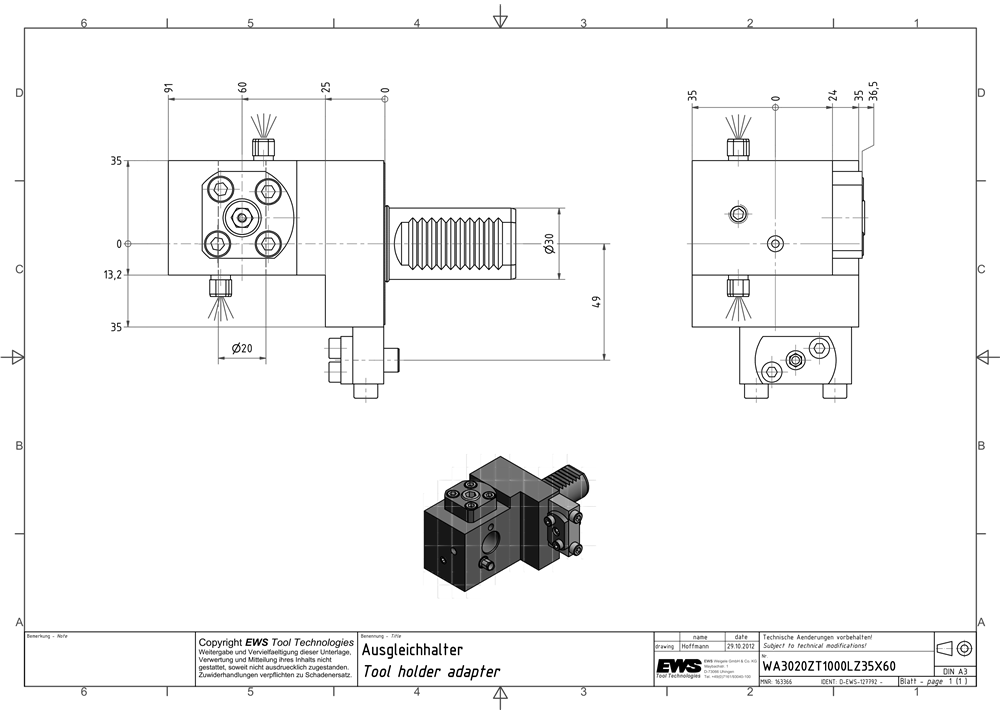

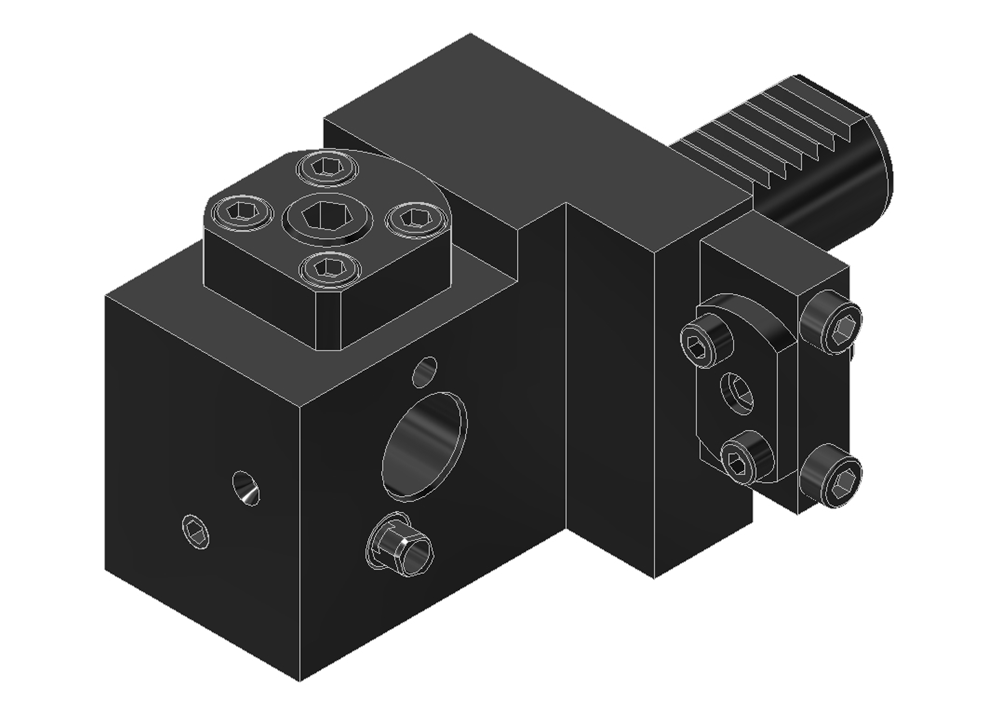

Adaptor VDI 20 adaptor Weight: 2.844
| Cantilever length (LPR) | 91.00 mm |
|---|---|
| Functional length (LF) | 60.00 mm |
| Functional width (WF) | 35.00 mm |
| Product group | Tool holders and adapter |
| Product type | Tool adapter |
| Shank size | VDI30 |
| Interface size | VDI20 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | Pin eccentrical adjustable |
