Артикул: 157657

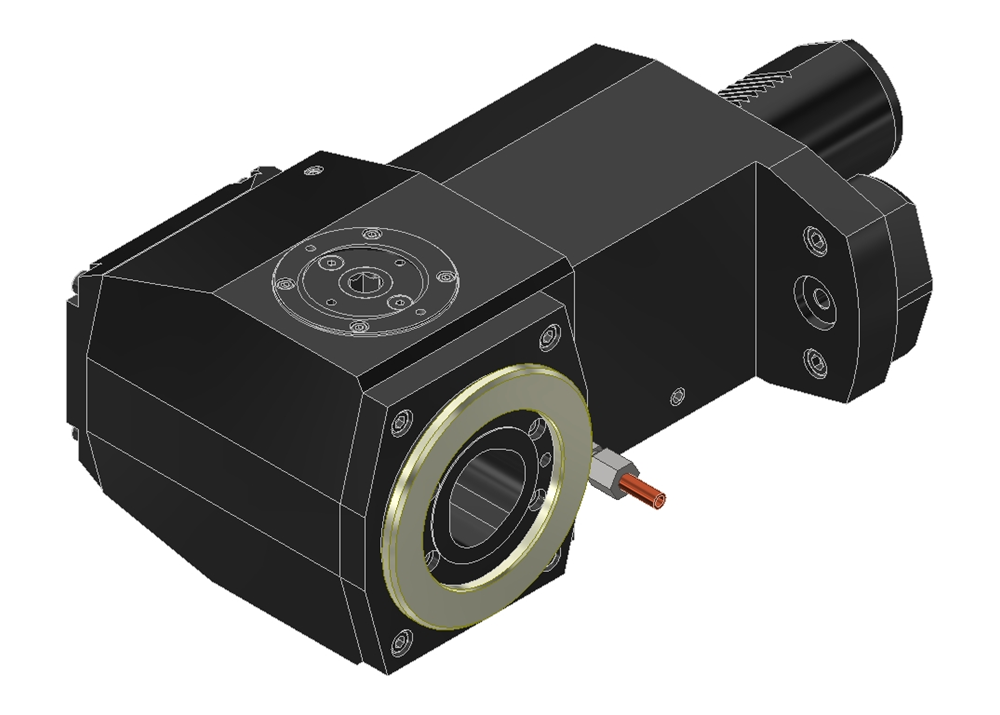

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
EWS.PSC — standardized interface
- Size PSC 50:
- Repeatability ≤ 0.01mm
- Tightening torque 70 Nm
- Clamping force 27 kN
- Standardized adapters available worldwide
- High force transmission
- Easy handling
- Interface for driven and static tools
- Extra short adapters without gripper groove available — talk to us!
Internal cooling
Equipped with high-quality seal kits that can withstand coolant pressure of up to 70 bar.
- 70 bar maximum coolant pressure
- Not capable of dry running
- Change between external and internal cooling possible
- Coolant must be applied to the tool at all times
| Functional length (LF) | 125.00 mm |
|---|---|
| Total height (OAH) | 110.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Shank size | VDI50 shaft rotated 30° |
| Interface size | PSC 50 |
| Coolant intake | Inner and outer cooling |
| Coupling | Surface coupling |
