Артикул: 129094

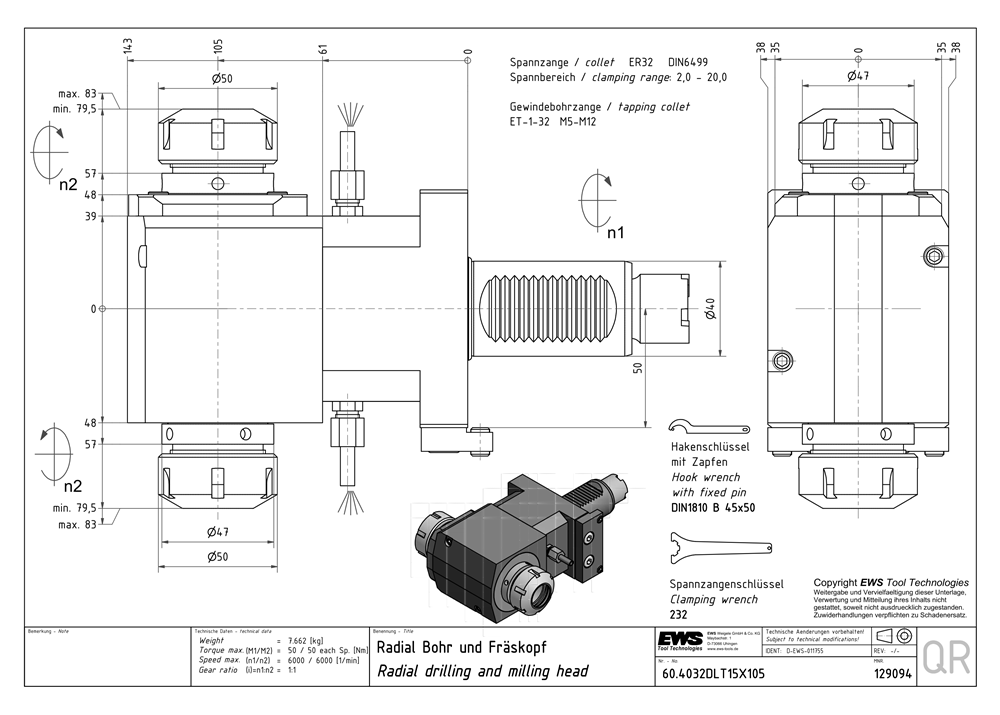

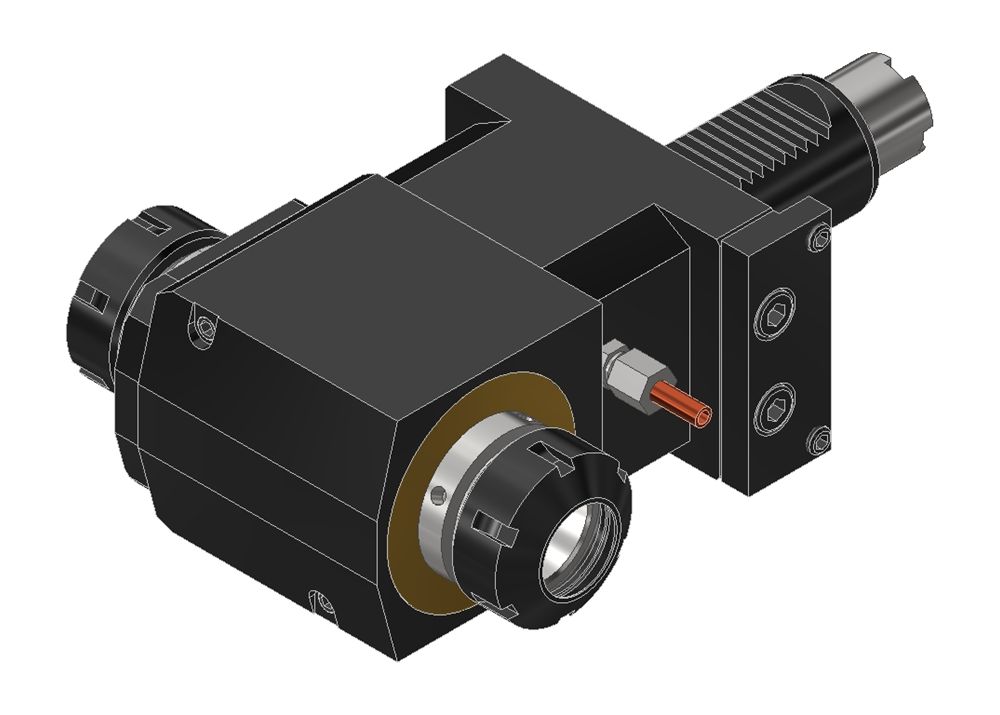

Radial drilling and milling head double i = 1:1 Collet RD/ER 32 470 E (2-20) Transmission: 1:1 Torque: 50 / 50 each Sp. Spindlespeed: 6000 / 6000 Weight: 7.650
| Total height (OAH) | 76.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 2 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 0.00 Nm |
| Shank size | VDI40 |
| Interface size | Collet ER32 |
| Coolant intake | Outer cooling |
| Coupling | Claw coupling |
| Alignment system | Stop bar adjustable |
