60.60KM40NLHSD10 — Radial drilling and milling head, Adaptor KM40, Mori Seiki NL-serie, Block tool, External coolant supply, i =1:1 direction of rotation inver., Highspeed,

Артикул: 190102

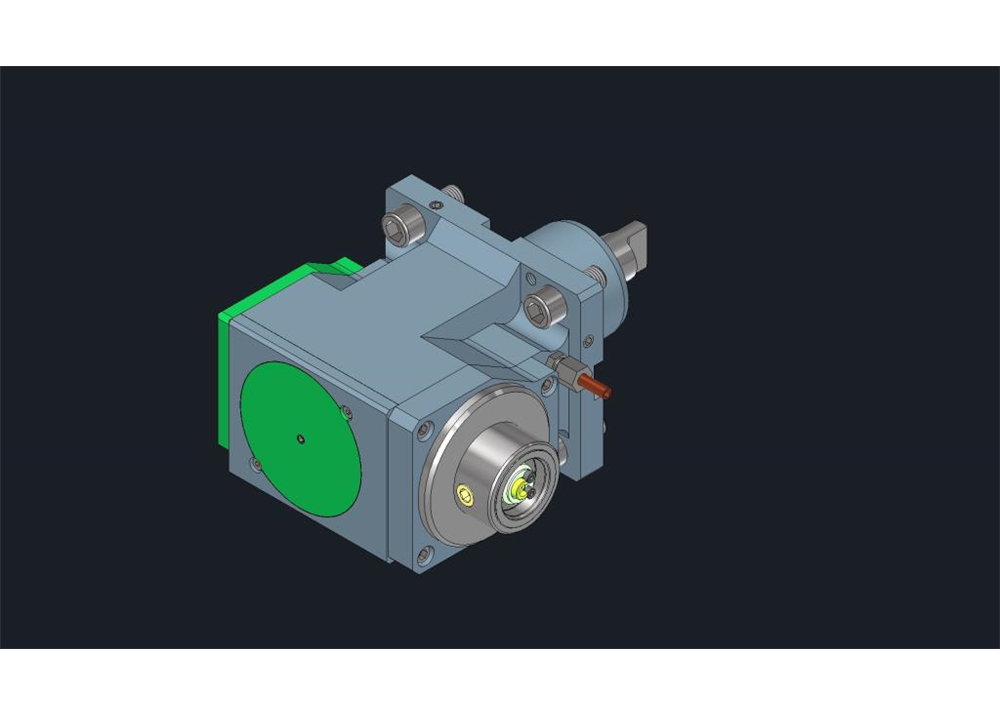

Radial drilling and milling head

Premium class tool system for highest production efficiency — Made in Germany

Highspeed

  • High precision spindle bearings
  • Lower heat generation at high speeds
  • Not suitable for heavy machining
  • Observe maximum permissible speed


Документация

Functional length (LF) 90.00 mm
Total height (OAH) 89.00 mm
Number of holders, workpiece side (CCONWS) 1
Max. torque (TQX) 100.00 Nm
Max. rotational speed, input (RPMX) 10000 min-1
Transmission relation (TR) 1:1
Transmission torque, output drive 1 (DINH201) 100.00 Nm
Shank size BMT60 DMG Mori
Interface size KM 40
Coolant intake Outer cooling
Coupling Surface coupling
Alignment system BMT — keyway

Article number190102
Product weight10.289 KG
