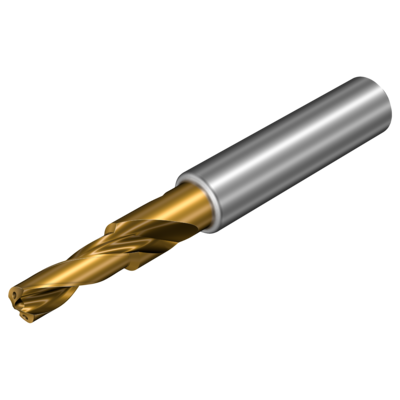

2S-TE90AP-09
90 End mills with high positive two helical cutting edgesof APKT 09 inserts
| Designation | DC | CICT | DCONMS | OAL | LH | APMX | CSP | Fig. | Shank | WT | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2S-TE90AP 110-W10-09 | 10.00 | 1 | 10.00 | 80.00 | 25.00 | 8.80 | X | 1 | W | 0.04 | APKT 09T3 PER-EM |
| 2S-TE90AP 110-W10-09-C | 10.00 | 1 | 10.00 | 80.00 | 25.00 | 8.80 | O | 1 | W | 0.04 | APKT 09T3 PER-EM |
| 2S-TE90AP 112-W12-09 | 12.00 | 1 | 12.00 | 80.00 | 25.00 | 8.80 | X | 1 | W | 0.06 | APKT 09T3 PER-EM |
| 2S-TE90AP 112-W16-09-C | 12.00 | 1 | 16.00 | 80.00 | 26.00 | 8.80 | O | 1 | W | 0.10 | APKT 09T3 PER-EM |
| 2S-TE90AP 112-11-09-L150 | 12.00 | 1 | 11.00 | 150.00 | 25.00 | 8.80 | X | 2 | W | 0.11 | APKT 09T3 PER-EM |
| 2S-TE90AP 114-W12-09 | 14.00 | 1 | 12.00 | 80.00 | 25.00 | 8.80 | X | 1 | W | 0.07 | APKT 09T3 PER-EM |
| 2S-TE90AP 216-W16-09 | 16.00 | 2 | 16.00 | 90.00 | 25.00 | 8.80 | X | 1 | W | 0.13 | APKT 09T3 PER-EM |
| 2S-TE90AP 216-W16-09-C | 16.00 | 2 | 16.00 | 90.00 | 25.00 | 8.80 | O | 1 | W | 0.12 | APKT 09T3 PER-EM |
| 2S-TE90AP 216-15-09-L | 16.00 | 2 | 15.00 | 170.00 | 30.00 | 8.80 | X | 2 | C | 0.22 | APKT 09T3 PER-EM |
| 2S-TE90AP 216-16-09-L | 16.00 | 2 | 16.00 | 145.00 | 30.00 | 8.80 | X | 2 | C | 0.22 | APKT 09T3 PER-EM |
| 2S-TE90AP 216-16-09-L200 | 16.00 | 2 | 16.00 | 200.00 | 25.00 | 8.80 | X | 2 | C | 0.30 | APKT 09T3 PER-EM |
| 2S-TE90AP 217-16-09-L | 17.00 | 2 | 16.00 | 180.00 | 25.00 | 8.80 | X | 2 | C | 0.27 | APKT 09T3 PER-EM |
| 2S-TE90AP 217-16-09-L-C | 17.00 | 2 | 16.00 | 180.00 | 25.00 | 8.80 | O | 2 | C | 0.27 | APKT 09T3 PER-EM |
| 2S-TE90AP 218-W16-09 | 18.00 | 2 | 16.00 | 90.00 | 25.00 | 8.80 | X | 1 | W | 0.13 | APKT 09T3 PER-EM |
| 2S-TE90AP 218-W16-09-C | 18.00 | 2 | 16.00 | 90.00 | 25.00 | 8.80 | O | 1 | W | 0.13 | APKT 09T3 PER-EM |
| 2S-TE90AP 220-19-09-L | 20.00 | 2 | 19.00 | 170.00 | 25.00 | 8.80 | X | 2 | C | 0.36 | APKT 09T3 PER-EM |
| 2S-TE90AP 220-20-09-L | 20.00 | 2 | 20.00 | 170.00 | 40.00 | 8.80 | X | 2 | C | 0.39 | APKT 09T3 PER-EM |
| 2S-TE90AP 320-W20-09 | 20.00 | 3 | 20.00 | 110.00 | 30.00 | 8.80 | X | 1 | W | 0.25 | APKT 09T3 PER-EM |
| 2S-TE90AP 320-W20-09-C | 20.00 | 3 | 20.00 | 110.00 | 30.00 | 8.80 | O | 1 | W | 0.23 | APKT 09T3 PER-EM |
| 2S-TE90AP 221-20-09-L | 21.00 | 2 | 20.00 | 200.00 | 25.00 | 8.80 | X | 2 | C | 0.48 | APKT 09T3 PER-EM |
| 2S-TE90AP 322-W20-09 | 22.00 | 3 | 20.00 | 110.00 | 30.00 | 8.80 | X | 1 | W | 0.25 | APKT 09T3 PER-EM |
| 2S-TE90AP 322-W20-09-C | 22.00 | 3 | 20.00 | 110.00 | 30.00 | 8.80 | O | 1 | W | 0.25 | APKT 09T3 PER-EM |
| 2S-TE90AP 225-24-09-L | 25.00 | 2 | 24.00 | 210.00 | 28.00 | 8.80 | X | 2 | C | 0.72 | APKT 09T3 PER-EM |
| 2S-TE90AP 225-25-09-L | 25.00 | 2 | 25.00 | 210.00 | 40.00 | 8.80 | X | 2 | C | 0.77 | APKT 09T3 PER-EM |
| 2S-TE90AP 325-W20-09 | 25.00 | 3 | 20.00 | 110.00 | 28.00 | 8.80 | X | 1 | W | 0.27 | APKT 09T3 PER-EM |
| 2S-TE90AP 325-W20-09-C | 25.00 | 3 | 20.00 | 110.00 | 30.00 | 8.80 | O | 1 | W | 0.26 | APKT 09T3 PER-EM |
| 2S-TE90AP 325-W25-09 | 25.00 | 3 | 25.00 | 110.00 | 30.00 | 8.80 | X | 1 | W | 0.38 | APKT 09T3 PER-EM |
| 2S-TE90AP 425-W20-09-C | 25.00 | 4 | 20.00 | 110.00 | 30.00 | 8.80 | O | 1 | W | 0.26 | APKT 09T3 PER-EM |
| 2S-TE90AP 226-25-09-L | 26.00 | 2 | 25.00 | 250.00 | 40.00 | 8.80 | X | 2 | C | 0.93 | APKT 09T3 PER-EM |
| 2S-TE90AP 430-W25-09 | 30.00 | 4 | 25.00 | 130.00 | 32.00 | 8.80 | X | 1 | W | 0.49 | APKT 09T3 PER-EM |
| 2S-TE90AP 430-W25-09-C | 30.00 | 4 | 25.00 | 130.00 | 32.00 | 8.80 | O | 1 | W | 0.47 | APKT 09T3 PER-EM |
| 2S-TE90AP 232-32-09-L | 32.00 | 2 | 32.00 | 250.00 | 65.00 | 8.80 | X | 2 | C | 1.50 | APKT 09T3 PER-EM |
| 2S-TE90AP 432-W25-09 | 32.00 | 4 | 25.00 | 130.00 | 32.00 | 8.80 | X | 1 | W | 0.51 | APKT 09T3 PER-EM |
| 2S-TE90AP 432-W25-09-C | 32.00 | 4 | 25.00 | 130.00 | 32.00 | 8.80 | O | 1 | W | 0.48 | APKT 09T3 PER-EM |
| 2S-TE90AP 532-W25-09-C | 32.00 | 5 | 25.00 | 130.00 | 32.00 | 8.80 | O | 1 | W | 0.48 | APKT 09T3 PER-EM |
| 2S-TE90AP 333-32-09-L | 33.00 | 3 | 32.00 | 250.00 | 40.00 | 8.80 | X | 2 | C | 1.51 | APKT 09T3 PER-EM |
| 2S-TE90AP 240-32-09-L | 40.00 | 2 | 32.00 | 250.00 | 32.00 | 8.80 | X | 2 | C | 1.60 | APKT 09T3 PER-EM |
| 2S-TE90AP 540-W32-09 | 40.00 | 5 | 32.00 | 130.00 | 32.00 | 8.80 | X | 1 | W | 0.83 | APKT 09T3 PER-EM |
| 2S-TE90AP 540-W32-09-C | 40.00 | 5 | 32.00 | 130.00 | 32.00 | 8.80 | O | 1 | W | 0.80 | APKT 09T3 PER-EM |
| 2S-TE90AP 640-W32-09 | 40.00 | 6 | 32.00 | 130.00 | 32.00 | 8.80 | X | 1 | W | 0.82 | APKT 09T3 PER-EM |
