Артикул: 172164

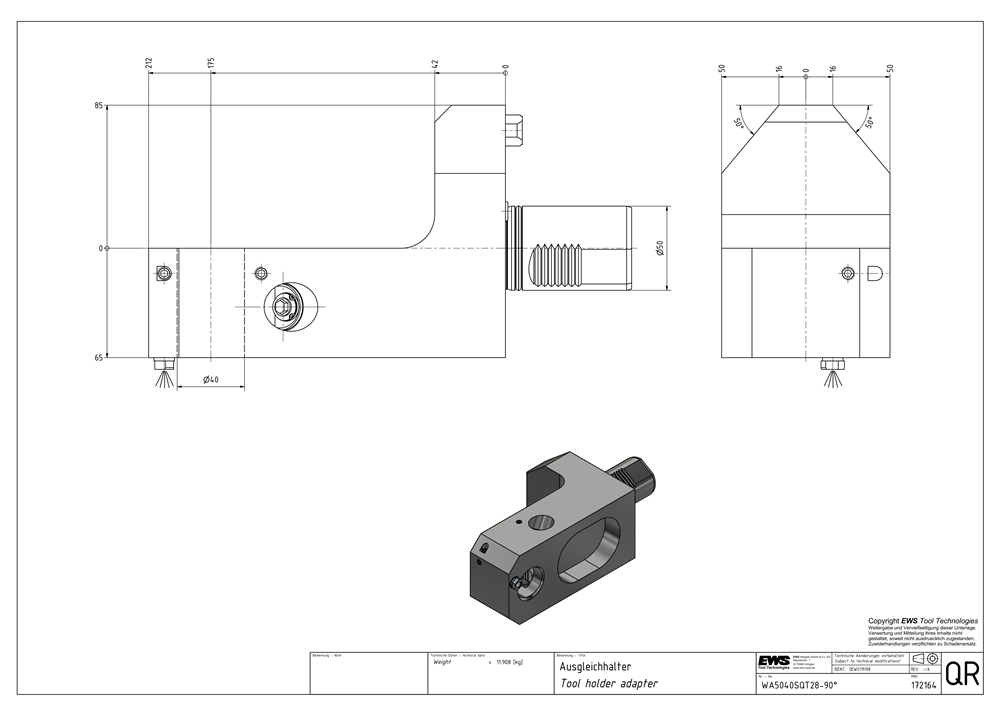

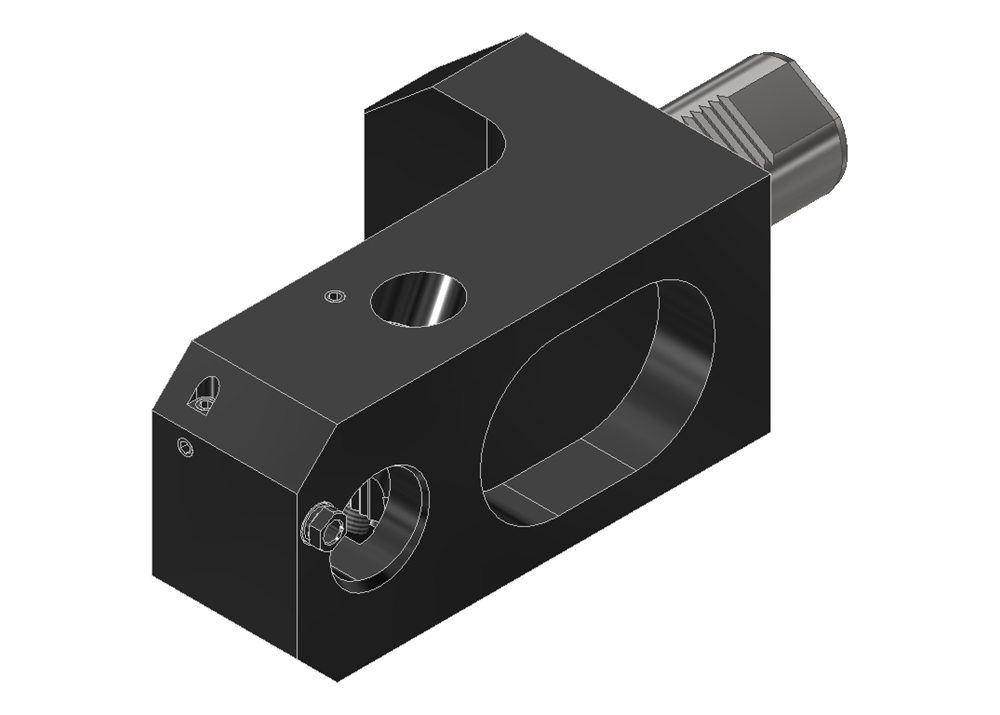

Adaptor VDI 40 adaptor Weight: 0.000
| Cantilever length (LPR) | 212.00 mm |
|---|---|
| Functional length (LF) | 175.00 mm |
| Functional width (WF) | 65.00 mm |
| Product group | Tool holders and adapter |
| Product type | Tool adapter |
| Shank size | VDI50 shaft rotated 30° |
| Interface size | VDI40 |
| Tool orientation | 90° |
| Alignment system | Pin eccentrical adjustable |
