Артикул: S01024

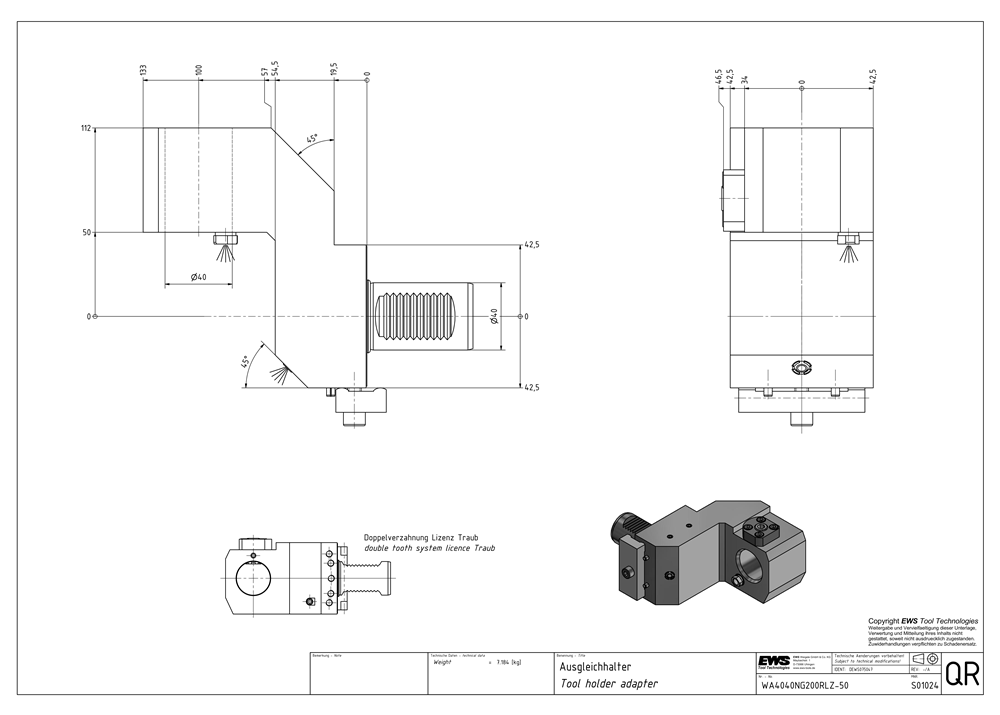

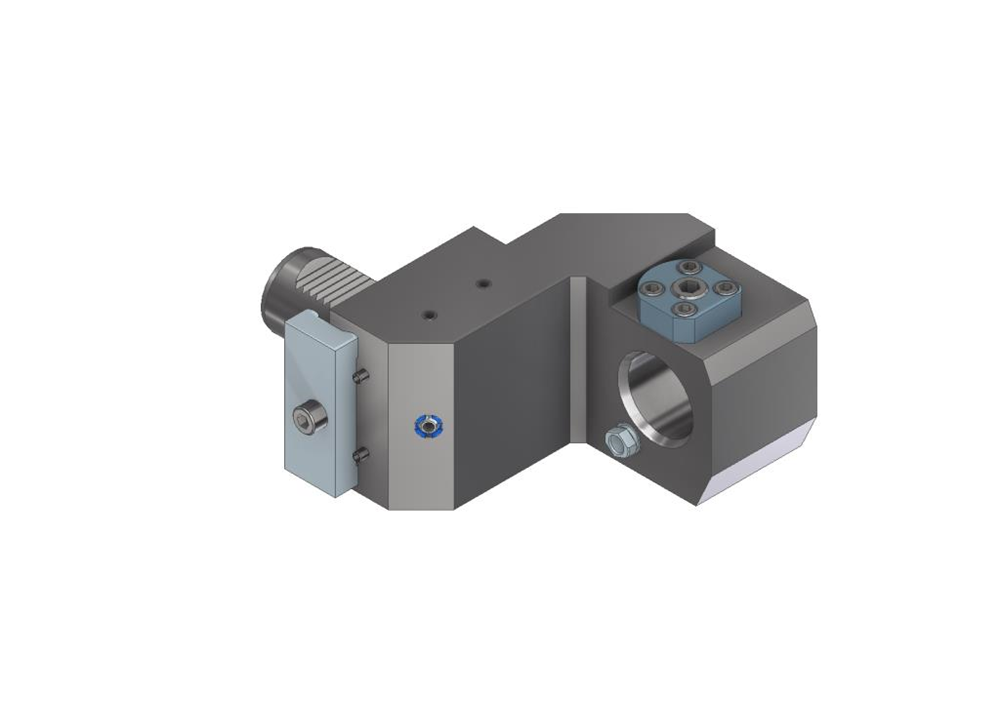

Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Cantilever length (LPR) | 133.00 mm |
|---|---|
| Functional length (LF) | 100.00 mm |
| Functional width (WF) | 50.00 mm |
| Product group | Tool holders and adapter |
| Shank size | VDI40 |
| Tool orientation | 90° |
| Alignment system | Clamping bar |
