Артикул: 157618

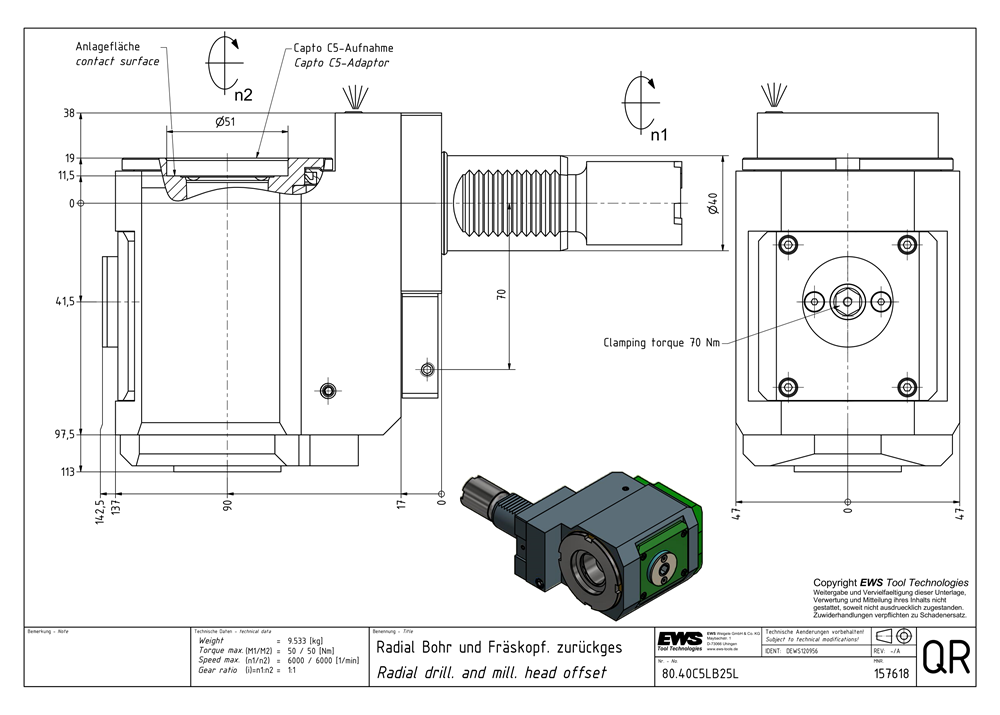

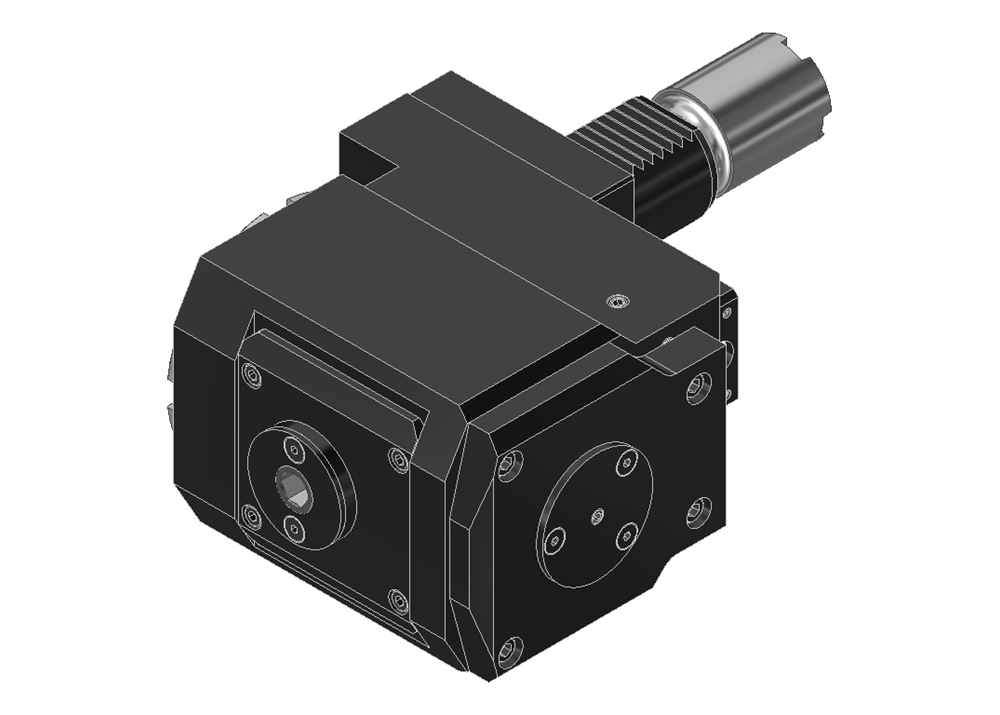

Radial drilling and milling head reset
Premium class tooling system for highest production efficiency — Made in Germany
EWS.PSC — standardized interface
- Size PSC 50:
- Repeatability ≤ 0.01mm
- Tightening torque 70 Nm
- Clamping force 27 kN
- Standardized adapters available worldwide
- High force transmission
- Easy handling
- Interface for driven and static tools
- Extra short adapters without gripper groove available — talk to us!
| Functional length (LF) | 90.00 mm |
|---|---|
| Total height (OAH) | 94.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 50.00 Nm |
| Shank size | VDI40 |
| Interface size | PSC 50 |
| Coolant intake | Outer cooling |
| Coupling | Claw coupling |
| Alignment system | Pin (Bar) |
