Артикул: 162181

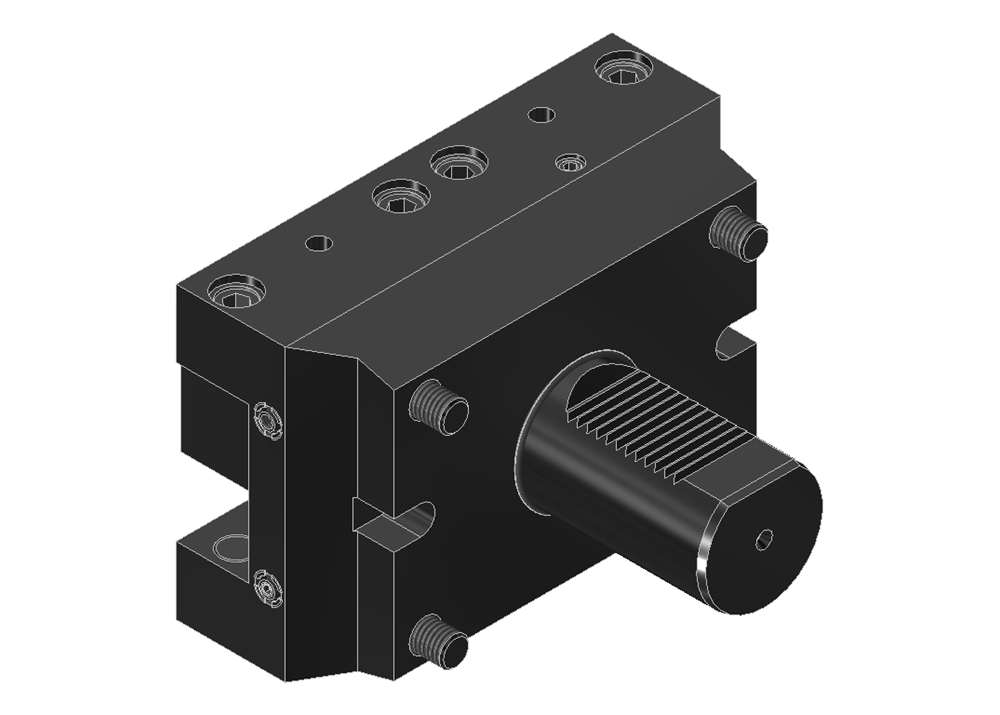

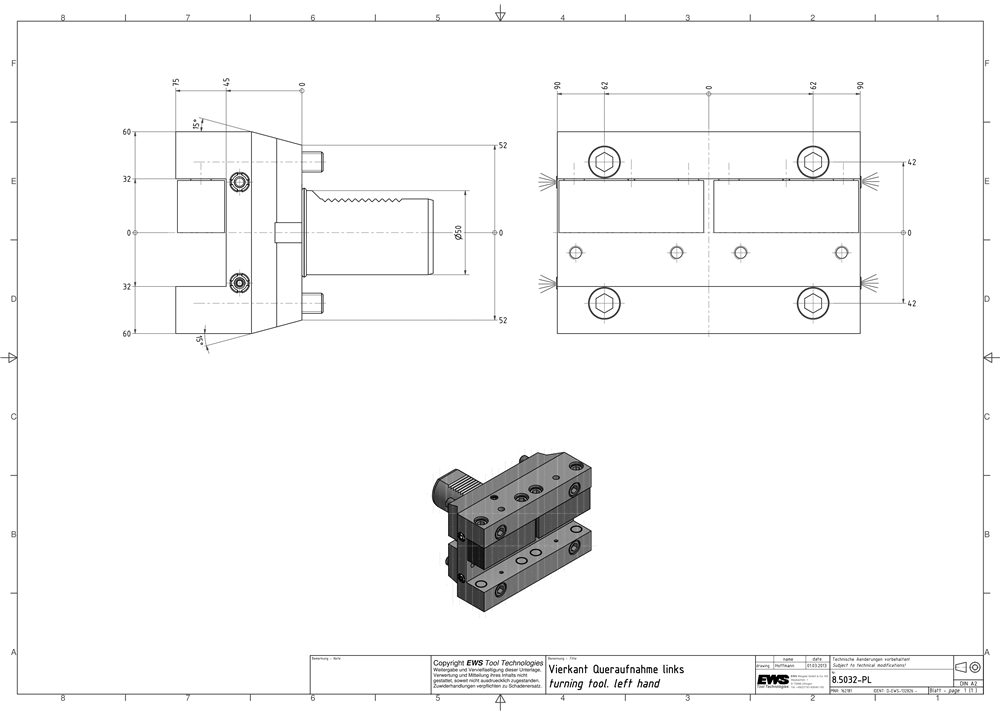

Square cross holder left form B2
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Tool holder is applicable to the main spindle and counter spindle.
- Two tools can be clamped simultaneously.
- Pressure plates are convertible.
- The conversion allows the position of the cutting edge to be changed between overhead and standard.
| Cantilever length (LPR) | 75.00 mm |
|---|---|
| Functional length (LF) | 45.00 mm |
| Function height (HF) | 32.00 mm |
| Clamping length max. (LSCX) | 180.00 mm |
| Direction tool interface (HAND) | N |
| Number of holders workpiece side (CCONWS) | 2 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI50 Proline |
| Interface size | Shank 32×32 |
| Convertible | yes — pressure plate |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
