Артикул: 121147

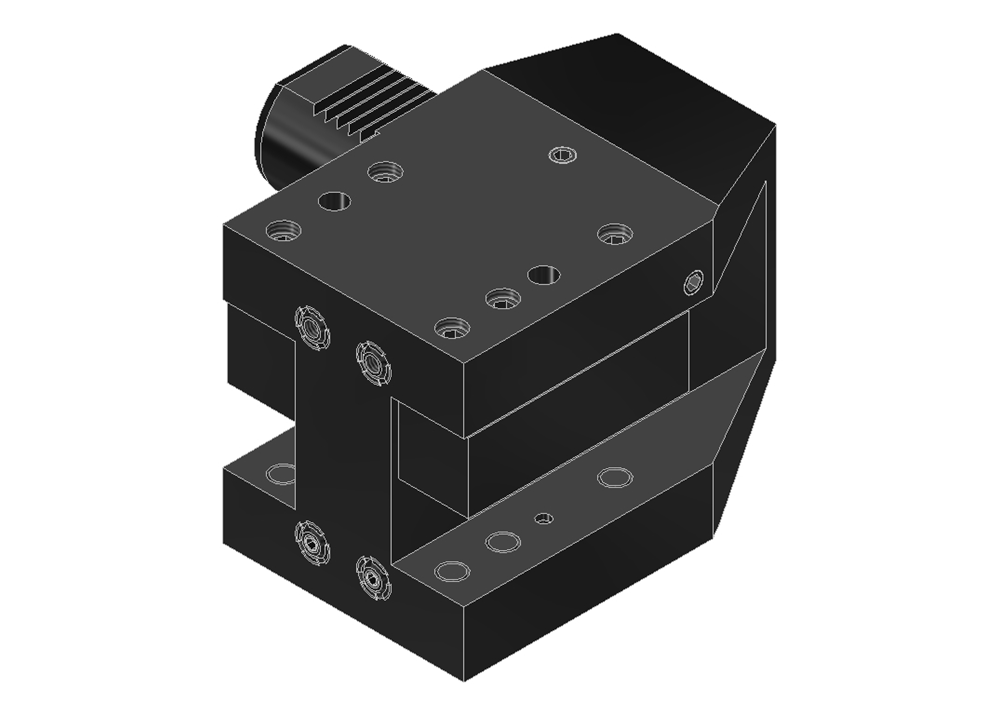

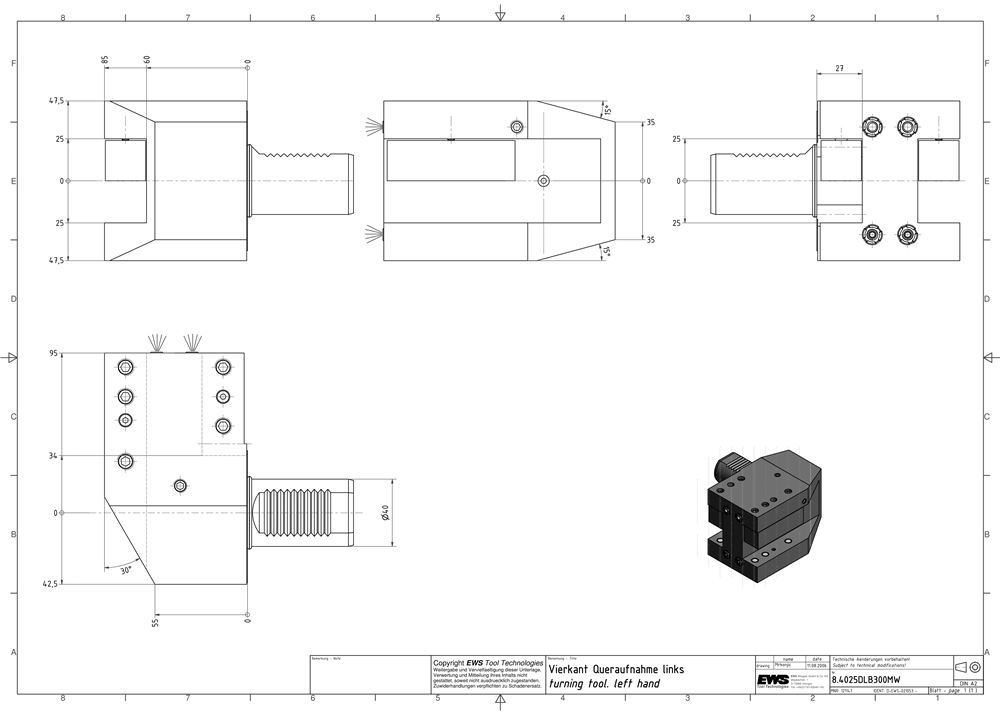

Square cross holder, left, form B2
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Tool holder can only be used on one side.
- A turning tool can be clamped.
- Pressure plate is convertible.
- The conversion allows the position of the cutting edge to be changed between overhead and standard.
| Direction tool interface (HAND) | L |
|---|---|
| Number of holders, workpiece side (CCONWS) | 1 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI40 |
| Interface size | Shank 25×25 |
| Convertible | yes — pressure plate |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
