Артикул: 157619

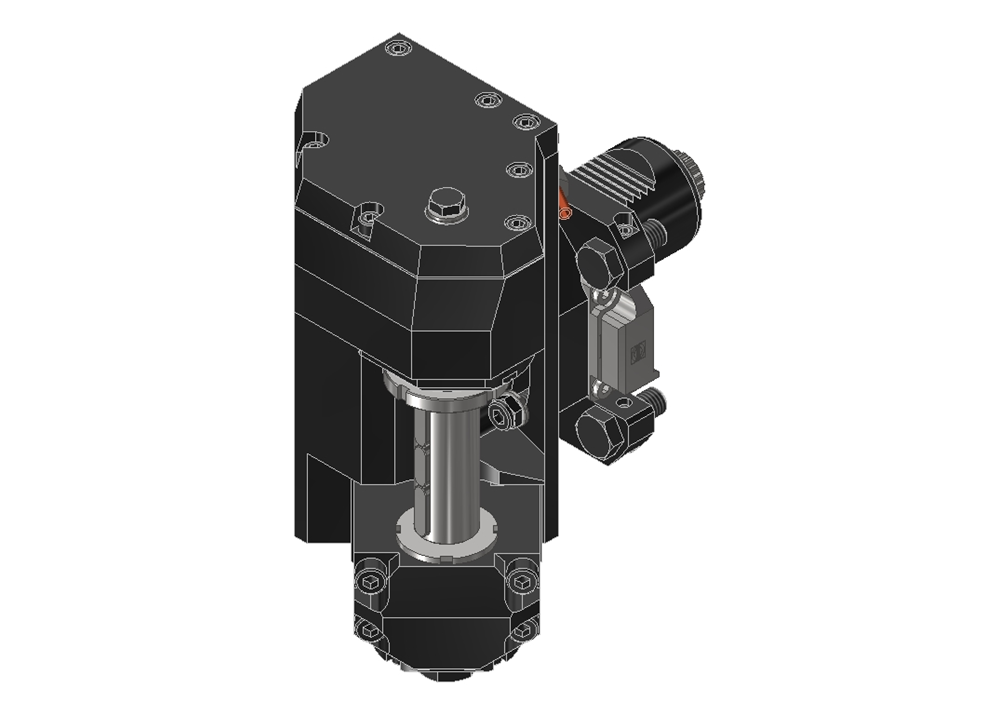

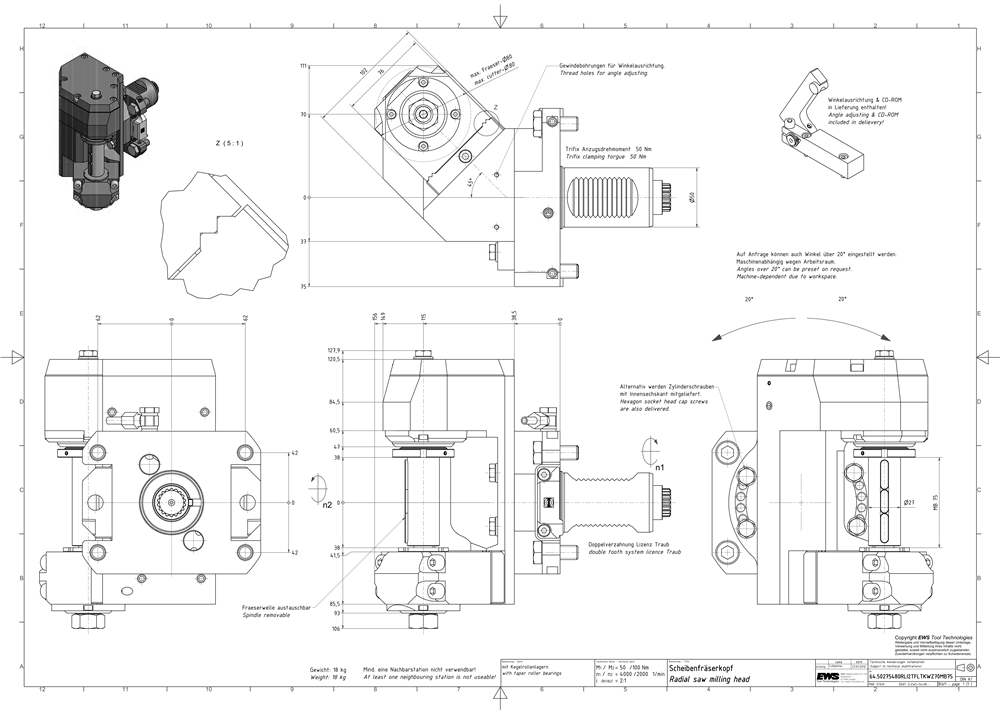

Module cutters — high-precision gear cutting
Module cutters make it possible to produce external gears on machines that do not have a Y-B axis. Thus a B axis can be substituted with a comparatively small investment. Meanwhile even gears up to module 3 can be produced on VDI40/BMT65/BMT75 machines.
- Milling head steplessly adjustable by 360
- Gearings up to module 3 (depending on design)
- Spindle for holding the cutter can be exchanged without problems (Ø8-Ø32)
- Cycle for gear milling must be enabled (coupling of tool drive with C-axis)
- Neighboring stations can be omitted
Premium class tool system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
Trifix© (TF) alignment system
- Tool completely preset
- Faster setup of your machine
- Repeatability < 6µm at 200mm throat depth
- Positioning accuracy of 0.01mm from one station to another
| Number of holders workpiece side (CCONWS) | 1 |
|---|---|
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 4000 min-1 |
| Transmission relation (TR) | 2:1 |
| Transmission torque output drive 1 (DINH201) | 100.00 Nm |
| Shank size | VDI50 |
| Interface size | Cutting arbour Ø27 DIN138 (longitudinal and cross groove) |
| Coolant intake | Outer cooling |
| Coupling | DIN 5480 |
| Alignment system | Trifix |
