Артикул: 115919

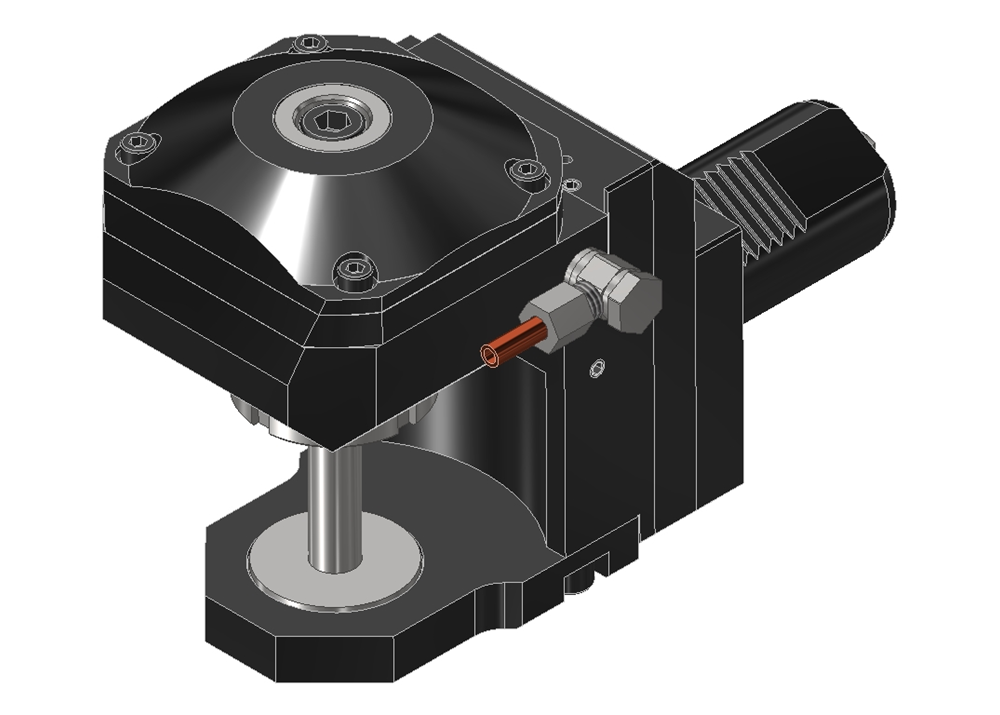

milling adaptor i = 3:1 Milling arbor dia. 13 Transmission: 3:1 Torque: 50 / 150 Spindlespeed: 6000 / 2000 Weight: 8.053
| Total height (OAH) | 153.50 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 3:1 |
| Transmission torque output drive 1 (DINH201) | 150.00 Nm |
| Shank size | VDI40 shaft rotated 30° |
| Interface size | Cutting arbour Ø13 DIN138 (longitudinal and cross groove) |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
| Alignment system | Pin eccentrical adjustable |
