Артикул: 132722

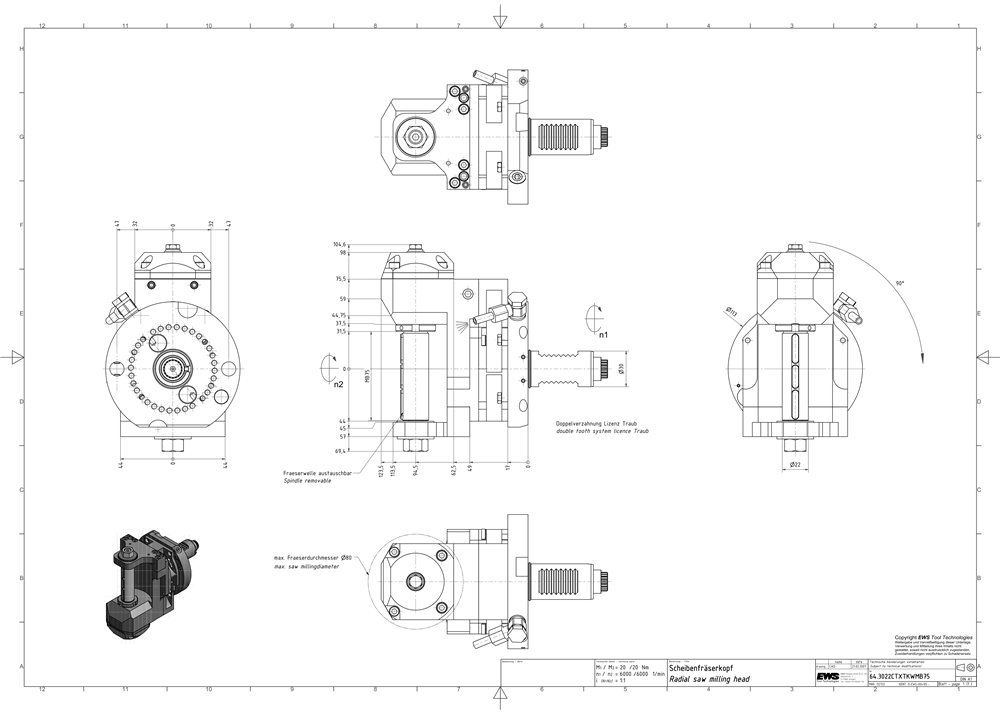

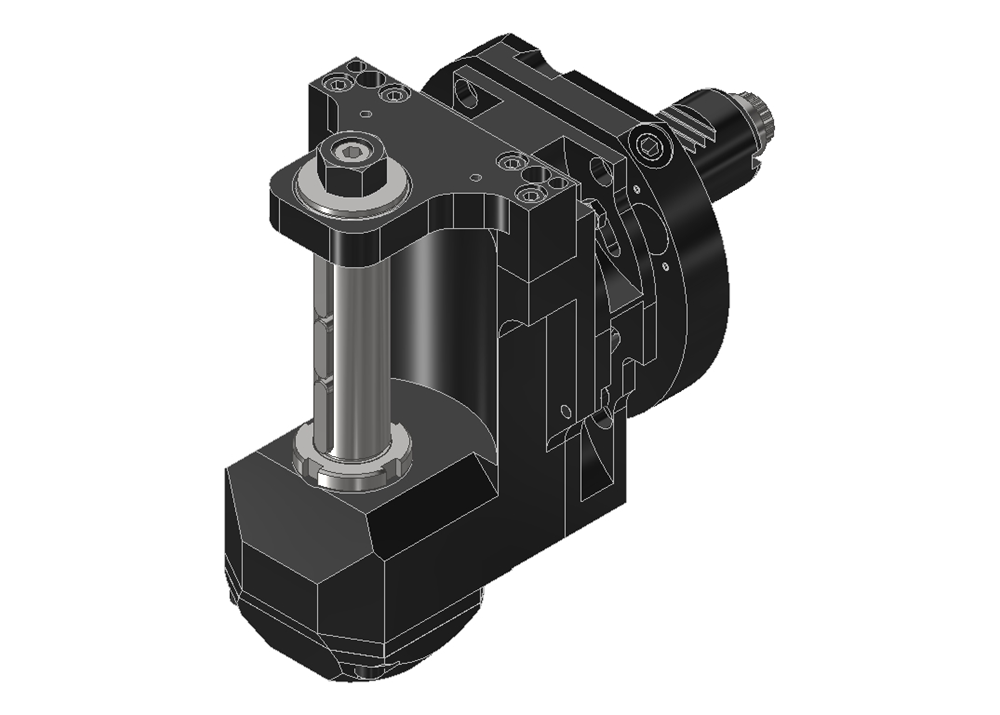

milling adaptor i = 1:1 Milling arbor dia. 22 Transmission: 1:1 Torque: 20 / 20 Spindlespeed: 6000 / 6000 Weight: 5.748
| Total height (OAH) | 174.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 20.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 20.00 Nm |
| Shank size | VDI30 |
| Interface size | Cutting arbour Ø22 DIN138 (longitudinal and cross groove) |
| Coolant intake | Outer cooling |
| Coupling | DIN 5480 |
| Alignment system | Pin (Bar) |
