Артикул: 124185

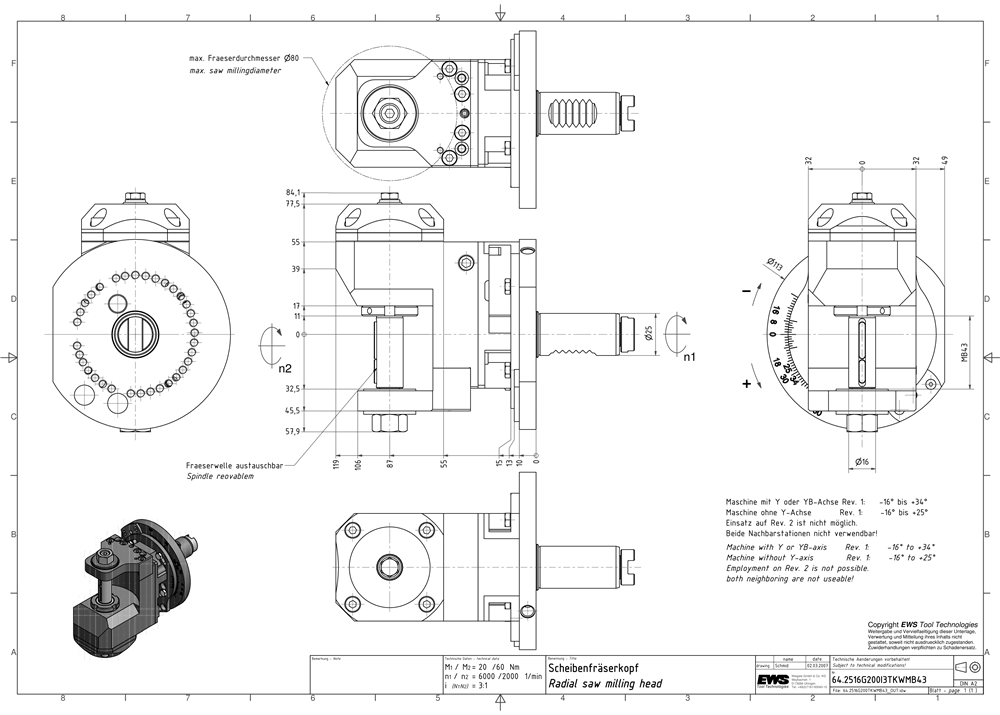

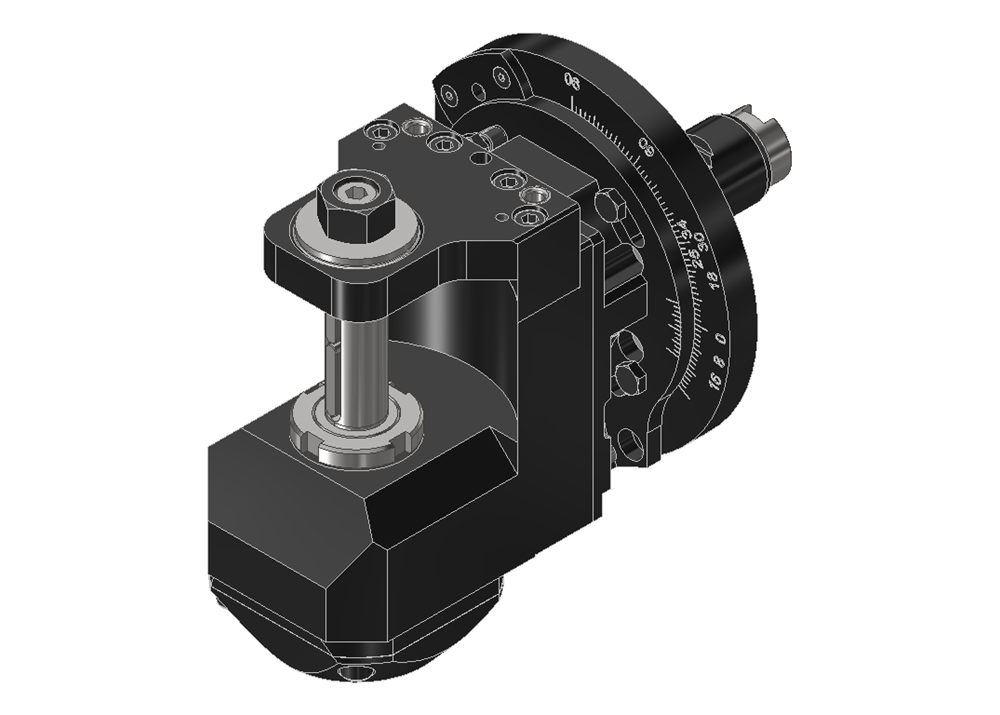

milling adaptor i = 3:1 Milling arbor dia. 16 Transmission: 3:1 Torque: 20 / 60 Spindlespeed: 6000 / 2000 Weight: 4.345
| Total height (OAH) | 142.00 mm |
|---|---|
| Number of holders, workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 20.00 Nm |
| Max. rotational speed, input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 3:1 |
| Transmission torque, output drive 1 (DINH201) | 60.00 Nm |
| Shank size | VDI25 |
| Interface size | Cutting arbour Ø16 DIN138 (longitudinal and cross groove) |
| Coolant intake | Outer cooling |
| Coupling | Groove driver |
