Артикул: 128490

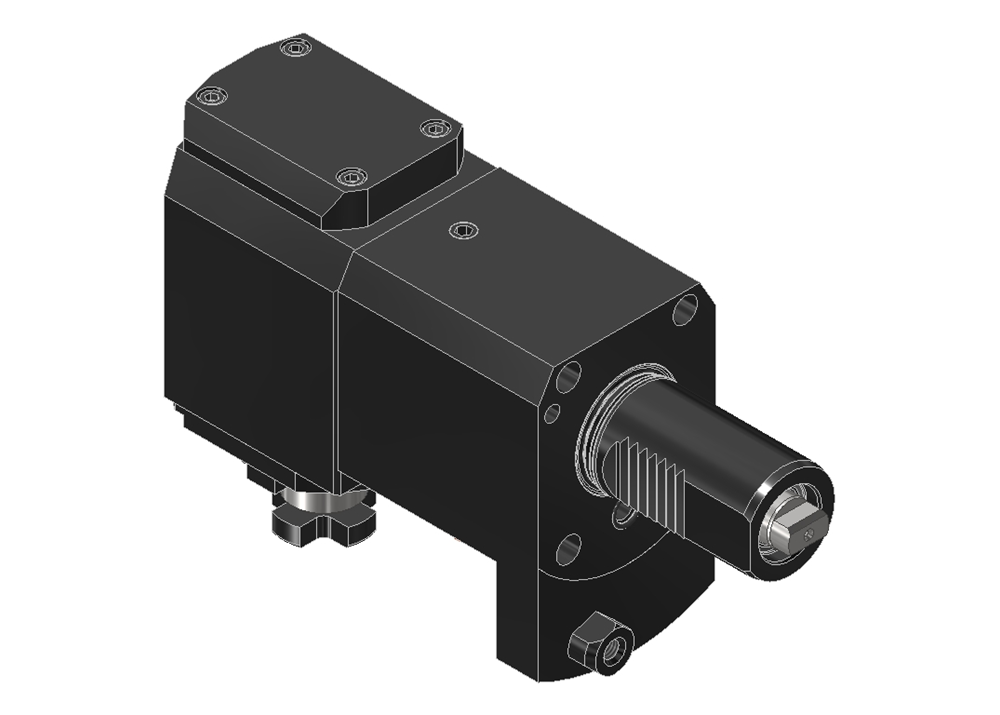

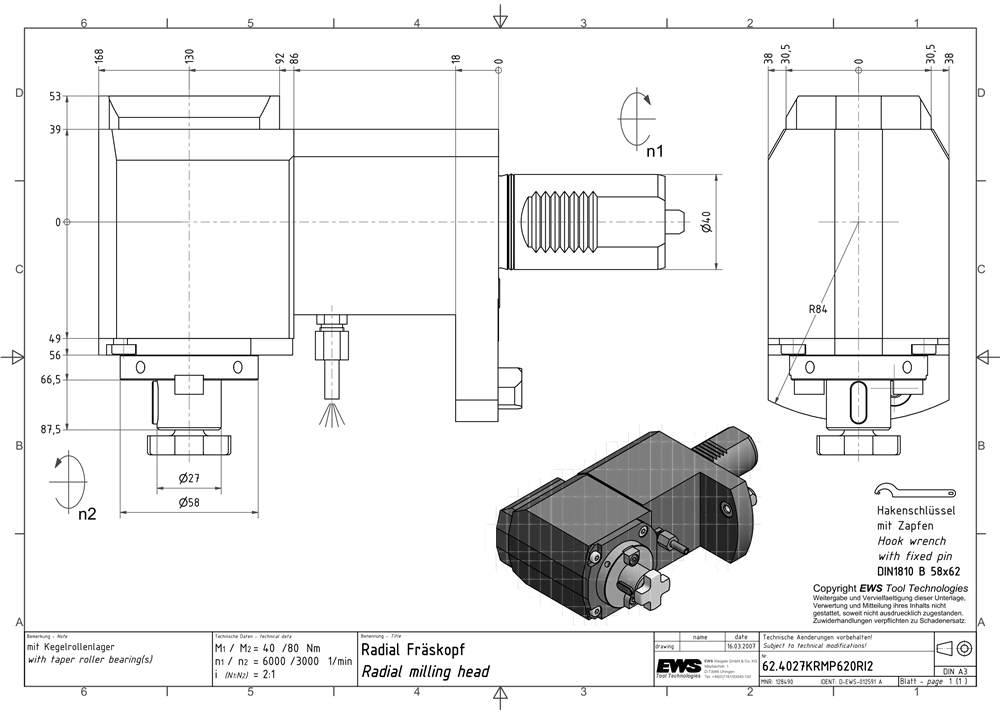

Radial milling head
Premium class tooling system for highest production efficiency — Made in Germany
Tapered roller bearings (KR) — extraordinarily loadable.
- Recommended for machining operations with high torques (e.g.: milling operations with large diameters threading operations interrupted cut machining)
- Increase of tool life
- Reduction of service intervals
- Simultaneous radial and axial loads can be easily absorbed
| Functional length (LF) | 130.00 mm |
|---|---|
| Total height (OAH) | 76.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 40.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 2:1 |
| Transmission torque output drive 1 (DINH201) | 80.00 Nm |
| Shank size | VDI40 |
| Interface size | Cutting arbour Ø27 DIN138 (longitudinal and cross groove) |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
| Alignment system | Pin |
