Артикул: 100822

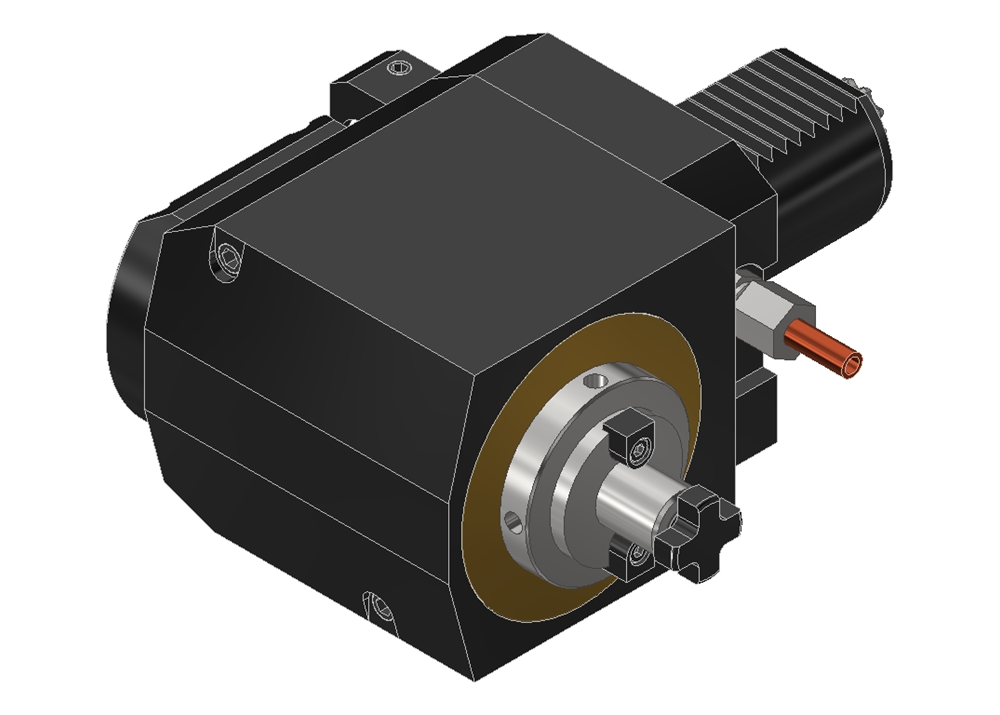

Radial milling head
Premium class tooling system for highest production efficiency — Made in Germany
| Functional length (LF) | 65.00 mm |
|---|---|
| Total height (OAH) | 76.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 5000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 50.00 Nm |
| Shank size | VDI40 |
| Interface size | Cutting arbour Ø16 DIN138 (longitudinal and cross groove) |
| Coolant intake | Outer cooling |
| Coupling | DIN 5482 |
| Alignment system | Pin (Bar) |
