62.3016LCTXLI2OT13 — Radial milling head Arbor Ø 16 long DIN 5480 drive External coolant supply i =2:1 direction of rotation inver adjusting plate

Артикул: 111671

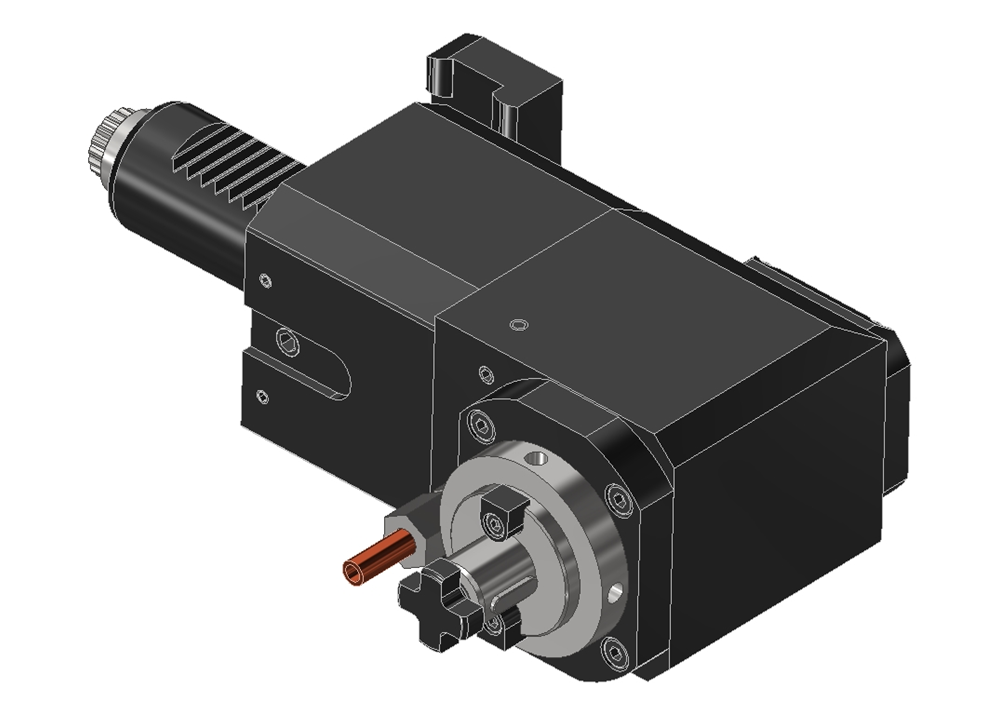

Radial milling head

Premium class tooling system for highest production efficiency — Made in Germany


Документация

Functional length (LF) 100.00 mm
Total height (OAH) 64.00 mm
Number of holders workpiece side (CCONWS) 1
Max. torque (TQX) 20.00 Nm
Max. rotational speed input (RPMX) 6000 min-1
Transmission relation (TR) 2:1
Transmission torque output drive 1 (DINH201) 40.00 Nm
Shank size VDI30
Interface size Cutting arbour Ø16 DIN138 (longitudinal and cross groove)
Coolant intake Outer cooling
Coupling DIN 5480
Alignment system Clamping bar

Article number111671
Product weight4.325 KG
