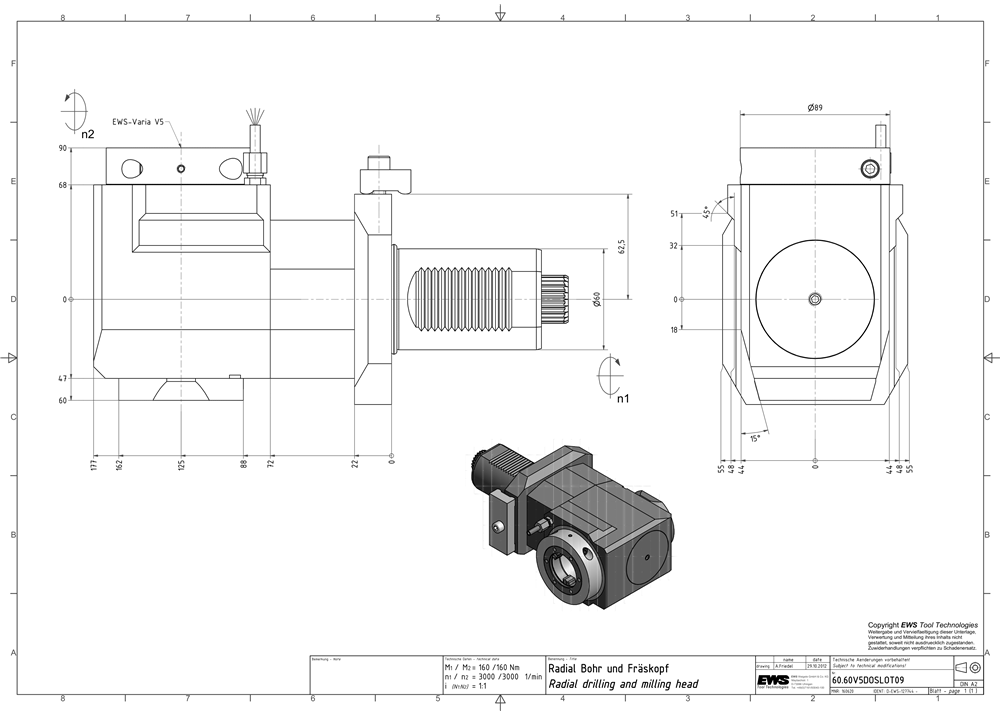

60.60V5DOSLOT09 — Radial drilling and milling head EWS — Varia V5- Adaptor DIN 5480 drive External coolant supply i =1:1 direction of rotation inver adjusting plate

Артикул: 160620

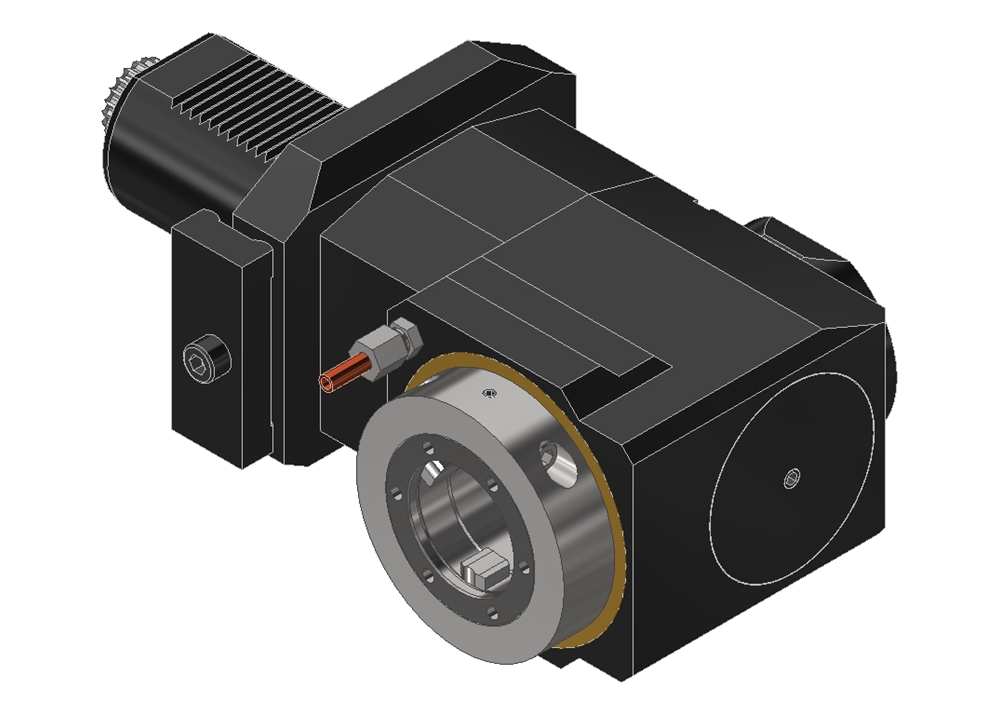

Radial drilling and milling head

Premium class tool system for highest production efficiency — Made in Germany

EWS.Varia

The Varia system has meanwhile been replaced by Varia VX. The new system is the logical further development of the successful quick-change system and brings with it various advantages.

If you are planning a new acquisition we recommend that you purchase the current system directly.

If you are already using the Varia system in your production please contact us. An upgrade to the new version may be possible and worthwhile for you.


Документация

Functional length (LF) 125.00 mm
Total height (OAH) 104.00 mm
Number of holders workpiece side (CCONWS) 1
Max. torque (TQX) 160.00 Nm
Max. rotational speed input (RPMX) 3000 min-1
Transmission relation (TR) 1:1
Transmission torque output drive 1 (DINH201) 160.00 Nm
Shank size VDI60
Interface size EWS Varia V5
Coolant intake Outer cooling
Coupling DIN 5480
Alignment system Clamping bar

Article number160620
Product weight14.076 KG
