Артикул: 166006

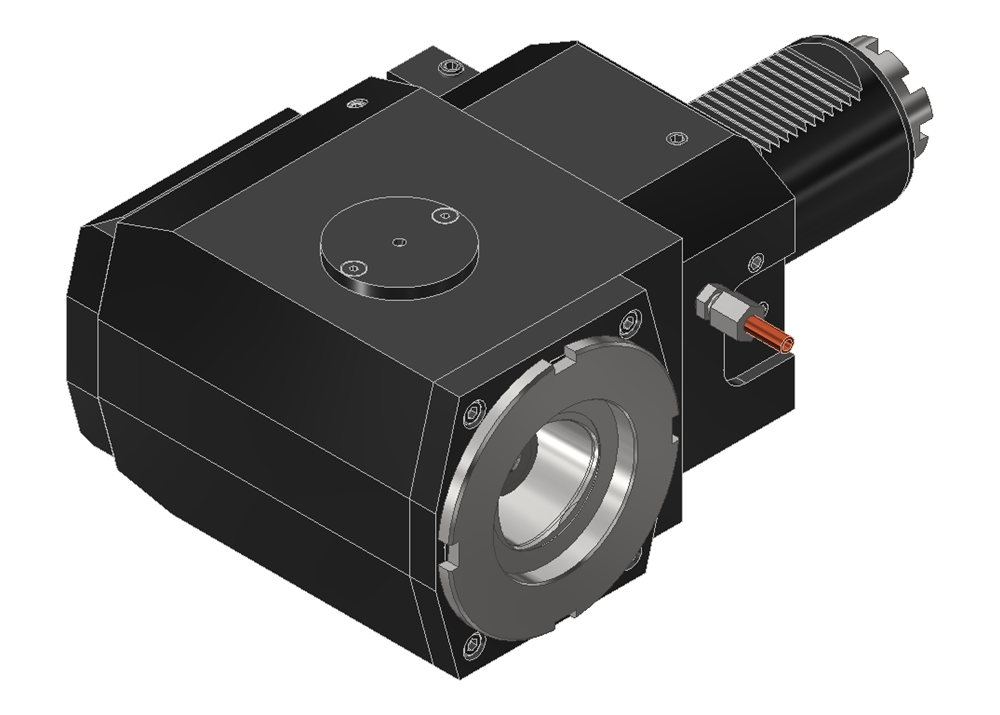

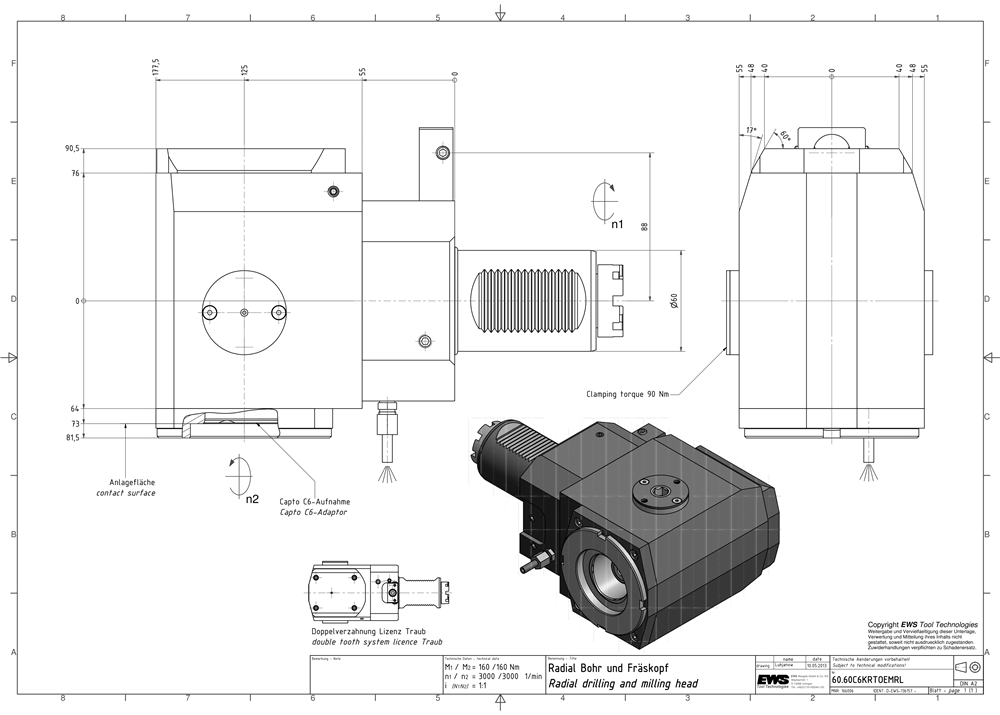

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
EWS.PSC — standardized interface
- Size PSC 63:
- Repeatability ≤ 0.01mm
- Tightening torque 90 Nm
- Clamping force 30 kN
- Standardized adapters available worldwide
- High force transmission
- Easy handling
- Interface for driven and static tools
- Extra short adapters without gripper groove available — talk to us!
Tapered roller bearings (KR) — extraordinarily loadable.
- Recommended for machining operations with high torques (e.g.: milling operations with large diameters, threading operations, interrupted cut machining)
- Increase of tool life
- Reduction of service intervals
- Simultaneous radial and axial loads can be easily absorbed
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Functional length (LF) | 125.00 mm |
|---|---|
| Total height (OAH) | 110.00 mm |
| Number of holders, workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 160.00 Nm |
| Max. rotational speed, input (RPMX) | 3000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 160.00 Nm |
| Shank size | VDI60 |
| Interface size | PSC 63 |
| Coolant intake | Outer cooling |
| Coupling | Claw coupling |
| Alignment system | Pin (Bar) |
