Артикул: 222740

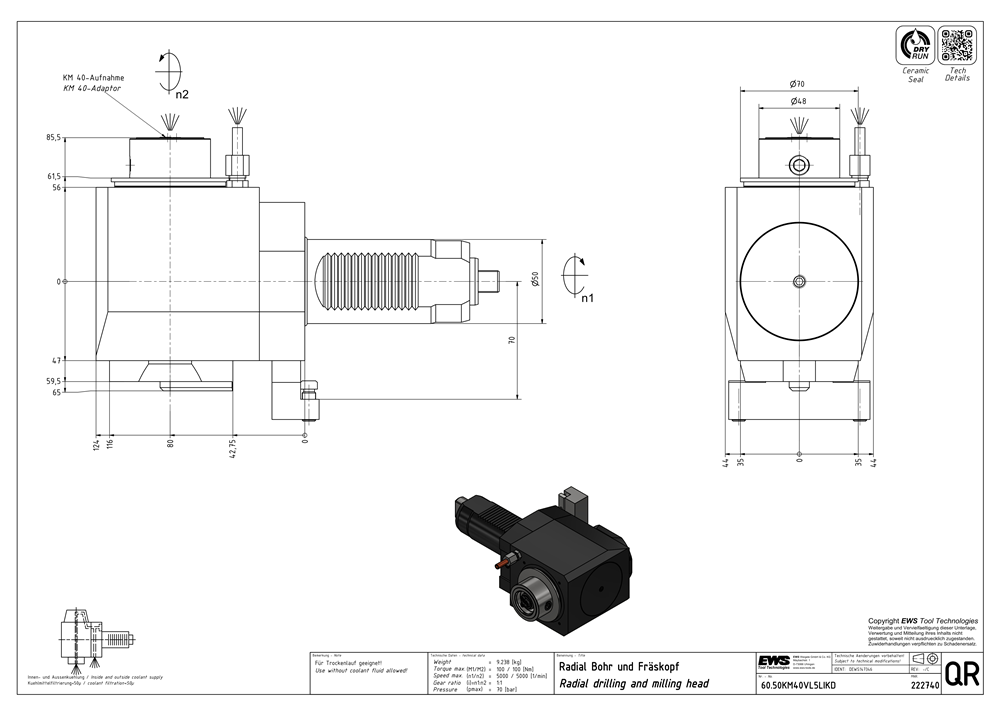

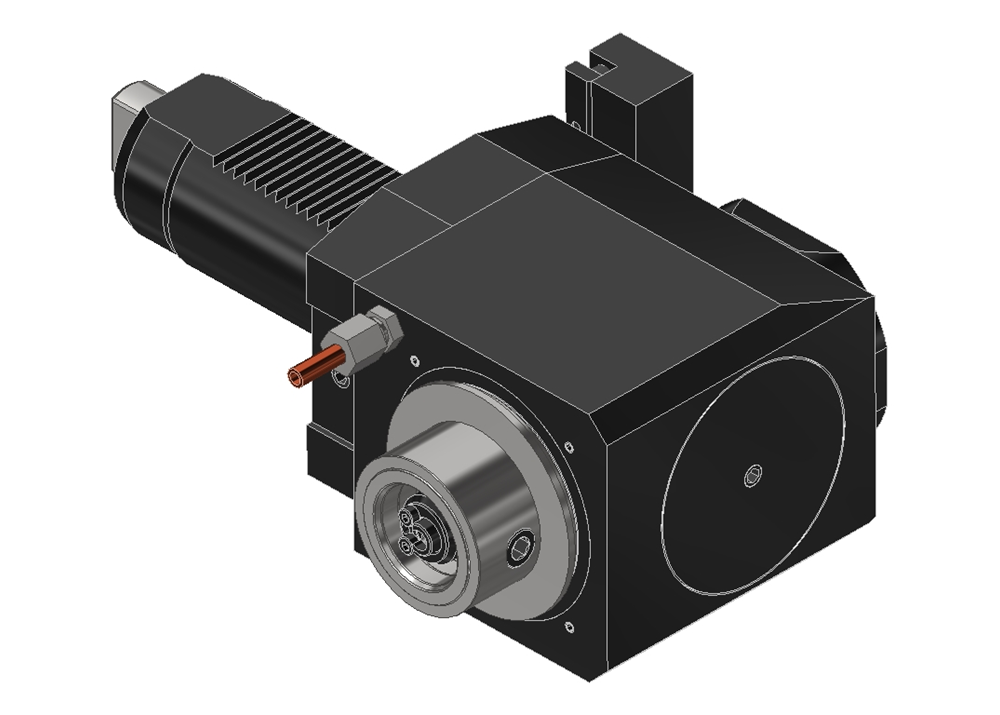

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
EWS.HPC-Line (IKC/IKD) — Sealing technology sets standards
- Ceramic based sealing elements
- 0 — 70 bar coolant pressure
- Dry running capability without restrictions
- Speeds up to 12 000/min
- Up to 60% reduced heat generation
- Long service life — low maintenance costs
- Seal kit for the latest generation of internal coolant supply systems
| Functional length (LF) | 80.00 mm |
|---|---|
| Total height (OAH) | 88.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 100.00 Nm |
| Max. rotational speed input (RPMX) | 5000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 100.00 Nm |
| Shank size | VDI50 |
| Interface size | KM 40 |
| Coolant intake | Inner and outer cooling |
| Coupling | Surface coupling |
| Alignment system | Stop bar adjustable |
