Артикул: 156580

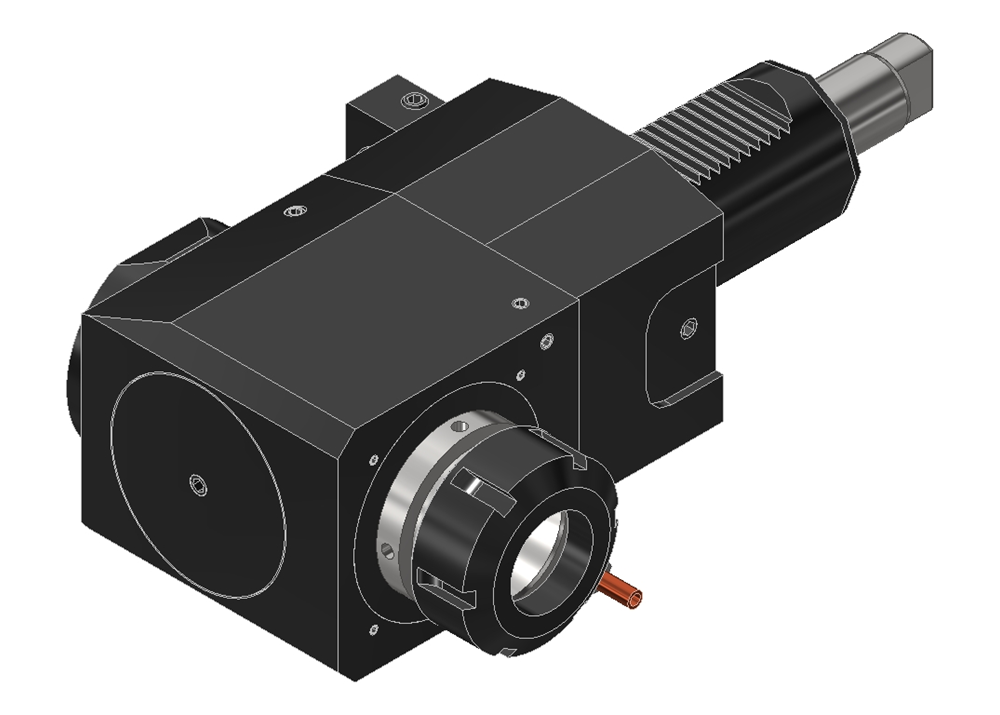

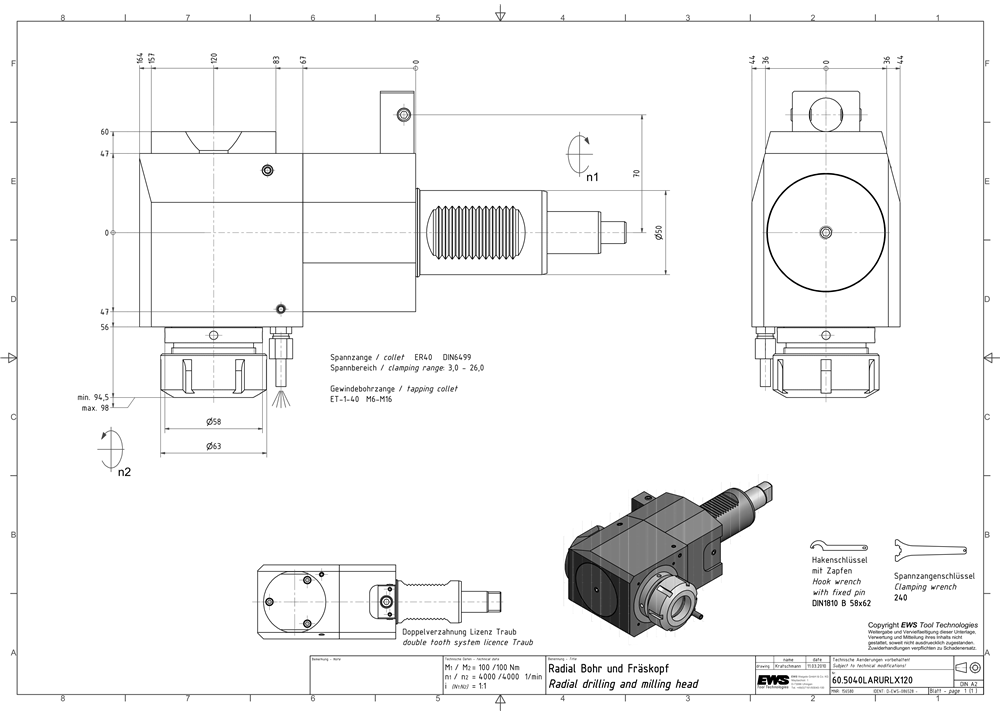

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Collet chuck ER40 DIN6499
- Clamping range Ø4-26
- For collet 400 472E
- When tightening the clamping nut it is essential to counterhold the tool spindle.
- Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 160 Nm
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Functional length (LF) | 120.00 mm |
|---|---|
| Total height (OAH) | 88.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 100.00 Nm |
| Max. rotational speed input (RPMX) | 4000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 100.00 Nm |
| Shank size | VDI50 |
| Interface size | ER40 |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
| Alignment system | Pin (Bar) |
