Артикул: 205937

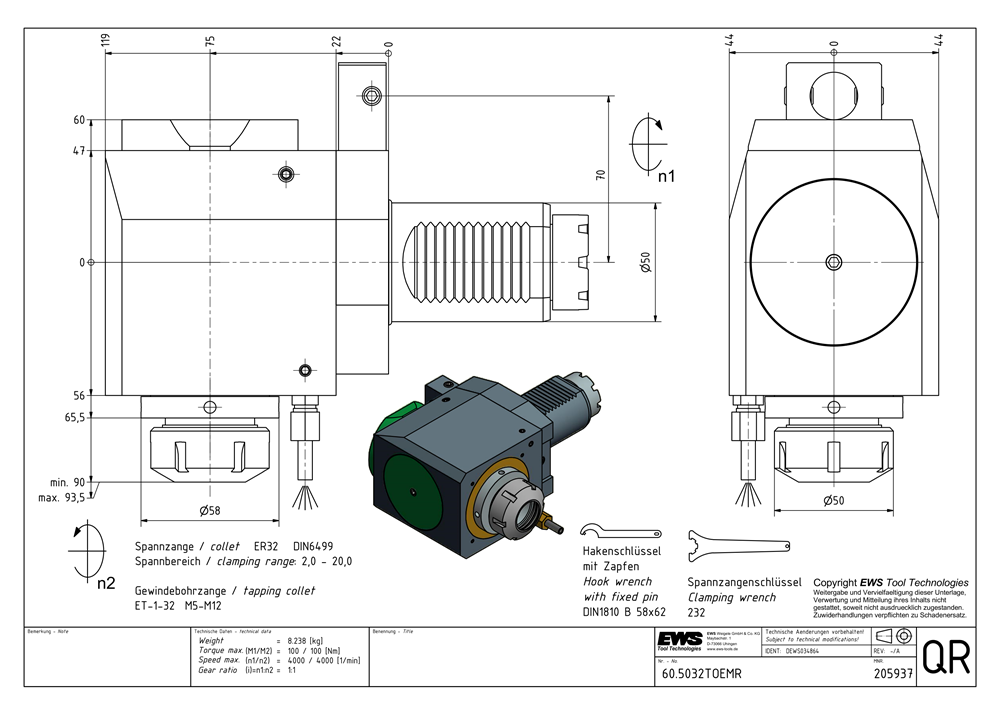

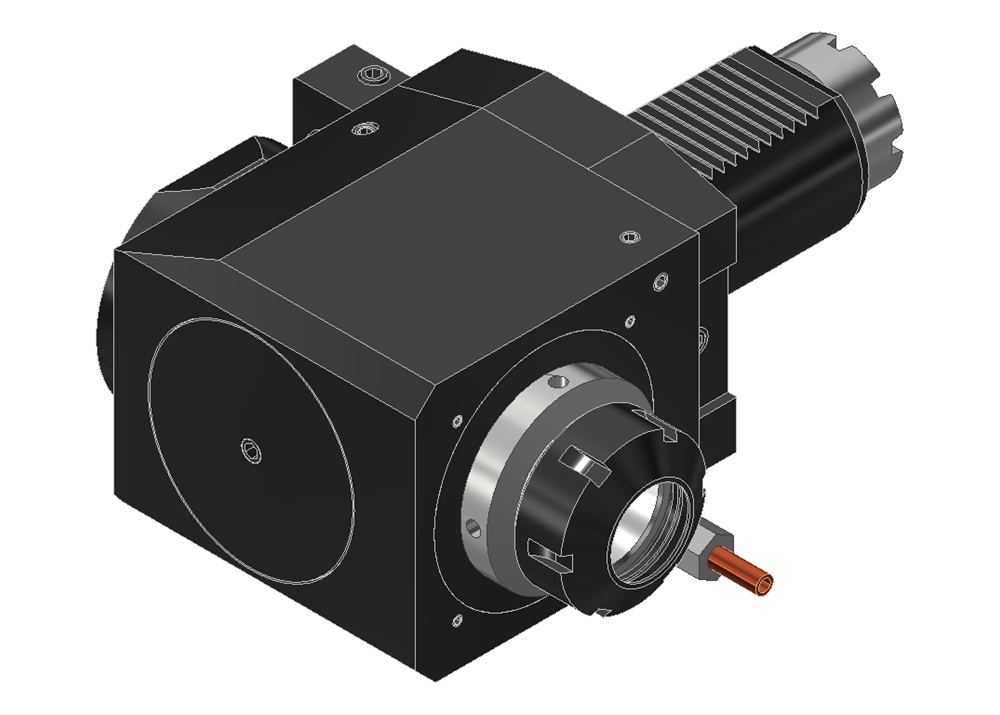

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Collet chuck ER32 DIN6499
- Clamping range Ø3-20
- For collet 320 470E
- When tightening the clamping nut it is essential to counterhold the tool spindle.
- Failure to observe the counter-hold can result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 120 Nm
| Number of holders workpiece side (CCONWS) | 1 |
|---|---|
| Max. torque (TQX) | 100.00 Nm |
| Max. rotational speed input (RPMX) | 4000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 100.00 Nm |
| Shank size | VDI50 |
| Interface size | Collet ER32 |
| Coolant intake | Outer cooling |
| Coupling | Claw coupling |
