Артикул: 190674

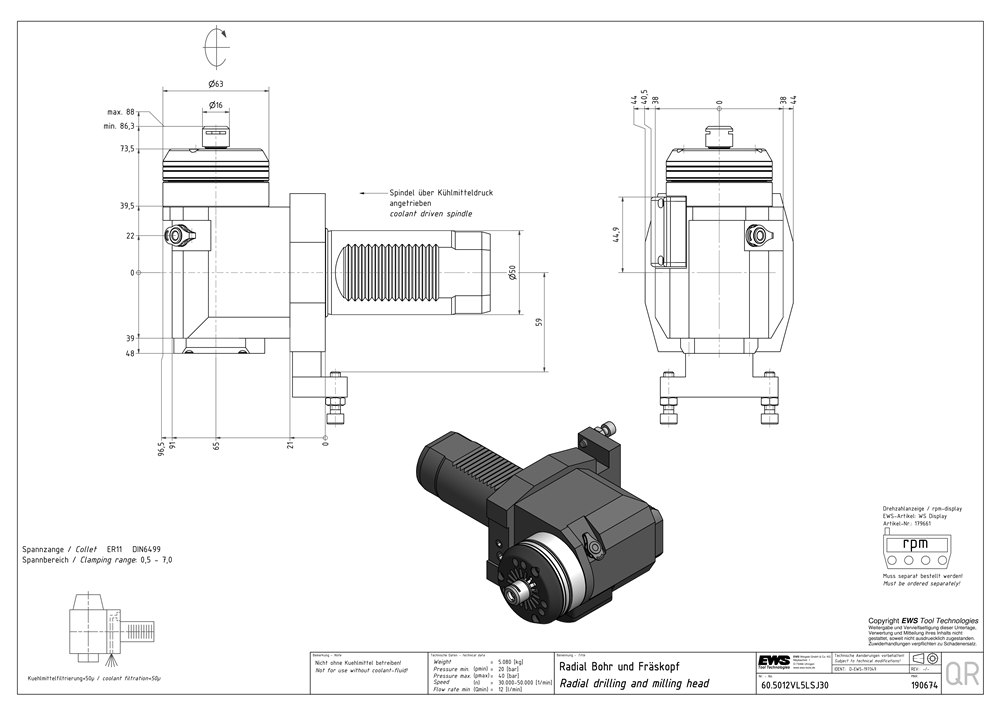

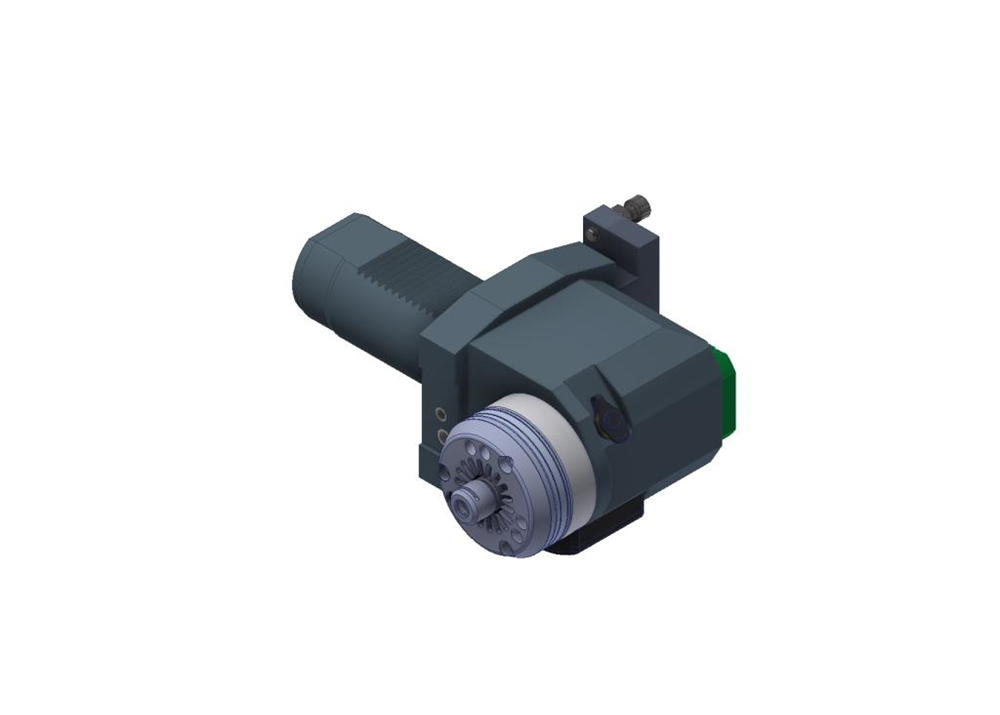

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Collet chuck ER12 DIN6499
- Clamping range Ø1-7
- For collet 120 424E
- When tightening the clamping nut it is essential to counterhold the tool spindle.
- Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 50 Nm
| Functional length (LF) | 44.00 mm |
|---|---|
| Total height (OAH) | 76.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. rotational speed input (RPMX) | 0 min-1 |
| Shank size | VDI40 |
| Interface size | Collet ER32 |
| Coolant intake | Inner and outer cooling |
| Coupling | Surface coupling |
| Alignment system | Stop bar adjustable |
