Артикул: 148100

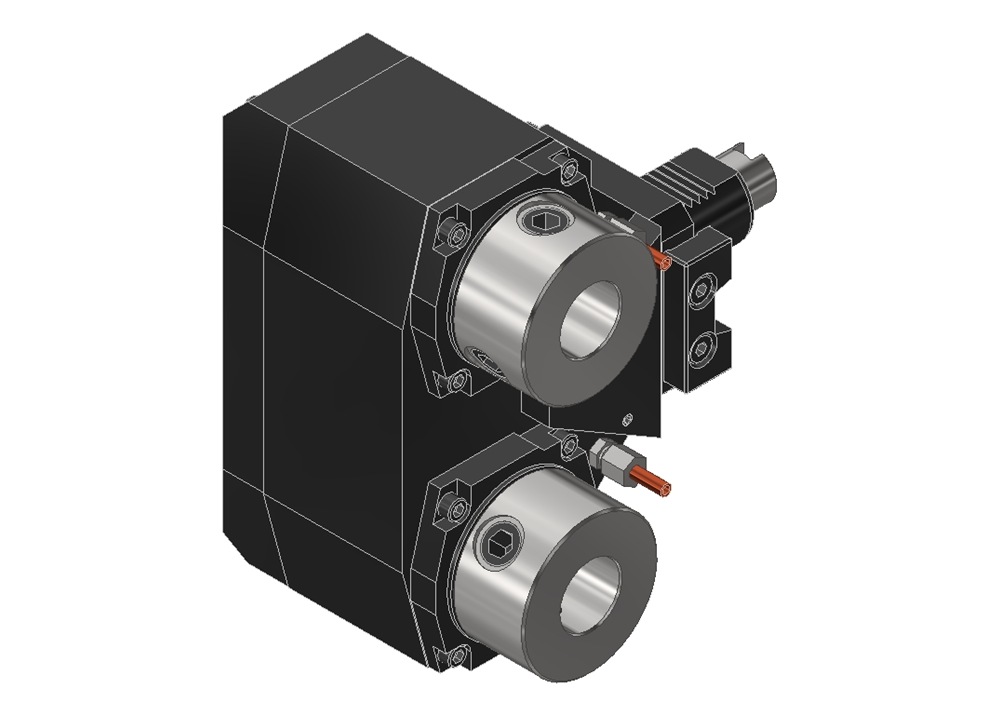

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
| Number of holders workpiece side (CCONWS) | 1 |
|---|---|
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 5000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 50.00 Nm |
| Shank size | VDI40 |
| Interface size | Weldon Ø 32.0 Whistle Notch Ø 32.0 |
| Coolant intake | Outer cooling |
| Coupling | Groove driver |
| Alignment system | Stop and clamping bar |
