Артикул: 111604

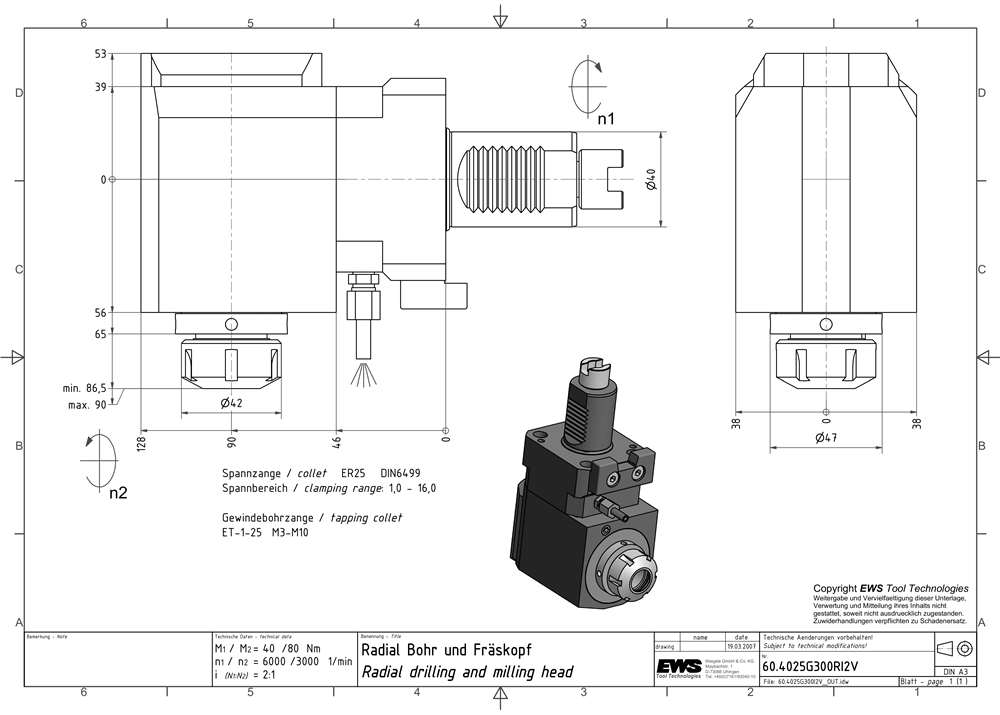

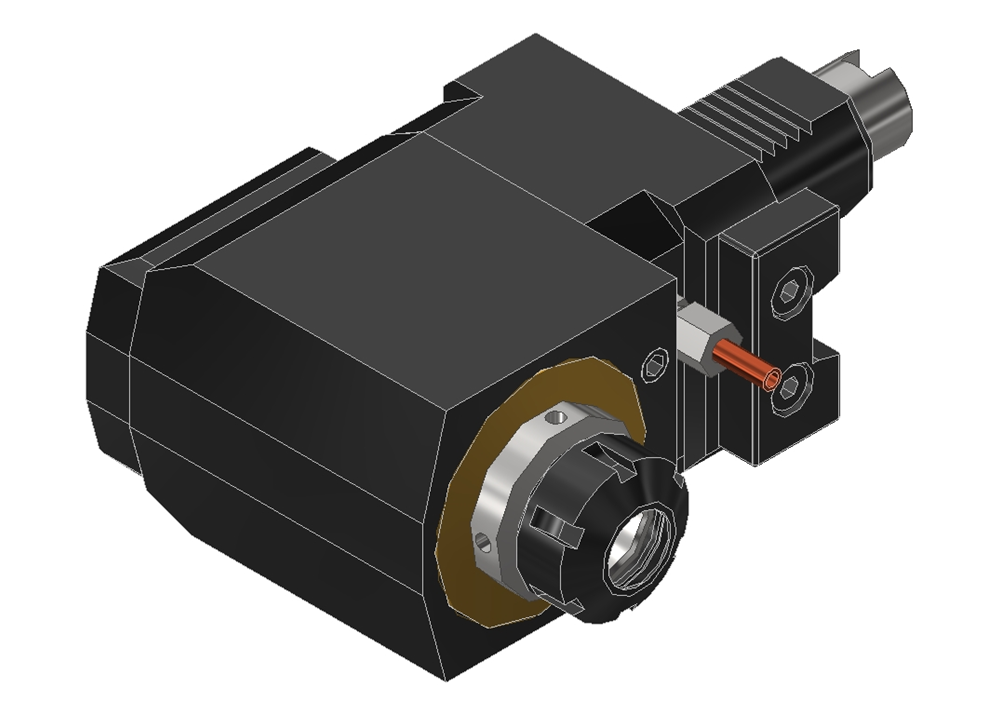

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Collet chuck ER25 DIN6499
- Clamping range Ø2-16
- For collet 250 430E
- When tightening the clamping nut it is essential to counterhold the tool spindle.
- Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 90 Nm
| Functional length (LF) | 90.00 mm |
|---|---|
| Total height (OAH) | 76.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 40.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 2:1 |
| Transmission torque output drive 1 (DINH201) | 80.00 Nm |
| Shank size | VDI40 |
| Interface size | Collet ER25 |
| Coolant intake | Outer cooling |
| Coupling | Groove driver |
| Alignment system | V-plate |
