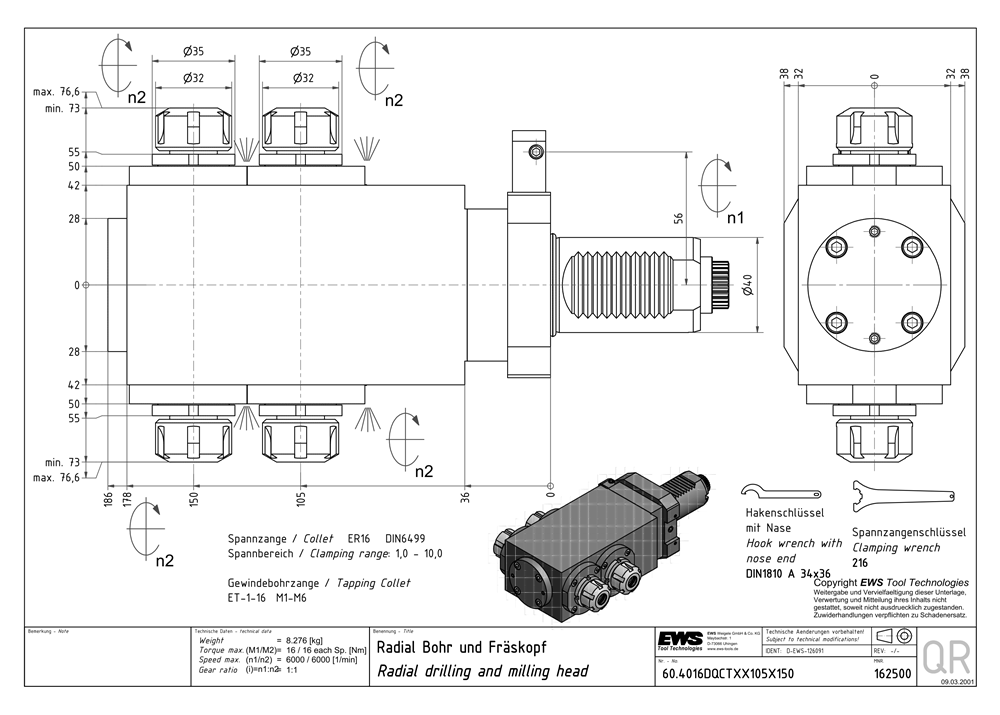

60.4016DQCTXX105X150 — Radial drilling and milling head For collet 160 426E (ER16 Ø1-10) double spindle each side DIN 5480 drive External coolant supply i =1:1 X1 = 105mm’ X2 = 150mm

Артикул: 162500

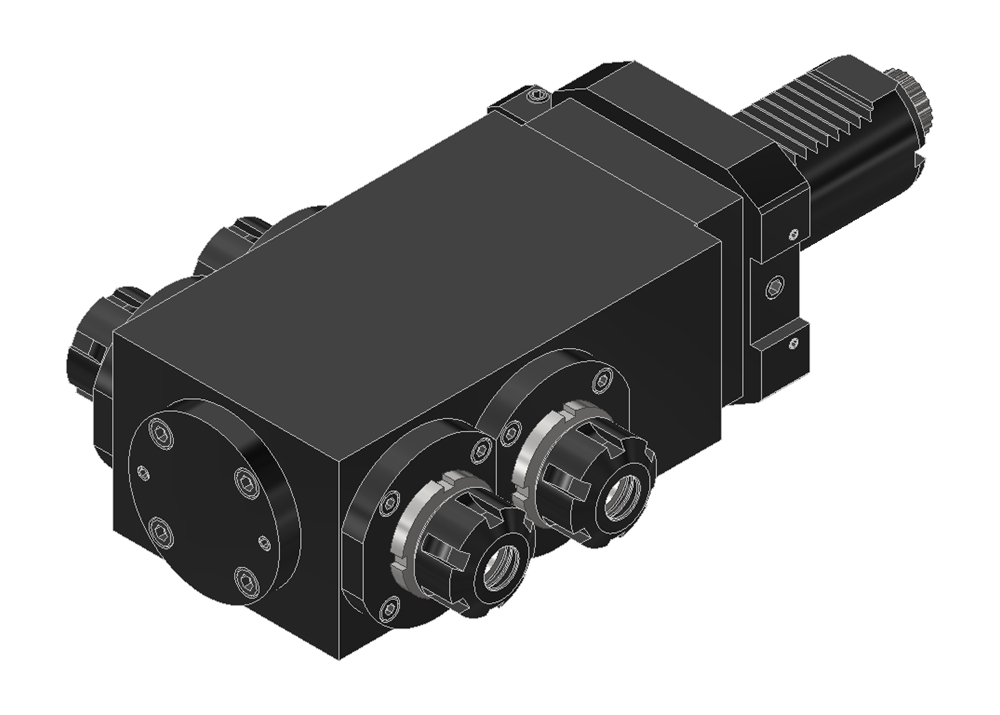

Radial drilling and milling head

Premium class tool system for highest production efficiency — Made in Germany

Collet chuck ER16 DIN6499

  • Clamping range Ø1-10
  • For collet 160 426E
  • When tightening the clamping nut it is essential to counterhold the tool spindle.
  • Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
  • Maximum tightening torque: 50 Nm


Документация

Number of holders workpiece side (CCONWS) 2
Max. torque (TQX) 16.00 Nm
Max. rotational speed input (RPMX) 6000 min-1
Transmission relation (TR) 1:1
Transmission torque output drive 1 (DINH201) 8.00 Nm
Transmission torque 2 (DINH202) 8.00 Nm
Shank size VDI40
Interface size Collet ER16
Coolant intake Outer cooling
Coupling DIN 5480
Alignment system Pin (Bar)

Article number162500
Product weight8.276 KG
