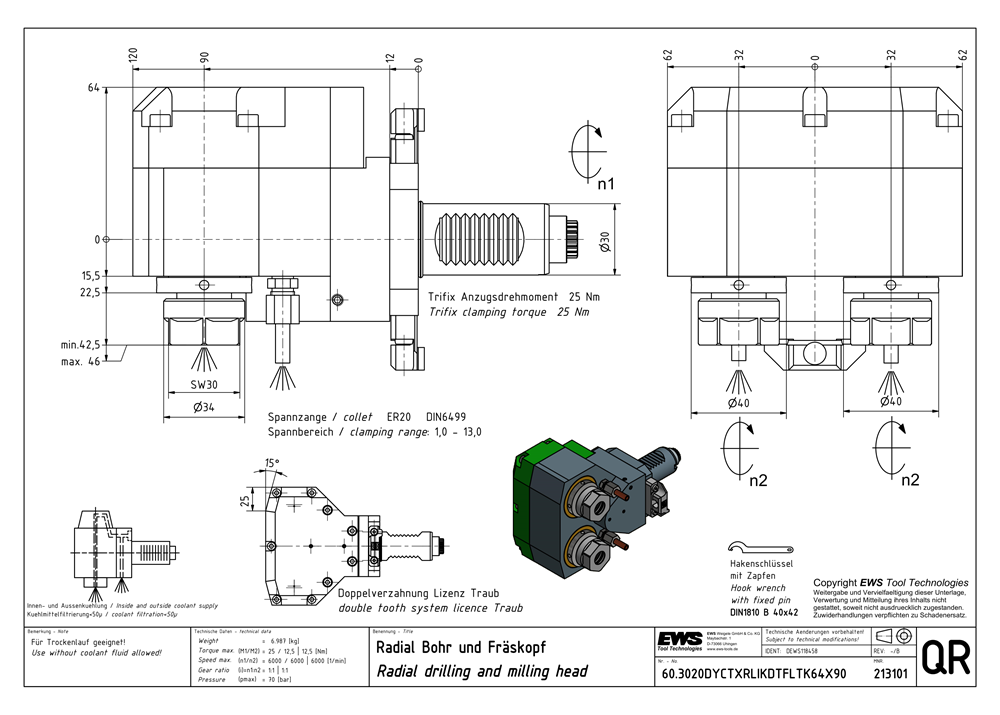

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Collet chuck ER20 DIN6499
- Clamping range Ø2-13
- For collet 200 428E
- When tightening the clamping nut, it is essential to counterhold the tool spindle.
- Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 75 Nm
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
EWS.HPC-Line (IKC/IKD) — Sealing technology sets standards
- Ceramic based sealing elements
- 0 — 70 bar coolant pressure
- Dry running capability without restrictions
- Speeds up to 12,000/min
- Up to 60% reduced heat generation
- Long service life — low maintenance costs
- Seal kit for the latest generation of internal coolant supply systems
Trifix© (TF) alignment system
- Tool completely preset
- Faster setup of your machine
- Repeatability < 6µm at 200mm throat depth
- Positioning accuracy of 0.01mm from one station to another
| Number of holders, workpiece side (CCONWS) | 2 |
|---|---|
| Max. torque (TQX) | 25.00 Nm |
| Max. rotational speed, input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 12.50 Nm |
| Transmission torque 2 (DINH202) | 12.50 Nm |
| Shank size | VDI30 |
| Interface size | Collet ER20 |
| Coolant intake | Inner and outer cooling |
| Coupling | DIN 5480 |
| Alignment system | Trifix |
