Артикул: 131466

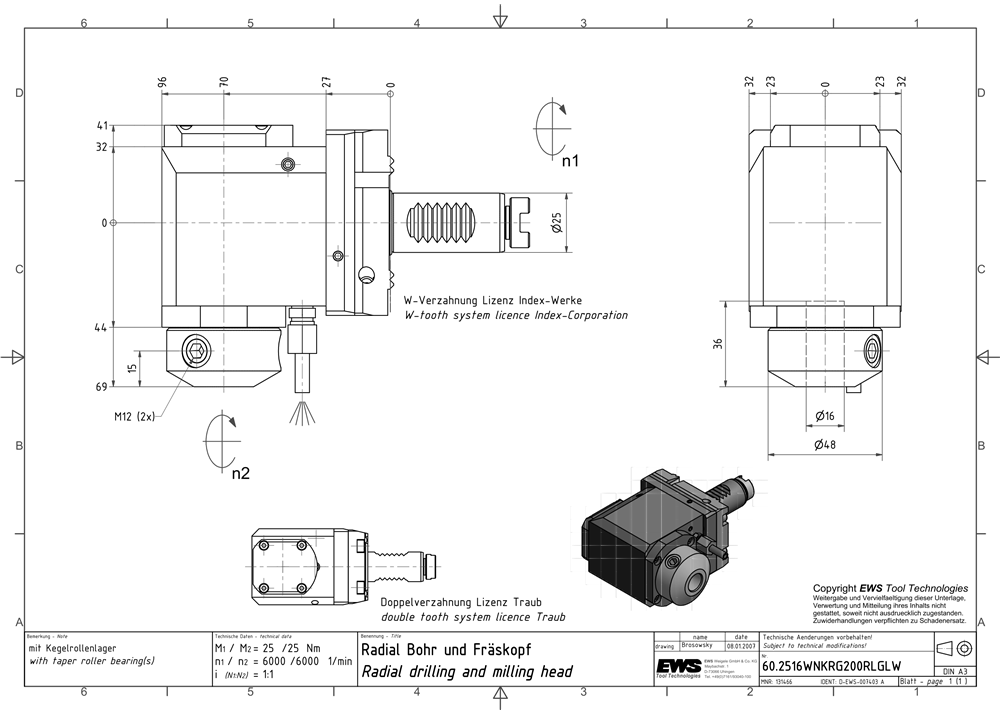

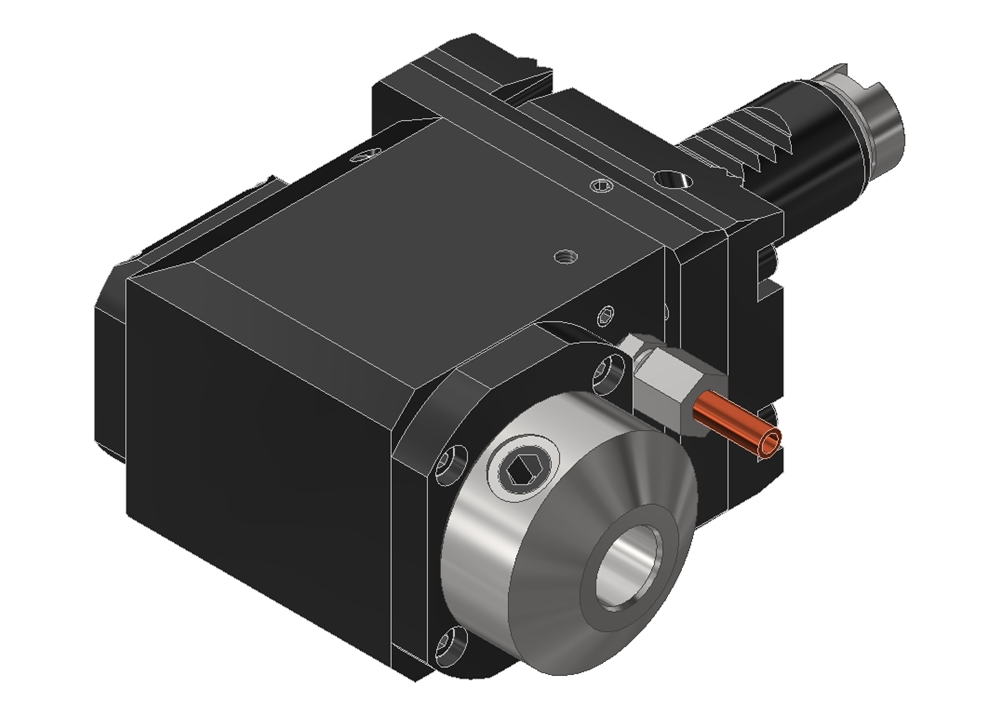

Radial drilling and milling head i = 1:1 Weldon/Whistle Notch Dia. 16 Transmission: 1:1 Torque: 25 / 25 Spindlespeed: 6000 / 6000 Weight: 3.500
| Functional length (LF) | 70.00 mm |
|---|---|
| Total height (OAH) | 64.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 25.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 25.00 Nm |
| Shank size | VDI25 |
| Interface size | Weldon Ø 16.0 Whistle Notch Ø 16.0 |
| Coolant intake | Outer cooling |
| Coupling | Groove driver |
| Alignment system | W-serration |
