Артикул: 125914

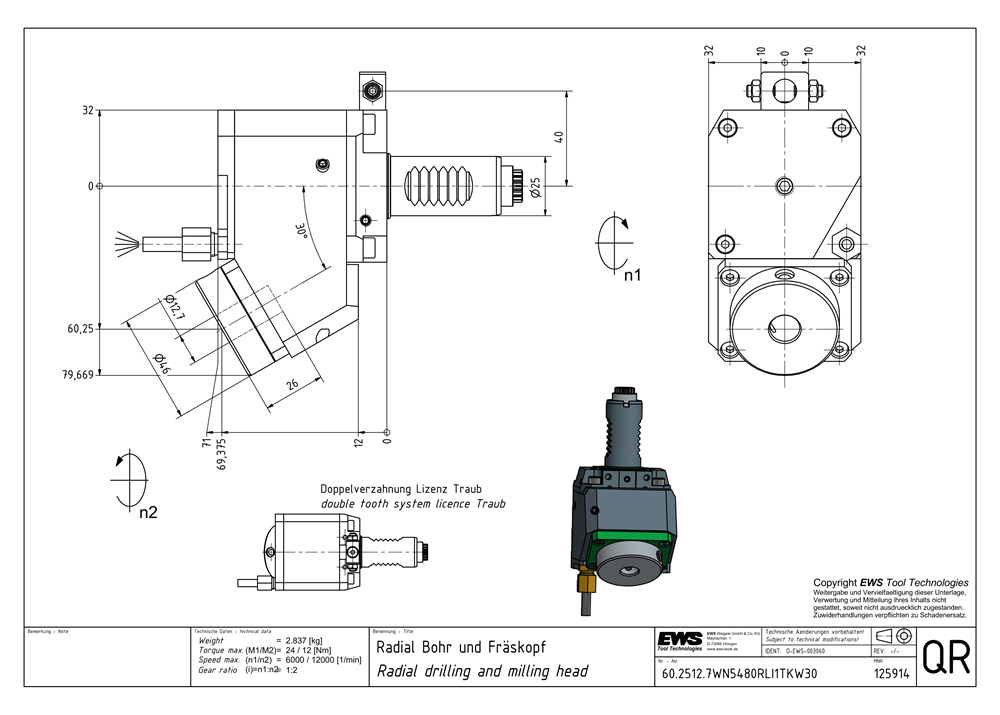

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Functional length (LF) | 69.38 mm |
|---|---|
| Total height (OAH) | 64.00 mm |
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 24.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:2 |
| Transmission torque output drive 1 (DINH201) | 12.00 Nm |
| Shank size | VDI25 |
| Interface size | Weldon Ø1/2″ Whistle Notch Ø 50.0 |
| Coolant intake | Outer cooling |
| Coupling | DIN 5480 |
| Alignment system | Pin (Bar) |
