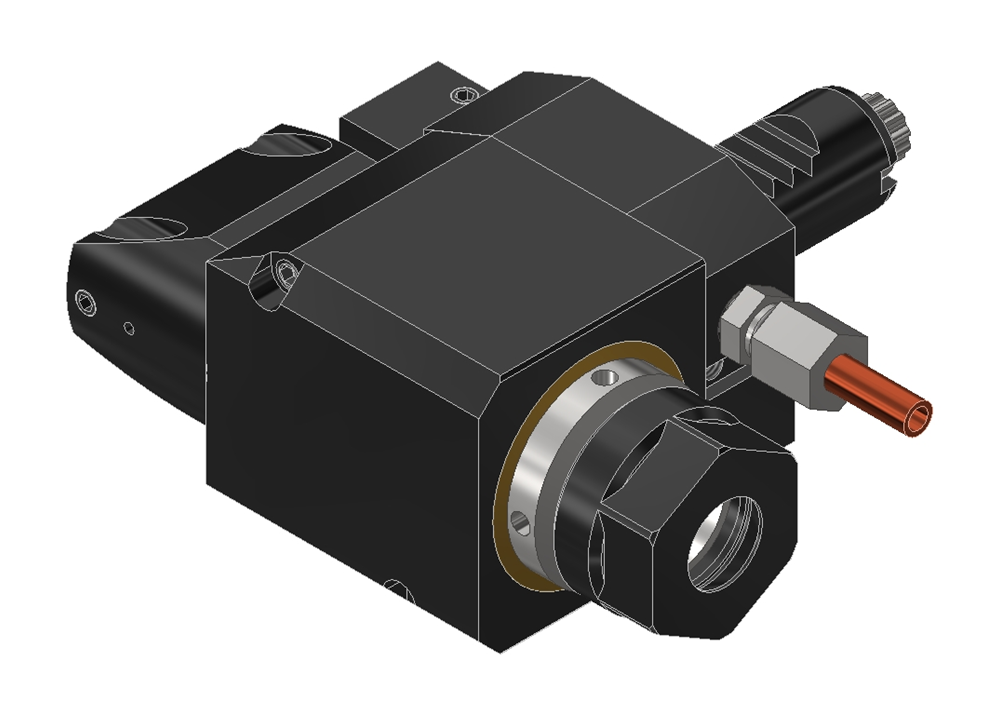

Radial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Collet chuck ER20 DIN6499
- Clamping range Ø2-13
- For collet 200 428E
- When tightening the clamping nut it is essential to counterhold the tool spindle.
- Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 75 Nm
Internal cooling
Equipped with high-quality seal kits that can withstand coolant pressure of up to 70 bar.
- 70 bar maximum coolant pressure
- Not capable of dry running
- Change between external and internal cooling possible
- Coolant must be applied to the tool at all times

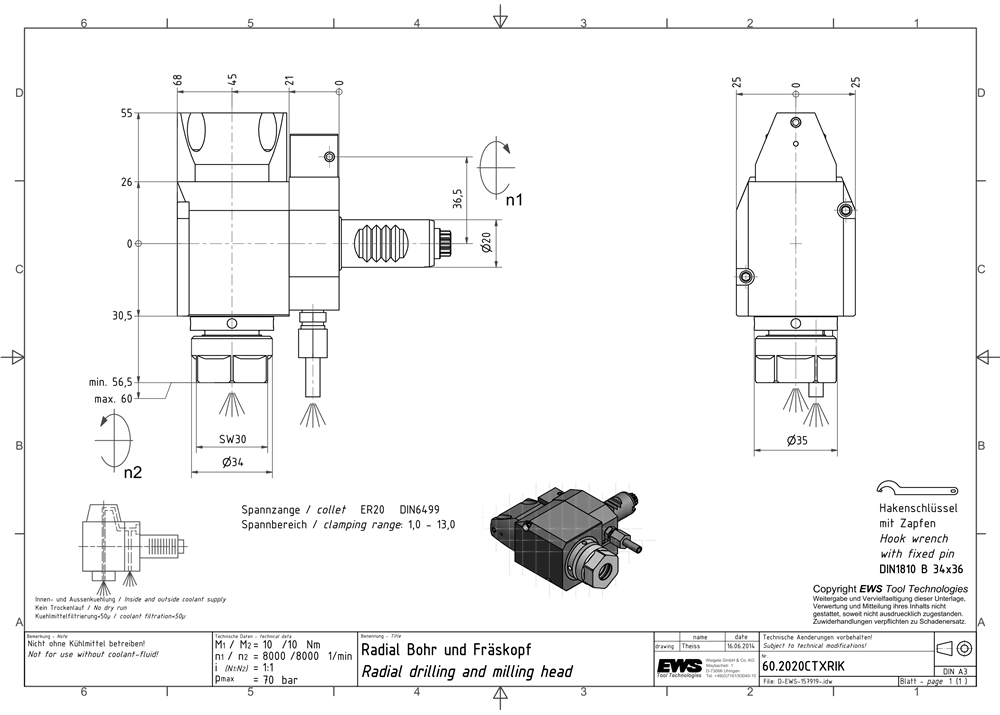

| Funktionslänge (LF) | 45.00 mm |
|---|---|
| Gesamthöhe (OAH) | 50.00 mm |
| Anzahl Aufnahmen werkstückseitig (CCONWS) | 1 |
| Max. Drehmoment (TQX) | 10.00 Nm |
| Max. Drehzahl Eingang (RPMX) | 8000 min-1 |
| Übersetzungsverhältnis (TR) | 1:1 |
| Übertragungsdrehmoment Abtrieb 1 (DINH201) | 10.00 Nm |
| Schaftgröße | VDI20 |
| Schnittstellengröße | Collet ER20 |
| Kühlung Aufnahme | Inner and outer cooling |
| Kupplung | DIN 5480 |
| Ausrichtsystem | Pin (Bar) |
