Артикул: 156218

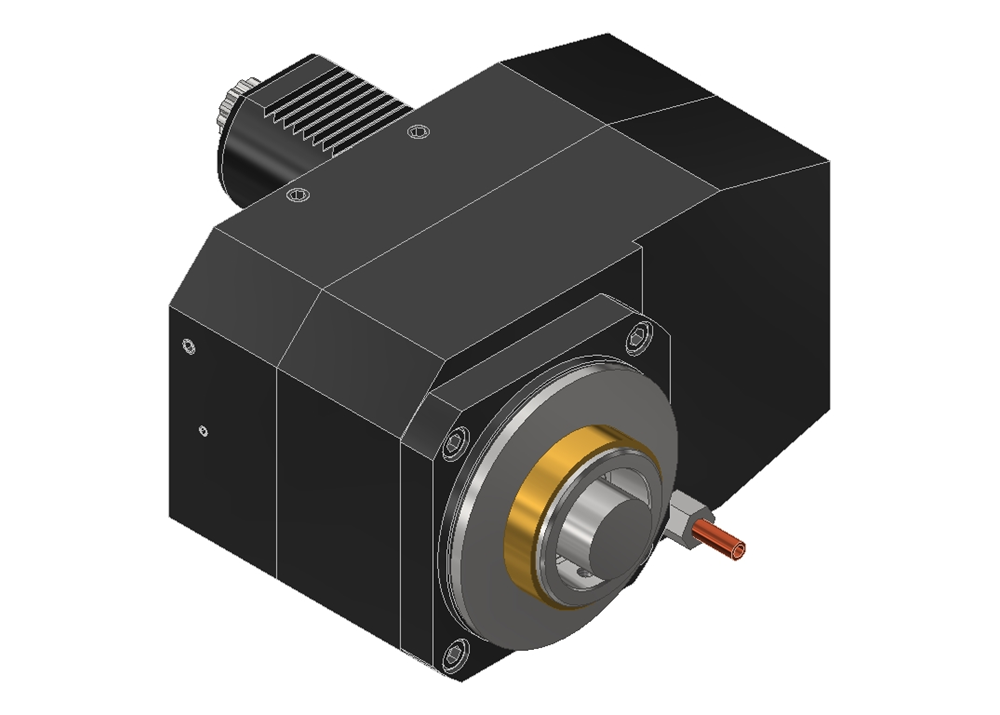

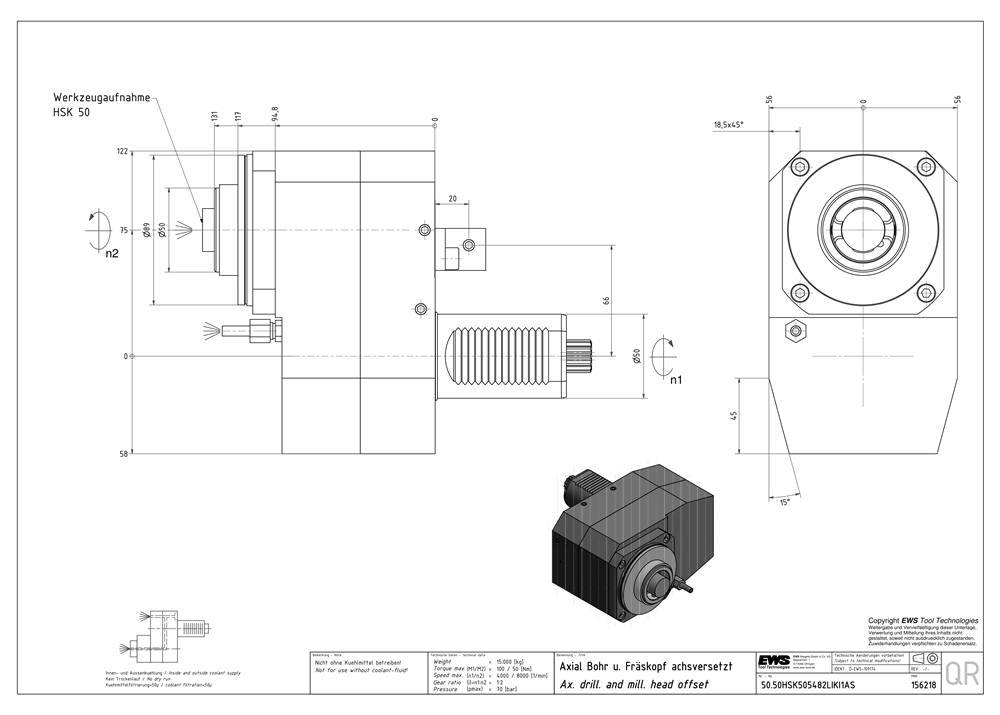

Axial drilling and milling head offset i = 1:2 HSK 50 adaptor Transmission: 1:2 Torque: 100 / 50 Spindlespeed: 4000 / 8000 Weight: 15.000
| Total height (OAH) | 112.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 100.00 Nm |
| Max. rotational speed input (RPMX) | 4000 min-1 |
| Transmission relation (TR) | 1:2 |
| Transmission torque output drive 1 (DINH201) | 50.00 Nm |
| Shank size | VDI50 |
| Interface size | HSK-A50 |
| Coolant intake | Inner and outer cooling |
| Coupling | DIN 5482 |
| Alignment system | Bar |
