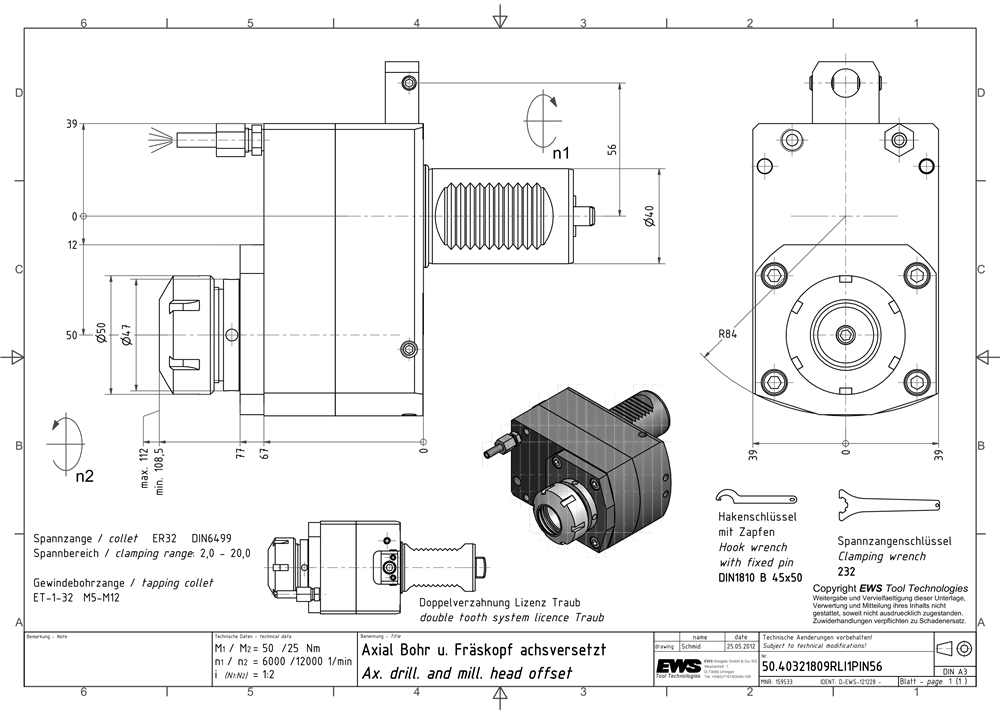

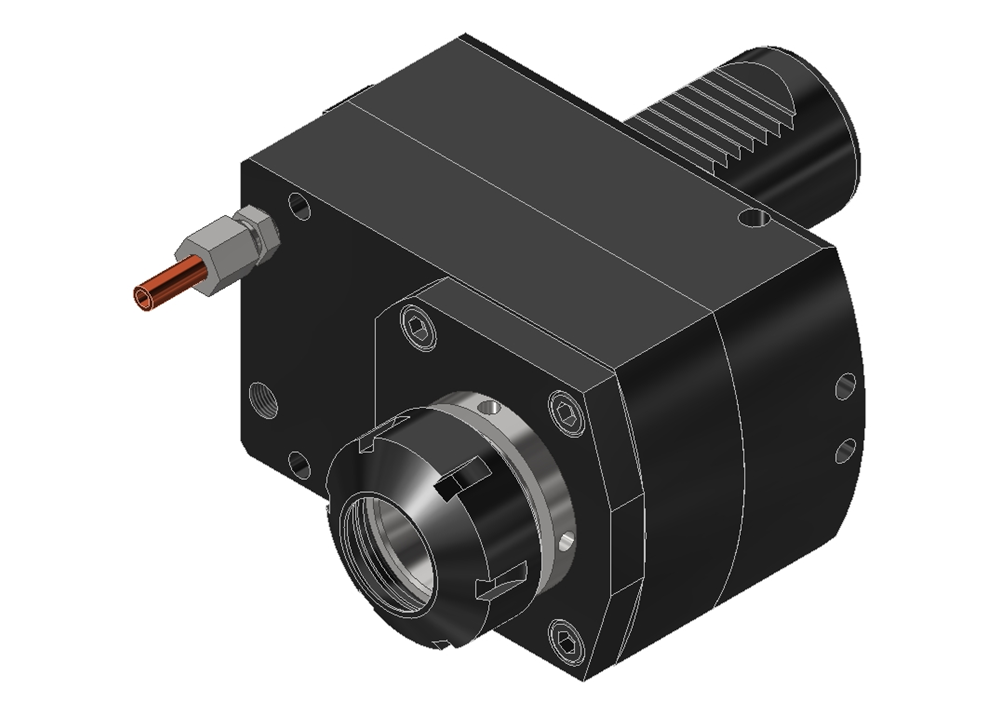

Axial drilling and milling head with offset axes
Premium class tooling system for highest production efficiency — Made in Germany
Collet chuck ER32 DIN6499
- Clamping range Ø3-20
- For collet 320 470E
- When tightening the clamping nut it is essential to counterhold the tool spindle.
- Failure to observe the counter-hold can result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 120 Nm
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Total height (OAH) | 78.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:2 |
| Transmission torque output drive 1 (DINH201) | 25.00 Nm |
| Shank size | VDI40 |
| Interface size | Collet ER32 |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
| Alignment system | Pin (Bar) |
