Артикул: 133074

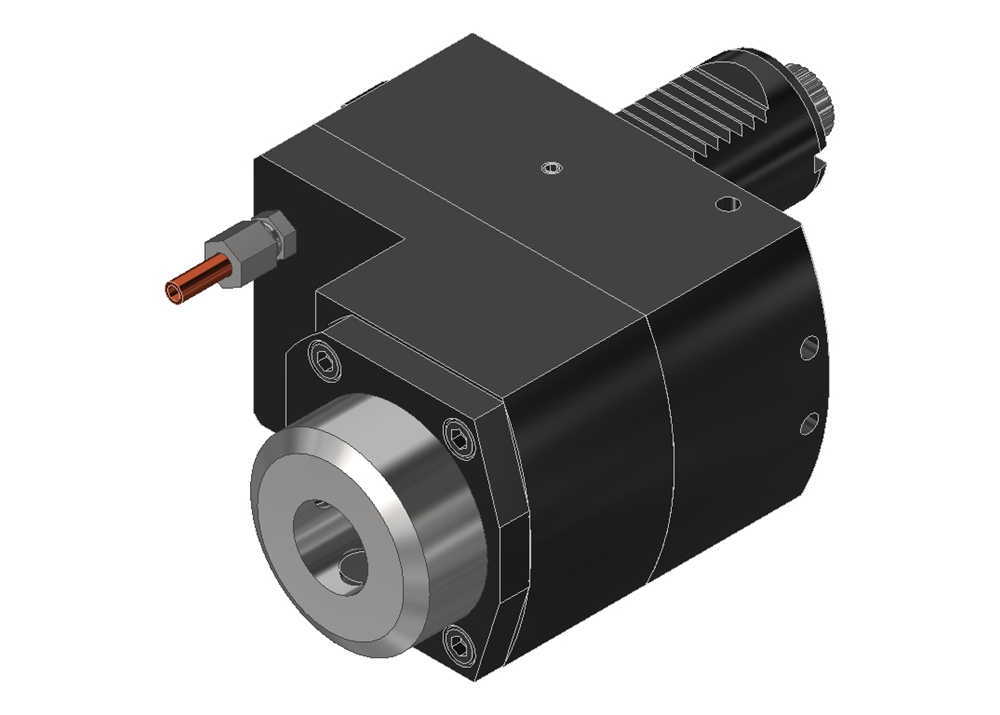

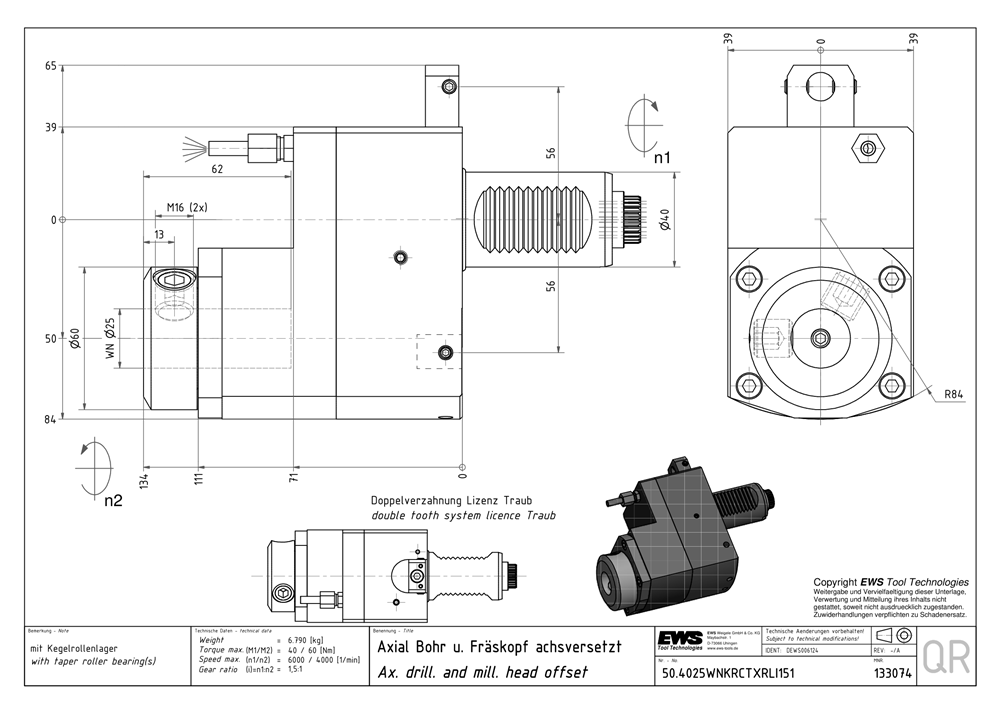

Axial drilling and milling head with offset axes
Premium class tooling system for highest production efficiency — Made in Germany
Tapered roller bearings (KR) — extraordinarily loadable.
- Recommended for machining operations with high torques (e.g.: milling operations with large diameters threading operations interrupted cut machining)
- Increase of tool life
- Reduction of service intervals
- Simultaneous radial and axial loads can be easily absorbed
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Total height (OAH) | 78.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 40.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1 5:1 |
| Transmission torque output drive 1 (DINH201) | 60.00 Nm |
| Shank size | VDI40 |
| Interface size | Weldon Ø 25.0 Whistle Notch Ø 25.0 |
| Coolant intake | Outer cooling |
| Coupling | DIN 5480 |
| Alignment system | Pin (Bar) |
