Артикул: 139732

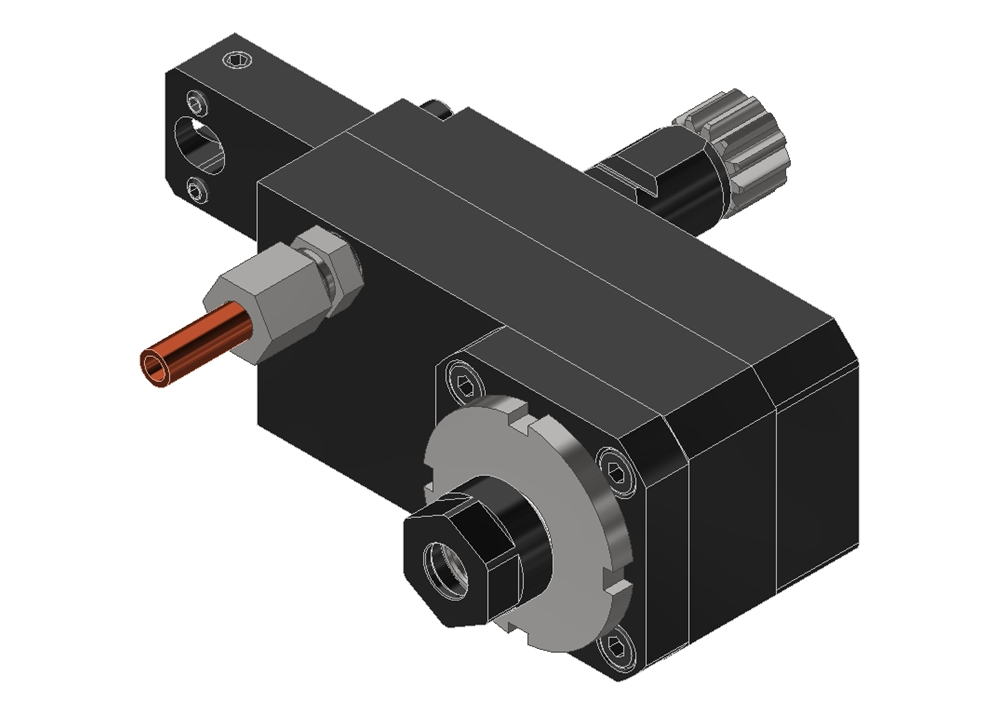

Axial drilling and milling head with offset axes
Premium class tooling system for highest production efficiency — Made in Germany
Collet chuck ER12 DIN6499
- Clamping range Ø1-7
- For collet 120 424E
- When tightening the clamping nut it is essential to counterhold the tool spindle.
- Failure to observe the counterholding may result in damage to the gearbox or drive coupling.
- Maximum tightening torque: 50 Nm
| Total height (OAH) | 42.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 6.30 Nm |
| Max. rotational speed input (RPMX) | 5000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 6.30 Nm |
| Shank size | VDI16 |
| Interface size | Collet ER11 |
| Coolant intake | Outer cooling |
| Coupling | DIN 867 |
| Alignment system | Pin (Bar) |
