Артикул: S03706

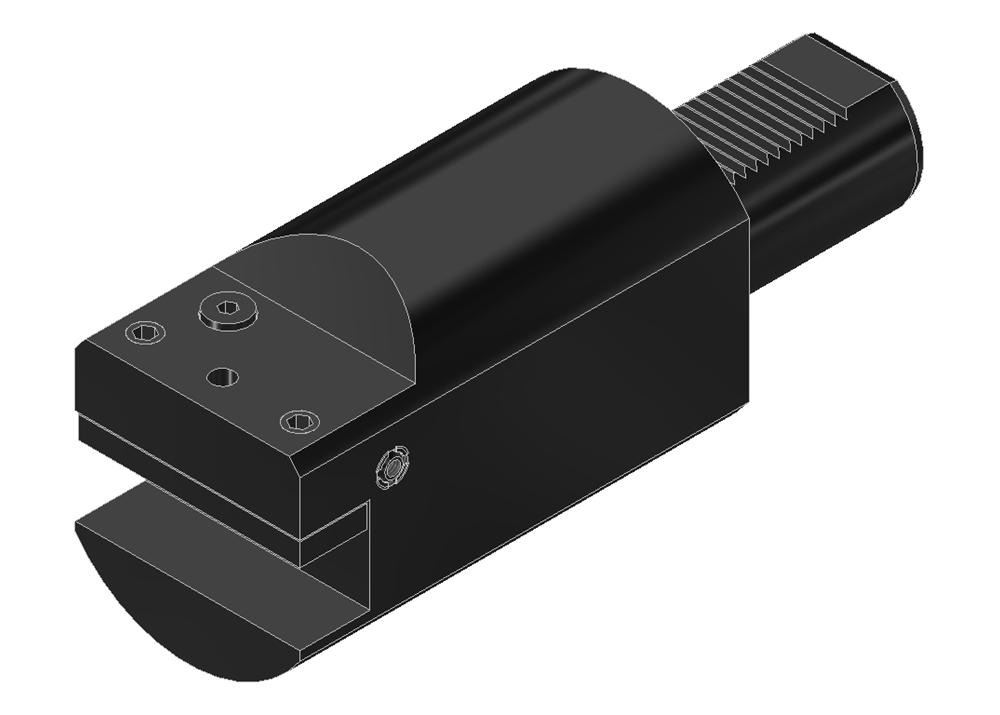

Square cross adapter right form B1
Premium class tooling system for highest production efficiency — Made in Germany
Technical feature
- Tool holder can be used to the main spindle and counter spindle.
- A turning tool can be clamped.
- Pressure plate is not convertible.

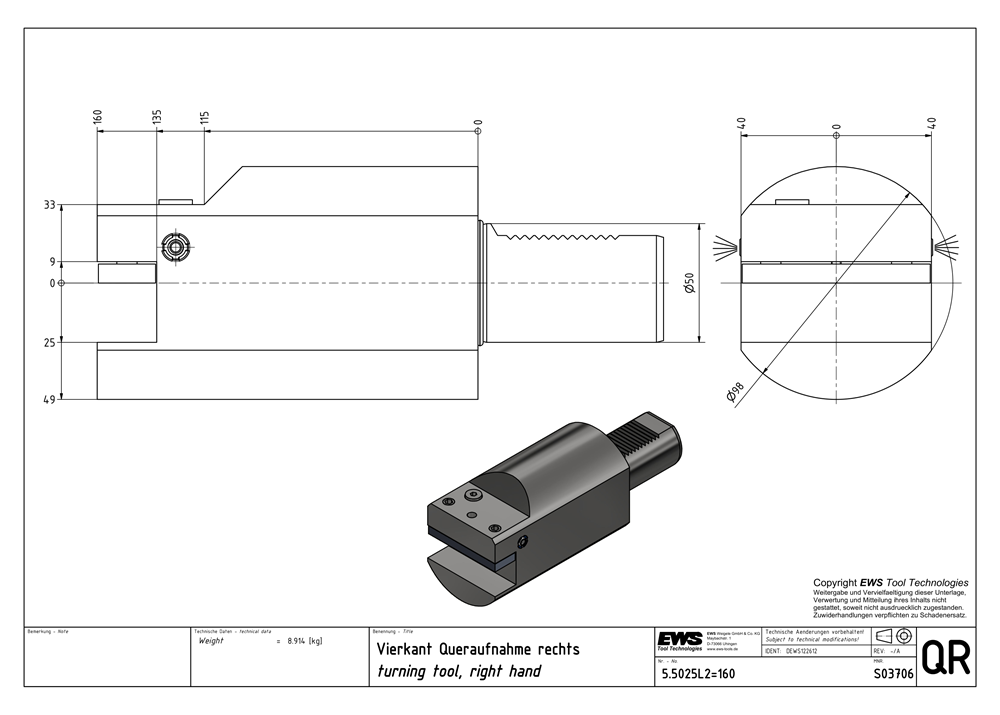

| Cantilever length (LPR) | 160.00 mm |
|---|---|
| Functional length (LF) | 135.00 mm |
| Function height (HF) | 25.00 mm |
| Clamping length max. (LSCX) | 80.00 mm |
| Direction tool interface (HAND) | N |
| Number of holders workpiece side (CCONWS) | 1 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI50 |
| Interface size | Shank 25×25 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
