Артикул: 164600

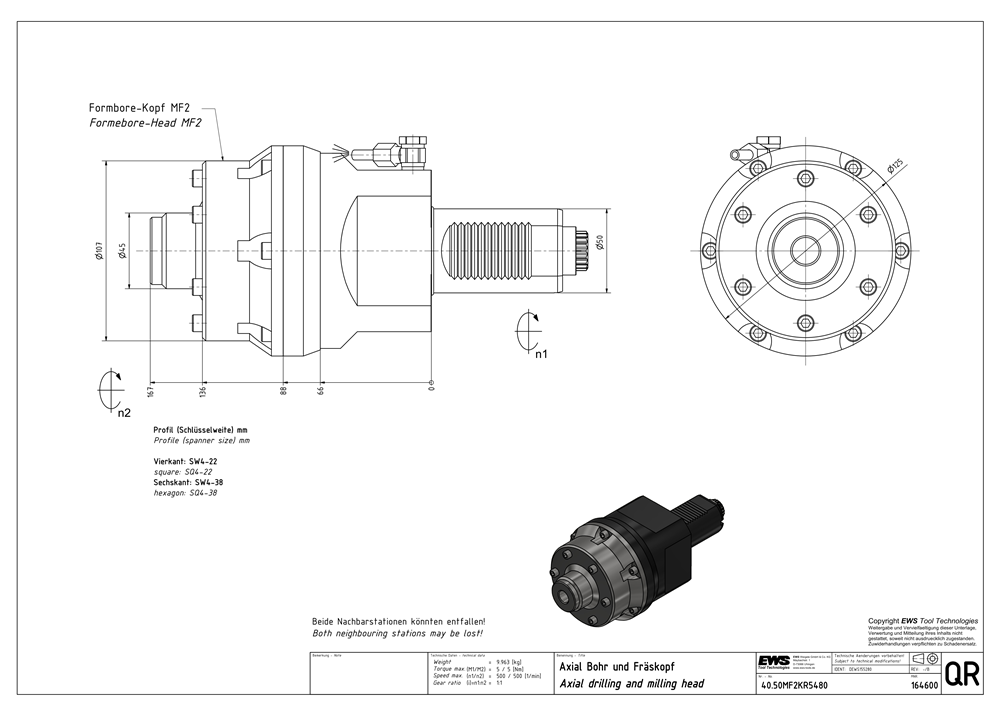

Axial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
EWS.Multiform — process optimization in a class of its own.
With size 2 (MF2), free-forms can be produced on turning-milling or machining centers that were previously not possible. The drive is provided by the turret station for driven tools.
- Profile is generated via the installed cam discs
- Field of application:
- Square 4 — Square 22
- hexagon 4 — hexagon 36
- Octagonal, polygon and free form on request
For further details on the product, handling instructions and specific manufacturing examples, please refer to the operating instructions, which can be downloaded under the Media tab.
Tapered roller bearings (KR) — extraordinarily loadable.
- Recommended for machining operations with high torques (e.g.: milling operations with large diameters, threading operations, interrupted cut machining)
- Increase of tool life
- Reduction of service intervals
- Simultaneous radial and axial loads can be easily absorbed
| Number of holders, workpiece side (CCONWS) | 1 |
|---|---|
| Max. torque (TQX) | 5.00 Nm |
| Max. rotational speed, input (RPMX) | 500 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 5.00 Nm |
| Shank size | VDI50 |
| Coolant intake | Outer cooling |
| Coupling | DIN 5480 |
