Артикул: 156920

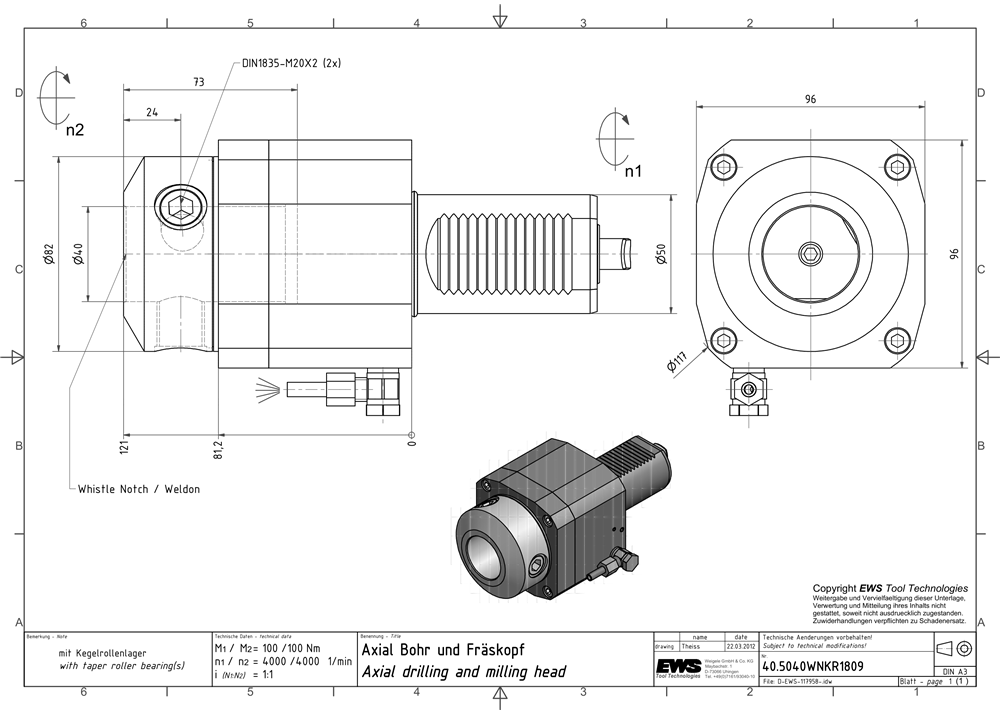

Axial drilling and milling head i = 1:1 Weldon/Whistle Notch Dia. 40 Transmission: 1:1 Torque: 100 / 100 Spindlespeed: 4000 / 4000 Weight: 6.653
| Total height (OAH) | 96.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 100.00 Nm |
| Max. rotational speed input (RPMX) | 4000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 100.00 Nm |
| Shank size | VDI50 |
| Interface size | Weldon Ø 40.0 Whistle Notch Ø 40.0 |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
