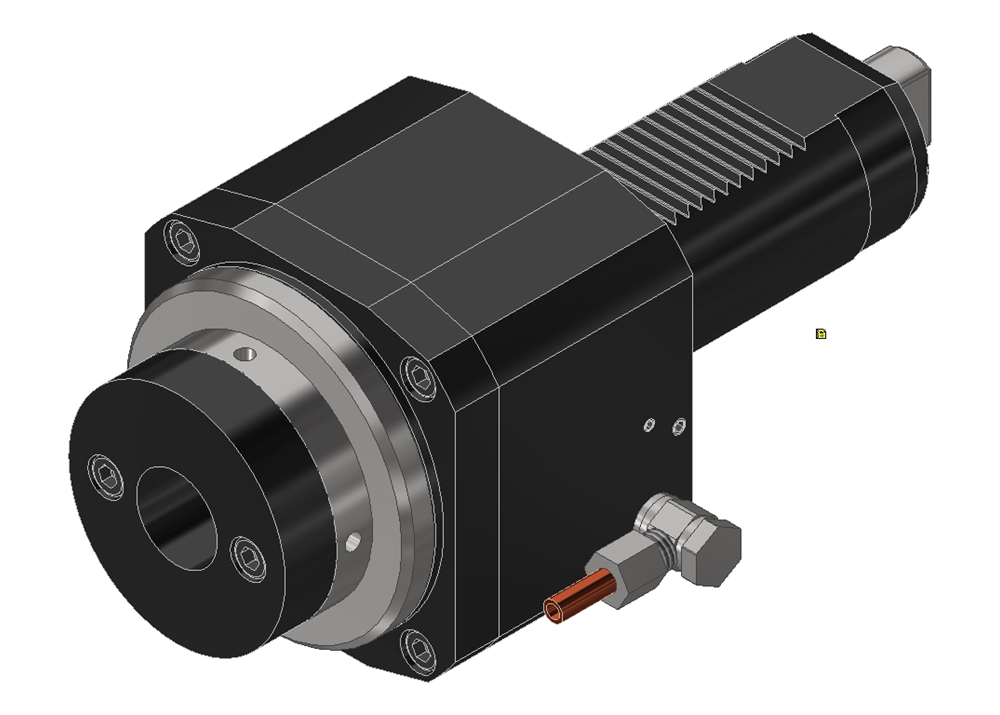

Axial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Hyrodehn interface
- High precision clamping
- Optimum concentricity of the tool cutting edge
- Good damping against vibrations and chatter
- Reducing sleeves available to adjust the clamping diameter
- Clamping of the cutting edge by only one screw
- No additional fixture necessary
- Observe tightening torque
Internal cooling
Equipped with high-quality seal kits that can withstand coolant pressure of up to 25 bar.
- 25 bar maximum coolant pressure
- Not capable of dry running
- Change between external and internal cooling possible
- Coolant must be applied to the tool at all times
| Gesamthöhe (OAH) | 96.00 mm |
|---|---|
| Anzahl Aufnahmen, werkstückseitig (CCONWS) | 1 |
| Max. Drehmoment (TQX) | 100.00 Nm |
| Max. Drehzahl, Eingang (RPMX) | 6000 min-1 |
| Übersetzungsverhältnis (TR) | 1:1 |
| Übertragungsdrehmoment, Abtrieb 1 (DINH201) | 100.00 Nm |
| Schaftgröße | VDI50 |
| Schnittstellengröße | Hydraulic chuck Ø 25.0 |
| Kühlung Aufnahme | Inner and outer cooling |
| Kupplung | Surface coupling |
