Артикул: 175645

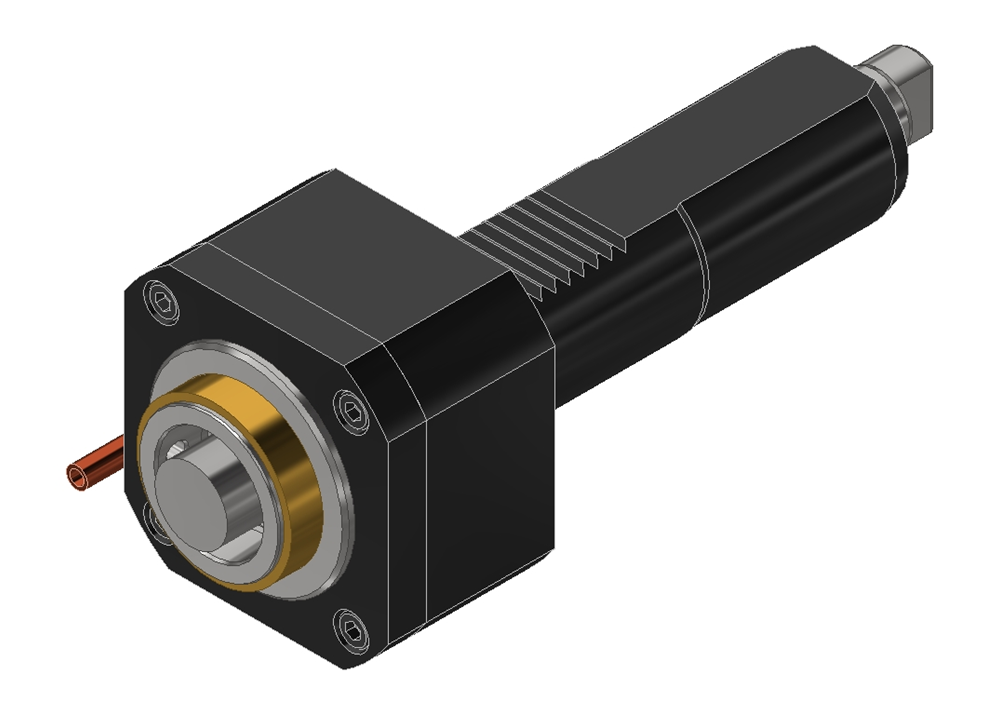

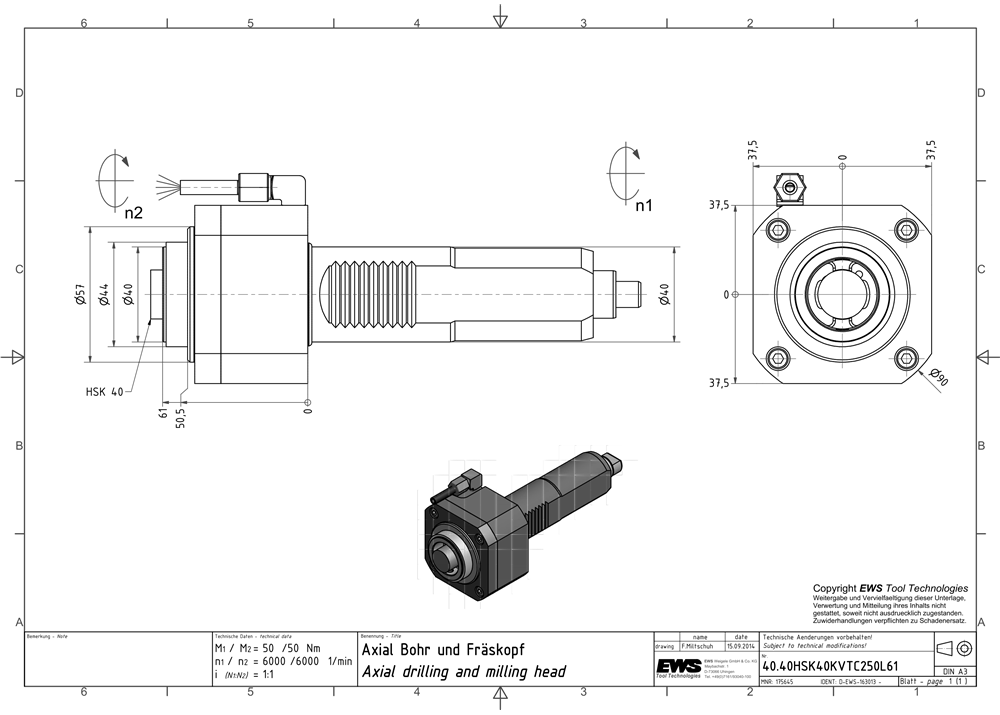

Axial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
| Total height (OAH) | 75.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 6000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 50.00 Nm |
| Shank size | VDI40 |
| Interface size | HSK-A40 |
| Coolant intake | Outer cooling |
| Coupling | Surface coupling |
