Артикул: 128370

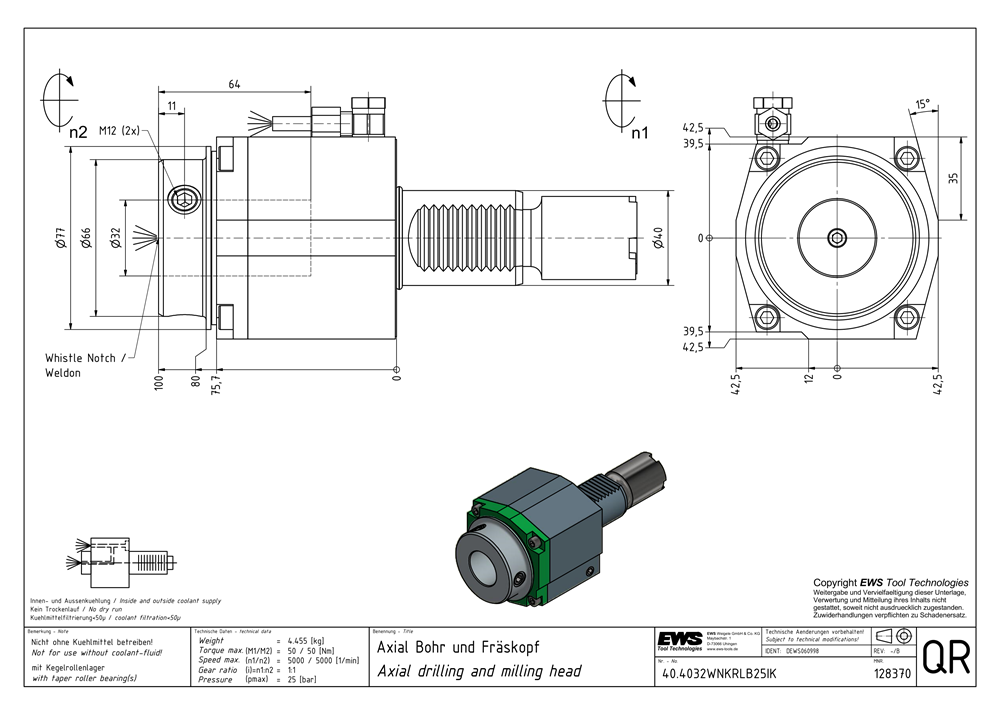

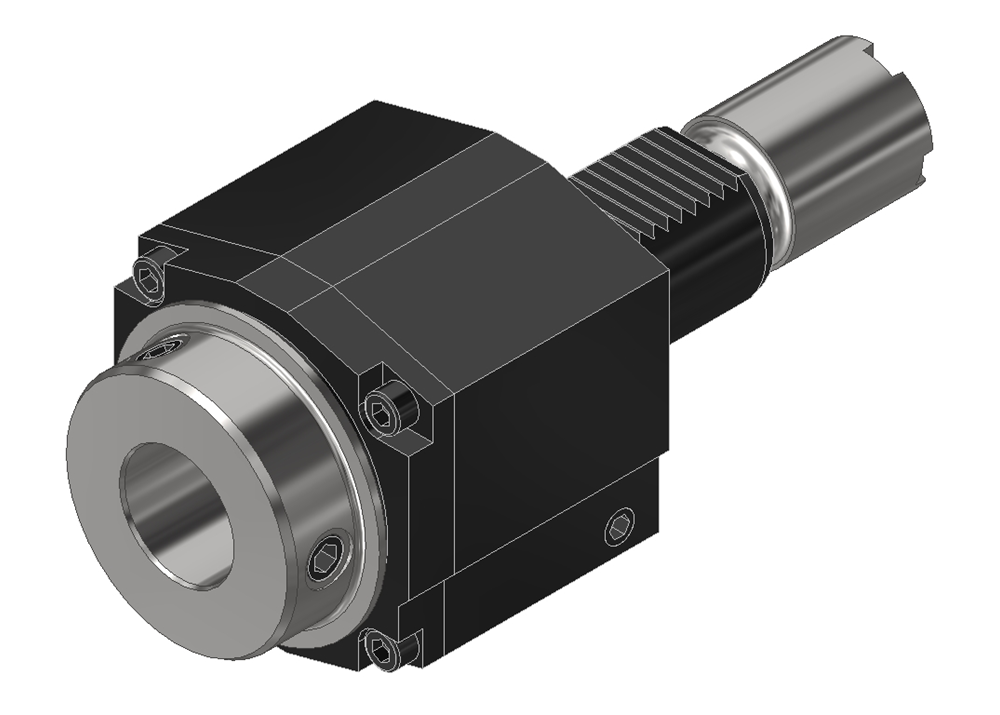

Axial drilling and milling head i = 1:1 Weldon/Whistle Notch Dia. 32 Transmission: 1:1 Torque: 50 / 50 Spindlespeed: 5000 / 5000 Weight: 4.455
| Total height (OAH) | 85.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 5000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 50.00 Nm |
| Shank size | VDI40 |
| Interface size | Weldon Ø 32.0 Whistle Notch Ø 32.0 |
| Coolant intake | Inner and outer cooling |
| Coupling | Claw coupling |
