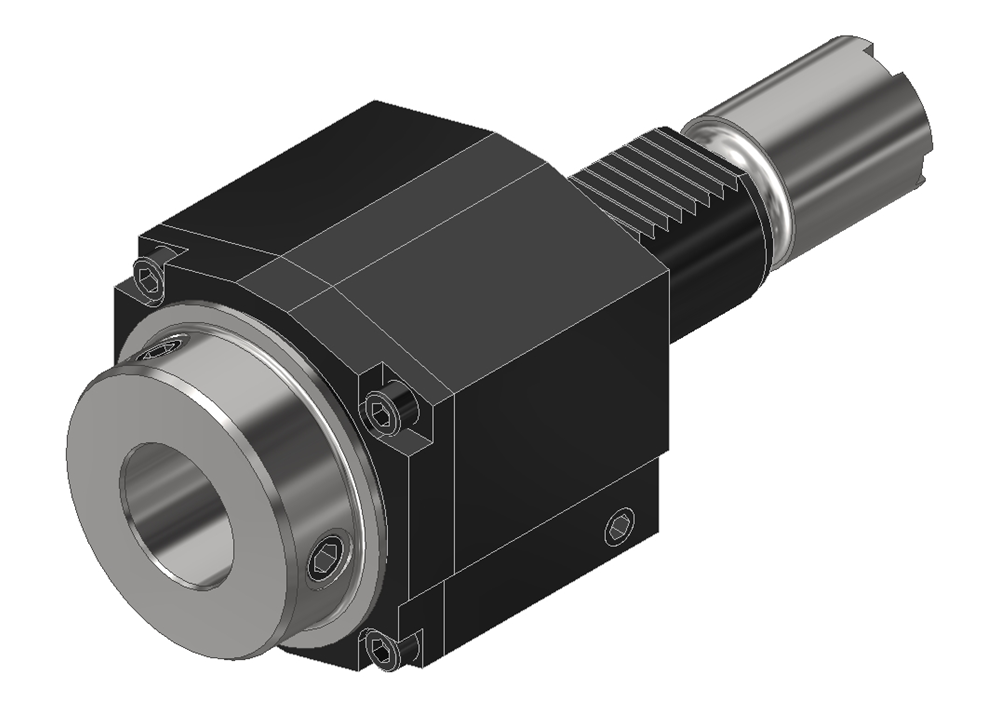

Axial drilling and milling head
Premium class tool system for highest production efficiency — Made in Germany
Tapered roller bearings (KR) — extraordinarily loadable.
- Recommended for machining operations with high torques (e.g.: milling operations with large diameters threading operations interrupted cut machining)
- Increase of tool life
- Reduction of service intervals
- Simultaneous radial and axial loads can be easily absorbed
| Total height (OAH) | 85.00 mm |
|---|---|
| Number of holders workpiece side (CCONWS) | 1 |
| Max. torque (TQX) | 50.00 Nm |
| Max. rotational speed input (RPMX) | 5000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque output drive 1 (DINH201) | 50.00 Nm |
| Shank size | VDI40 |
| Interface size | Weldon Ø 32.0 Whistle Notch Ø 32.0 |
| Coolant intake | Outer cooling |
| Coupling | Claw coupling |
