Артикул: 144582

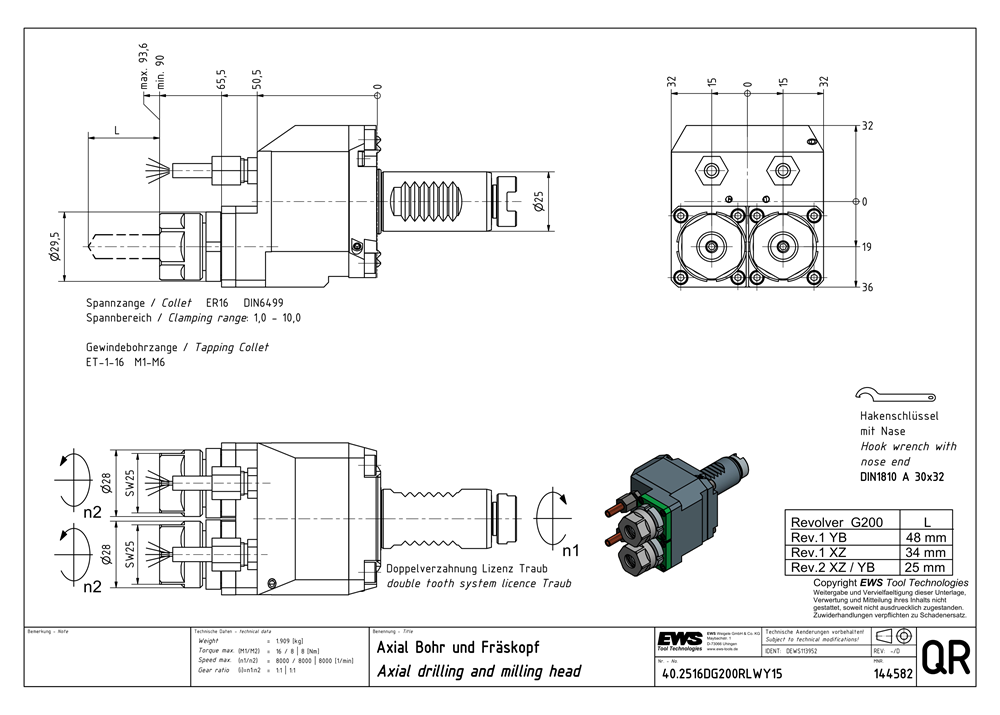

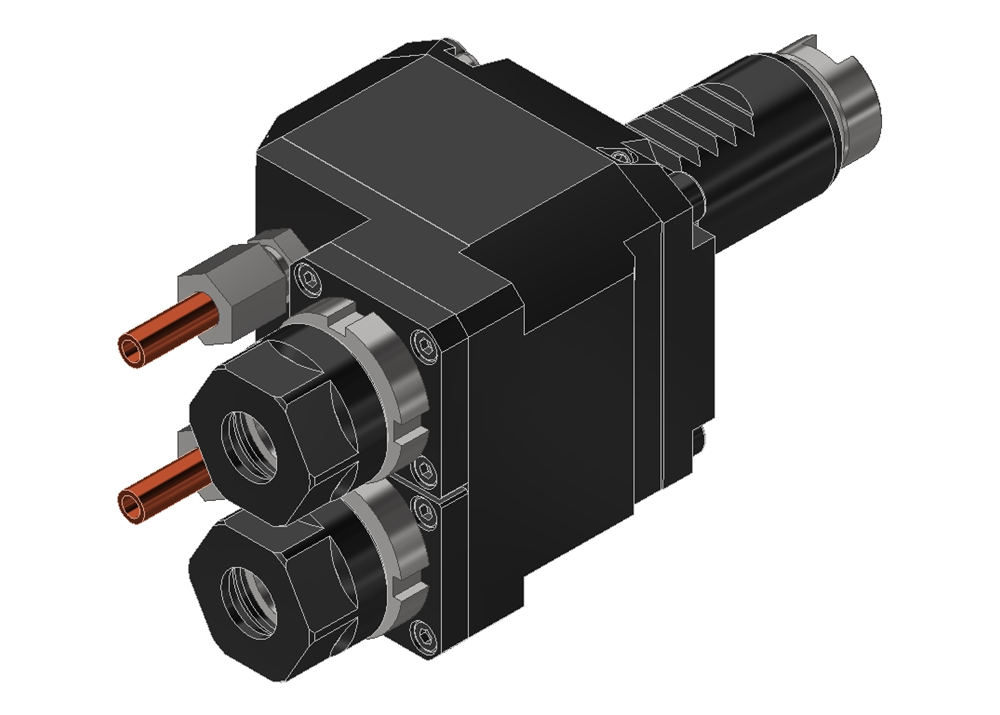

Axial drilling and milling head i = 1:1 Collet RD/ER 16 426 E (1-10) long Transmission: 1:1 Torque: 16 / 8 | 8 Spindlespeed: 8000 / 8000 | 8000 Weight: 1.909
| Number of holders, workpiece side (CCONWS) | 1 |
|---|---|
| Max. torque (TQX) | 16.00 Nm |
| Max. rotational speed, input (RPMX) | 8000 min-1 |
| Transmission relation (TR) | 1:1 |
| Transmission torque, output drive 1 (DINH201) | 8.00 Nm |
| Shank size | VDI25 |
| Interface size | Collet ER16 |
| Coolant intake | Outer cooling |
| Coupling | Groove driver |
| Alignment system | W-serration |
