Артикул: 228286

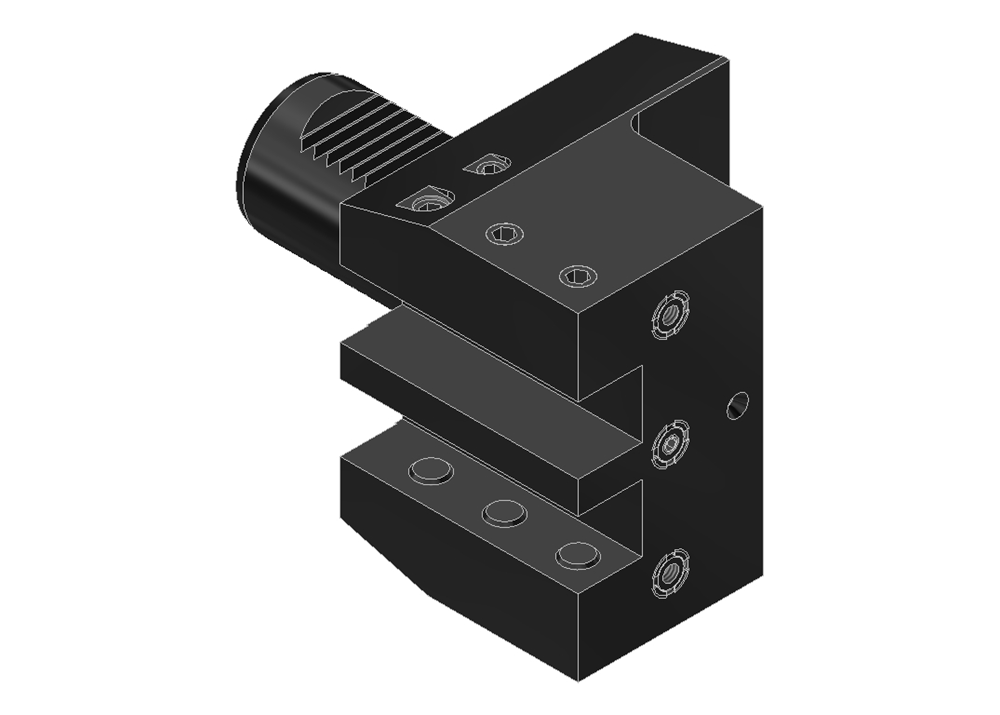

Square longitudinal holder left overhead shape C2
Premium class tooling system for highest production efficiency — Made in Germany

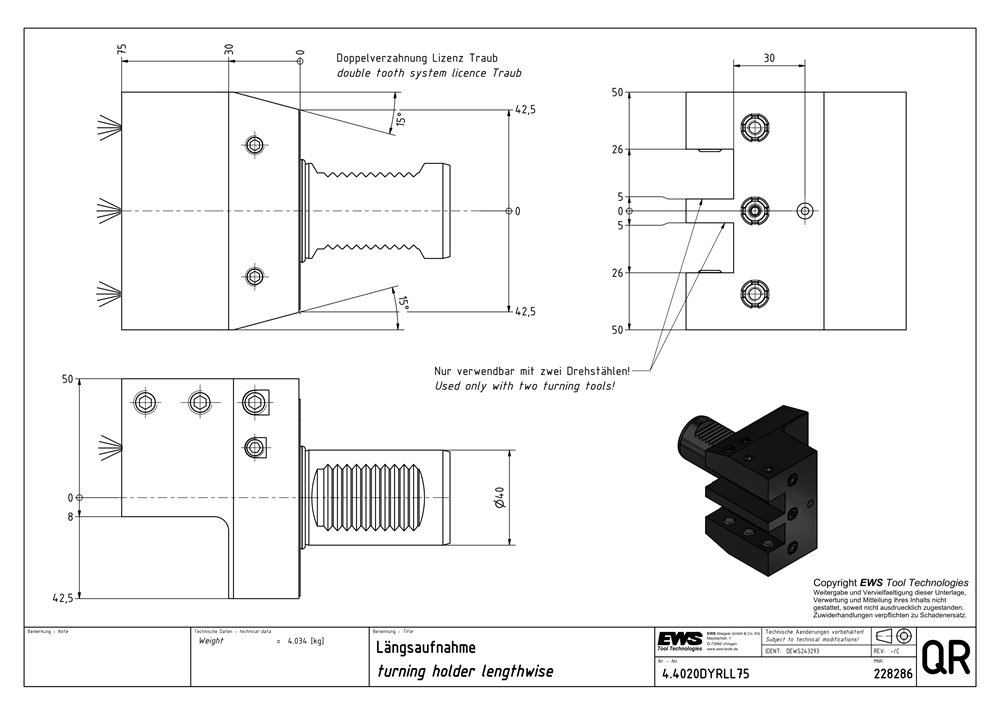

Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
| Cantilever length (LPR) | 75.00 mm |
|---|---|
| Functional length (LF) | 0.00 mm |
| Function height (HF) | 21.00 mm |
| Functional width (WF) | 30.00 mm |
| Clamping length max. (LSCX) | 75.00 mm |
| Direction tool interface (HAND) | L |
| Number of holders workpiece side (CCONWS) | 2 |
| Product group | Tool holders and adapter |
| Product type | Turning tool |
| Shank size | VDI40 |
| Interface size | Shank 20×20 Shank 3/4″x3/4″ |
| Convertible | No |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 0° |
