Артикул: S02558

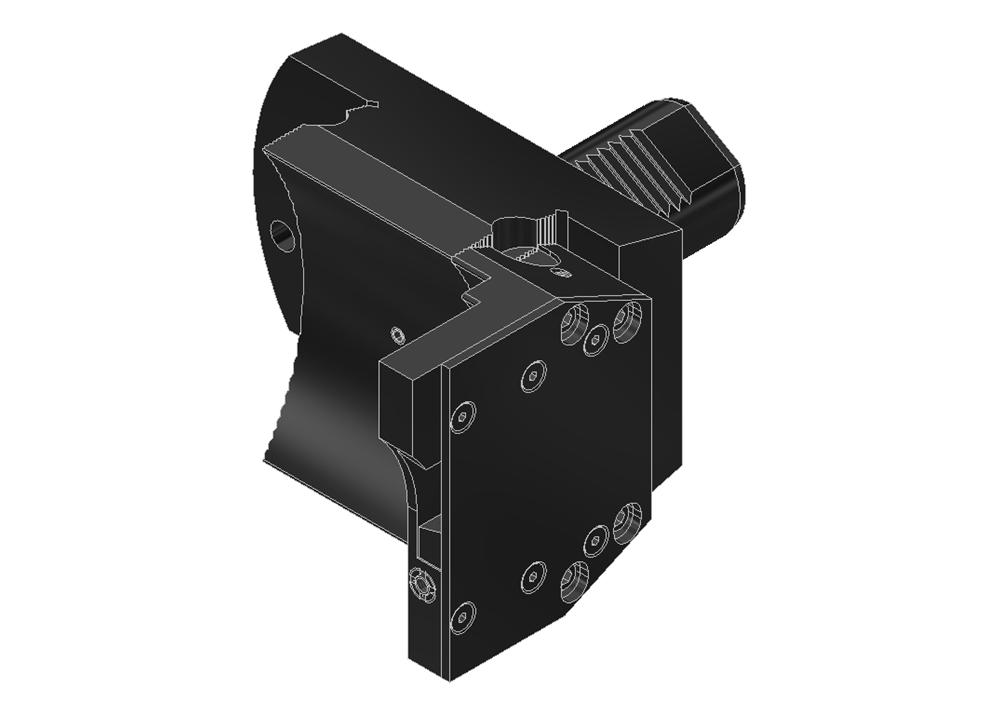

Cut-off holder
Premium class tooling system for highest production efficiency — Made in Germany
| Cantilever length (LPR) | 110.50 mm |
|---|---|
| Functional length (LF) | 25.50 mm |
| Functional width (WF) | 57.98 mm |
| Product group | Tool holders and adapter |
| Product type | Cut off tool holder |
| Shank size | VDI40 shaft rotated 30° |
| Interface size | Parting off blade 26 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 0° |
| Alignment system | Pin |
