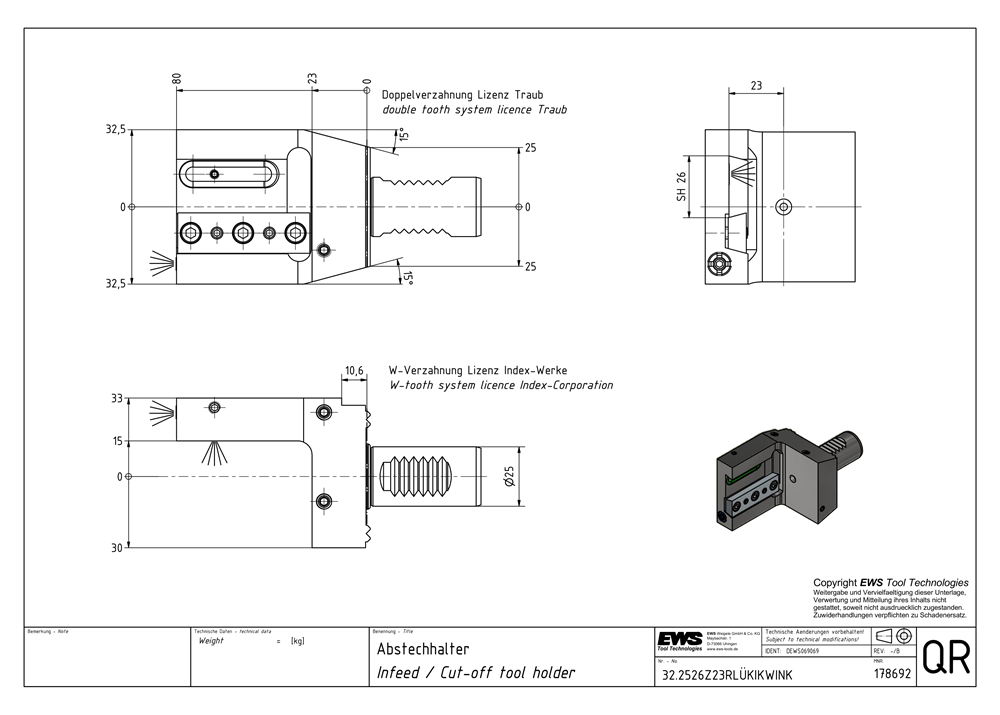

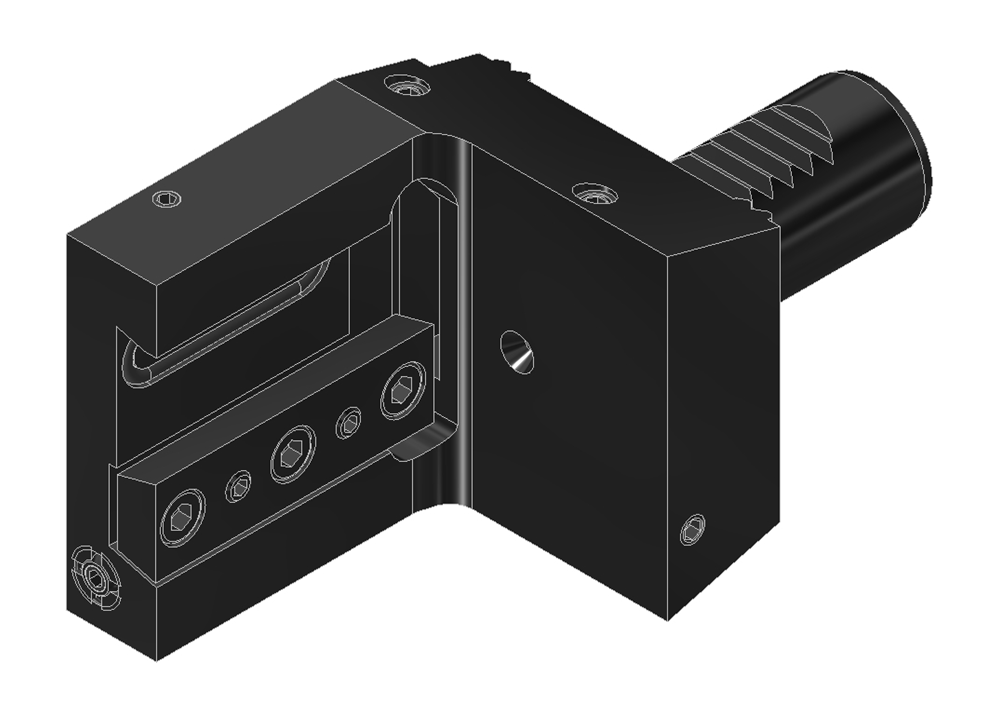

32.2526Z23RLÜKIKWINK — Infeed / Cut-off tool holder, Size 26, [050STAT_04_Z23], double ser., overhead, Internal coolant supply, W — seration (License INDEX ), Internal edge, right

Артикул: 178692

Infeed tool holder
SH 26

Weight: 0.000


Документация

Cantilever length (LPR) 80.00 mm
Functional length (LF) 0.00 mm
Functional width (WF) 23.00 mm
Product group Tool holders and adapter
Product type Cut off tool holder
Shank size VDI25
Interface size Parting off blade 26
Convertible No
Rotatable main &amp’ counter spindle yes
Tool orientation
Alignment system W-serration

Article number178692
