Артикул: 170771

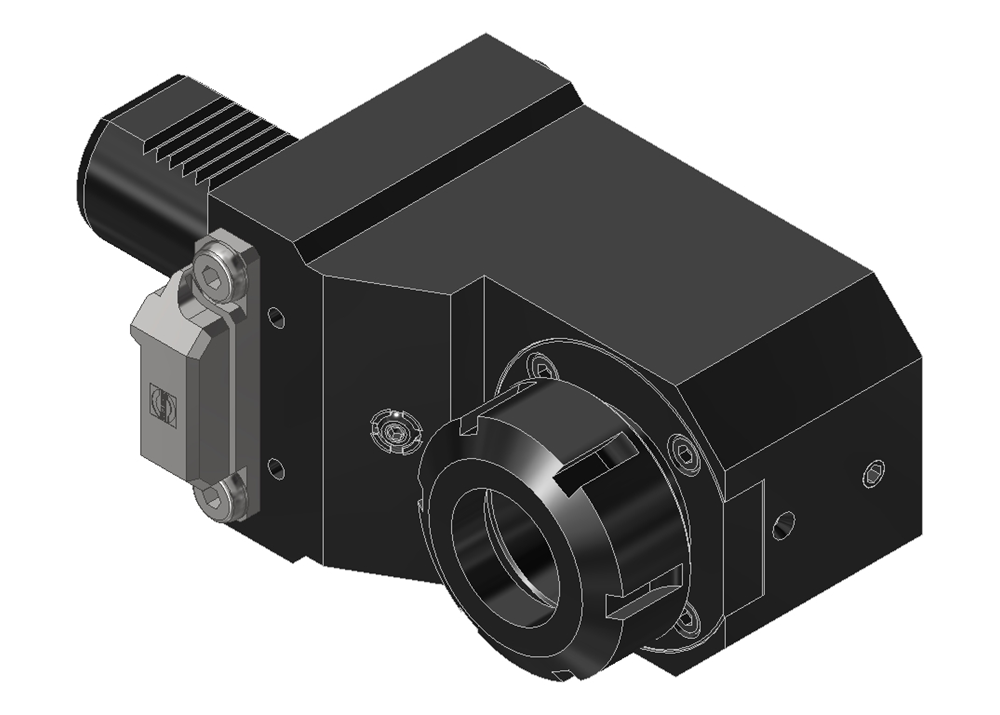

Tool holder for collets
Premium class tooling system for highest production efficiency — Made in Germany
Collet chuck ER40 DIN6499
- Clamping range Ø4-26
- For collet 400 472E
- Maximum tightening torque: 160 Nm
Trifix© (TF) alignment system
- Tool completely preset
- Faster setup of your machine
- Repeatability < 6µm at 200mm throat depth
- Positioning accuracy of 0.01mm from one station to another
Technical feature
- Cover not convertible.
- It is not possible to change the machining direction with the help of the cover between the main spindle or the counter spindle.

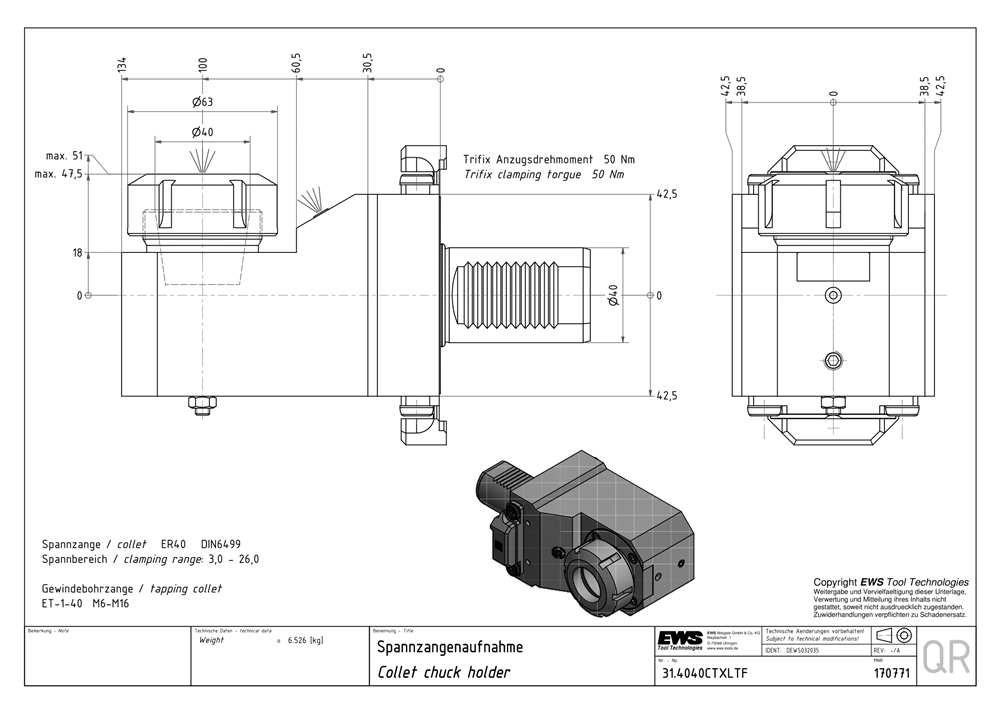

| Cantilever length (LPR) | 134.00 mm |
|---|---|
| Functional length (LF) | 100.00 mm |
| Functional width (WF) | 51.00 mm |
| Product group | Tool holders and adapter |
| Product type | Collet holder |
| Shank size | VDI40 |
| Interface size | ER40 |
| Convertible | No |
| Rotatable main &’ counter spindle | No |
| Tool orientation | 90° |
| Alignment system | Trifix |
