Артикул: 186406

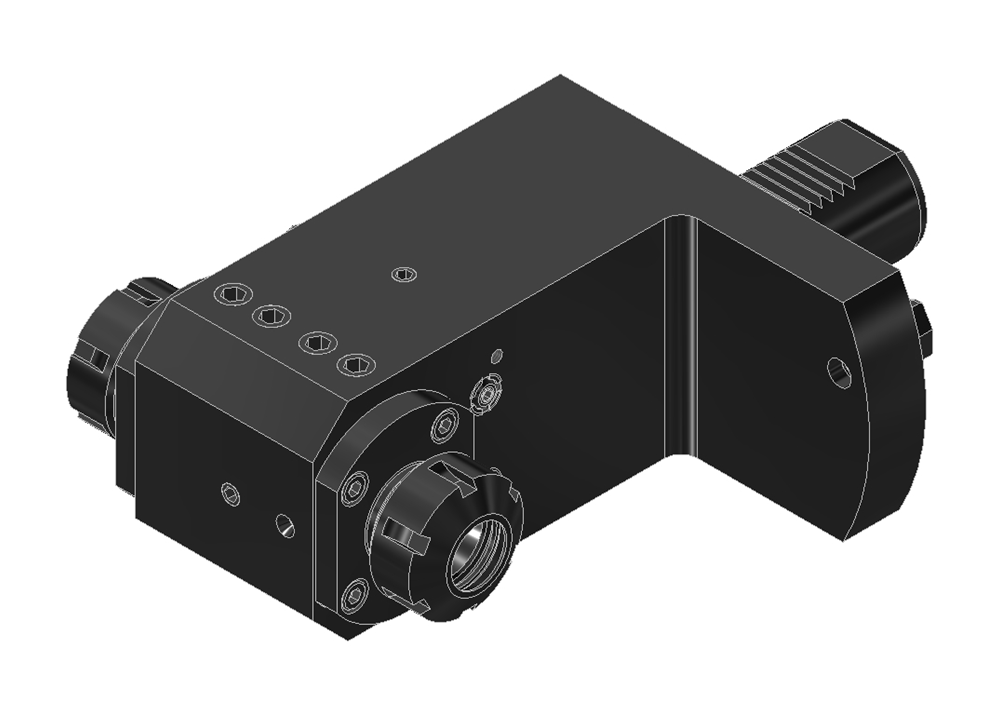

Tool holder for collets
Premium class tooling system for highest production efficiency — Made in Germany
Collet chuck ER25 DIN6499
- Clamping range Ø2-16
- For collet 250 430E
- Maximum tightening torque: 90 Nm
| Cantilever length (LPR) | 156.00 mm |
|---|---|
| Functional length (LF) | 130.00 mm |
| Functional width (WF) | 45.00 mm |
| Product group | Tool holders and adapter |
| Product type | Collet holder |
| Shank size | VDI40 |
| Interface size | Collet ER25 |
| Tool orientation | 90° |
| Alignment system | Pin |
