Артикул: 189681

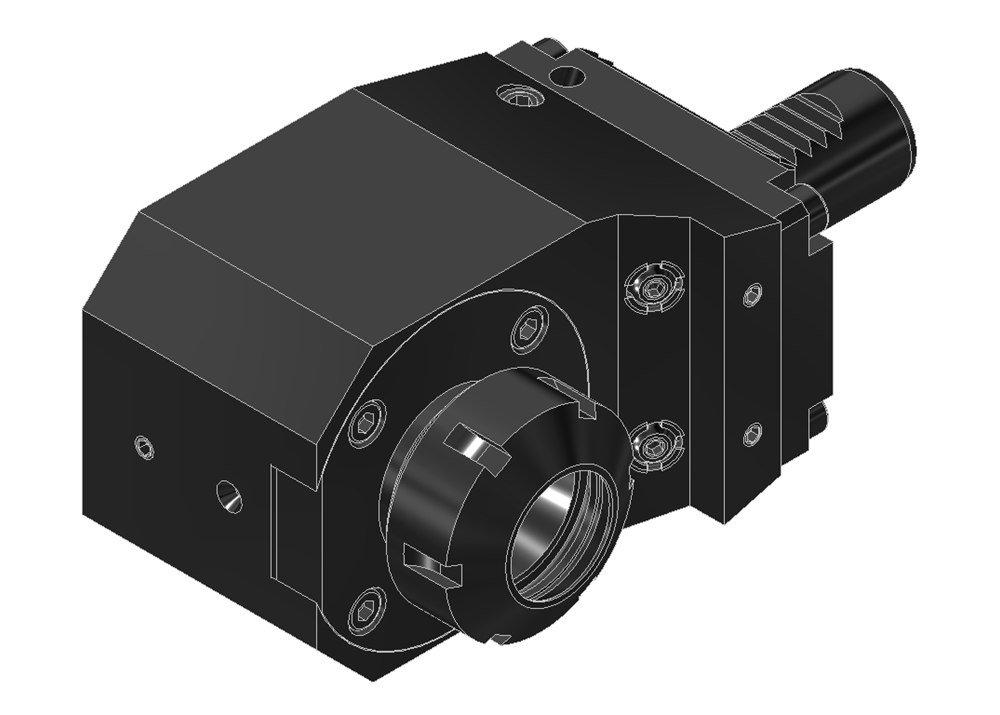

Tool holder for collets
Premium class tooling system for highest production efficiency — Made in Germany
Collet chuck ER32 DIN6499
- Clamping range Ø3-20
- For collet 320 470E
- Maximum tightening torque: 120 Nm
Double toothing (Traub license)
- VDI shank double toothed.
- Tool holder can be rotated 180°.
- Note: Rotatability may be restricted by alignment systems (e.g. Trifix).
Technical feature
- Cover not convertible.
- It is not possible to change the machining direction with the help of the cover between the main spindle or the counter spindle.

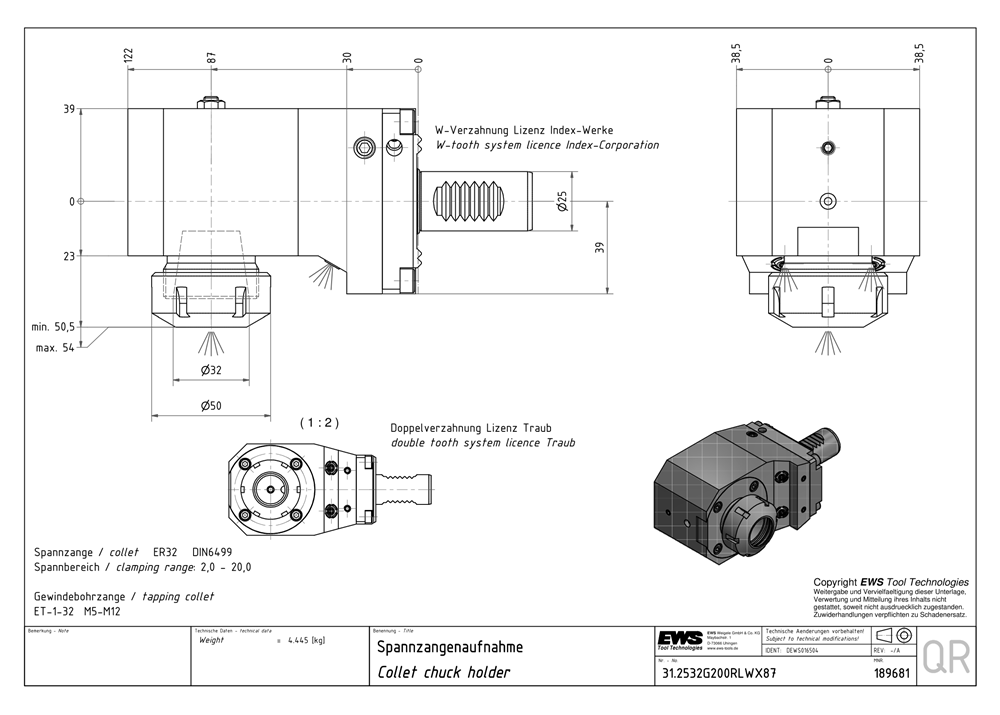

| Cantilever length (LPR) | 122.00 mm |
|---|---|
| Functional length (LF) | 87.00 mm |
| Functional width (WF) | 53.00 mm |
| Product group | Tool holders and adapter |
| Product type | Collet holder |
| Shank size | VDI25 |
| Interface size | Collet ER32 |
| Convertible | No |
| Rotatable main &’ counter spindle | yes |
| Tool orientation | 90° |
| Alignment system | W-serration |
