Артикул: 183028
Tool holder for collets
Premium class tooling system for highest production efficiency — Made in Germany

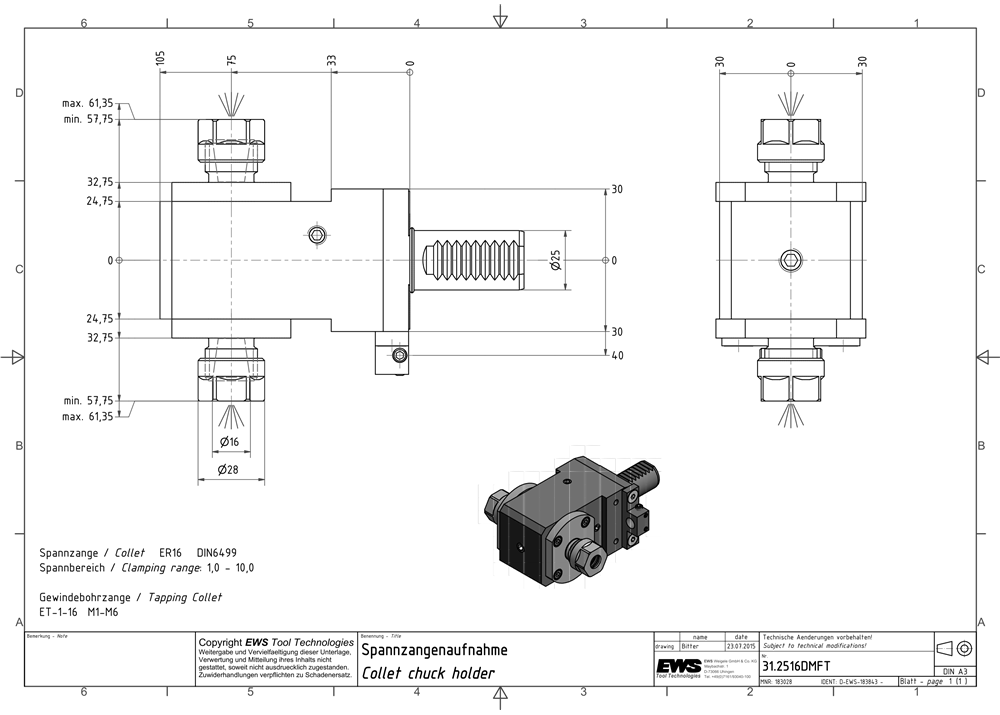

Collet chuck ER16 DIN6499
- Clamping range Ø1-10
- For collet 160 426E
- Maximum tightening torque: 50 Nm
| Cantilever length (LPR) | 105.00 mm |
|---|---|
| Functional length (LF) | 75.00 mm |
| Functional width (WF) | 59.25 mm |
| Product group | Tool holders and adapter |
| Product type | Collet holder |
| Shank size | VDI25 |
| Interface size | Collet ER16 |
| Tool orientation | 90° |
| Alignment system | Pin (Bar) |
