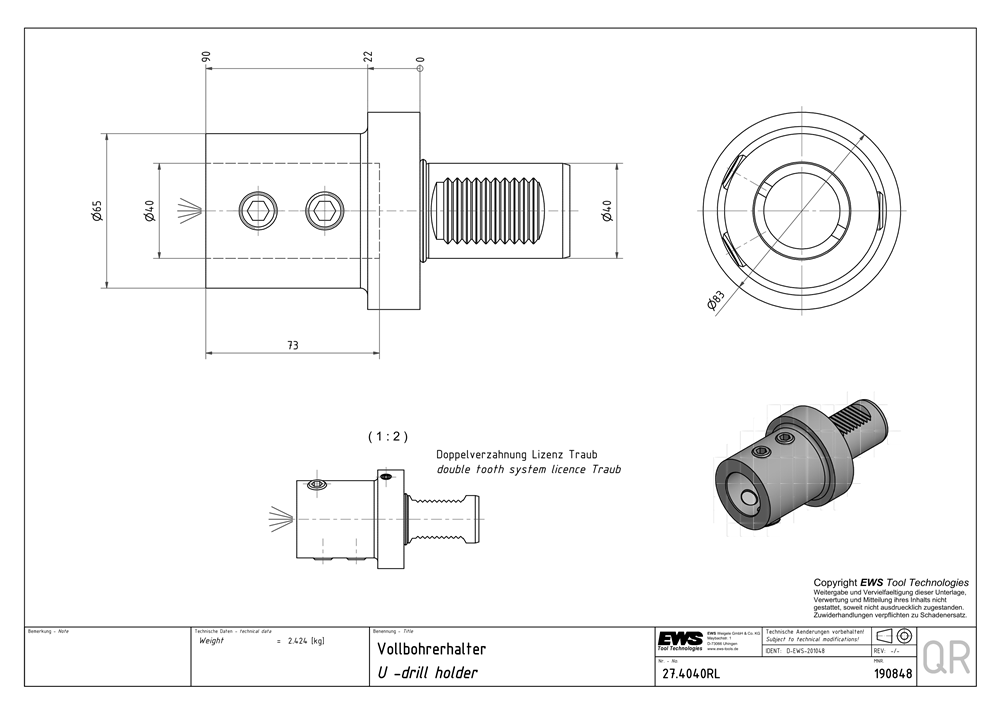

27.4040RL — Round shank adaptor Shank- Ø40 hole-Ø 40 mm

Артикул: 190848

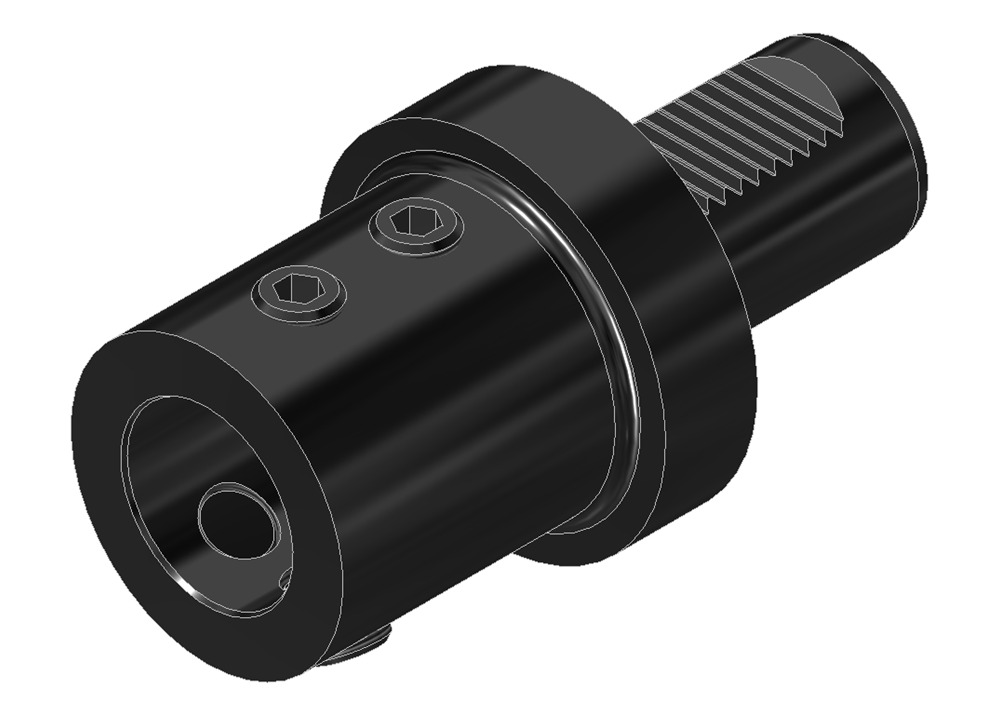

Solid drill holder

Premium class tooling system for highest production efficiency — Made in Germany

Double toothing (Traub license)

  • VDI shank double toothed.
  • Tool holder can be rotated 180°.
  • Note: Rotatability may be restricted by alignment systems (e.g. Trifix).


Документация

Body diameter 1 (BD1) 65.00 mm
Cantilever length (LPR) 90.00 mm
Functional length (LF) 17.00 mm
Mounting diameter min. (DCONN) 40.00 mm
Clamping length max. (LSCX) 73.00 mm
Product group Tool holders and adapter
Product type Cylindrical tool holder
Shank size VDI40
Interface size Weldon Ø 40.0
Whistle Notch Ø 40.0
Rotatable main &amp’ counter spindle No
Tool orientation

Article number190848
Product weight1 KG
